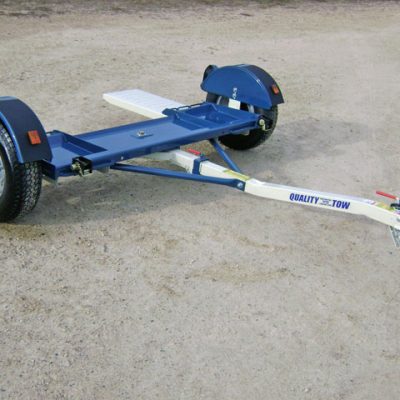

Quality Tow H.D. Car Dolly

The H.D. car dolly is top of the line for vehicle towing. It is a perfect option to transport vehicles.

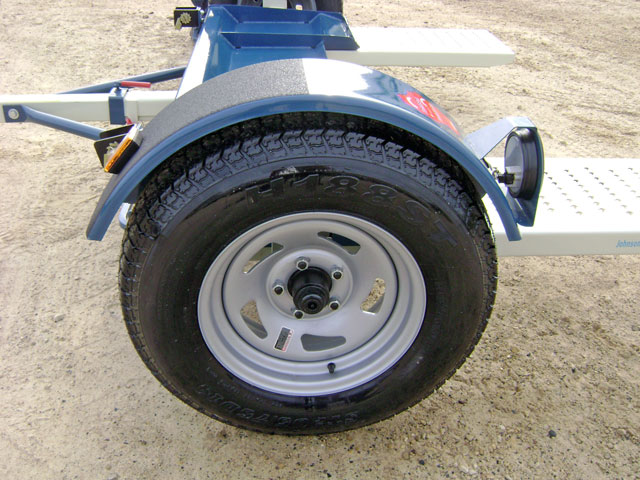

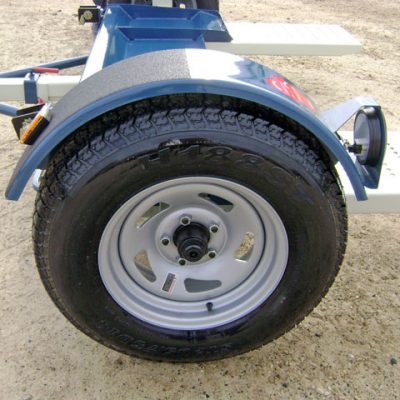

Radial Tires

EZ Lube Hubs

Factory Wiring Harness

Powder Coat Finish

car dolly

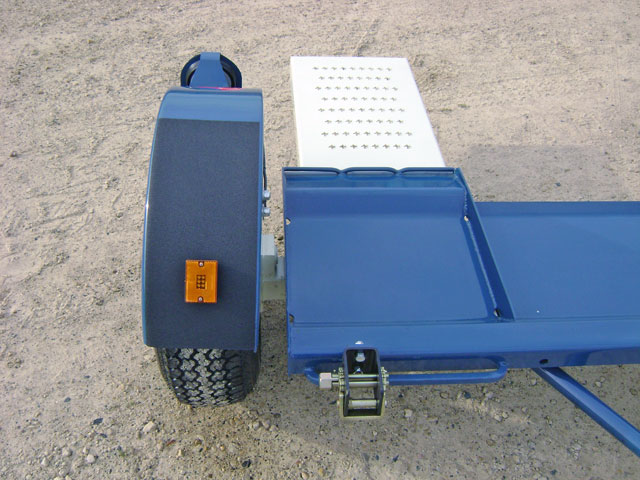

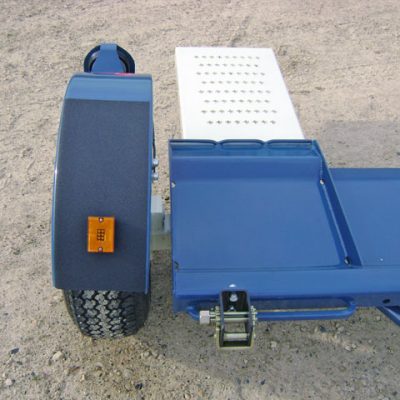

Steel Fenders

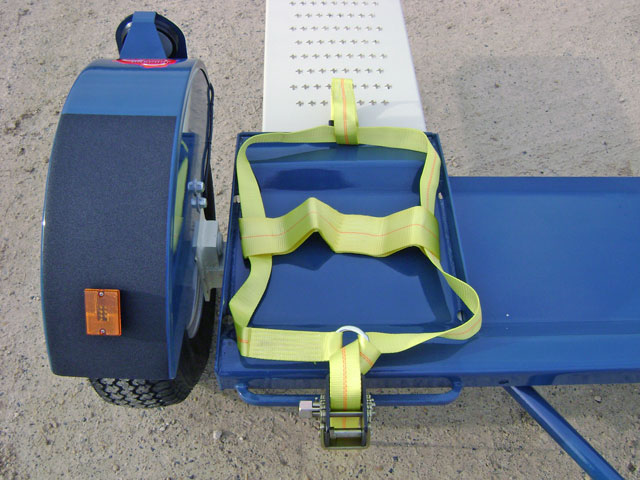

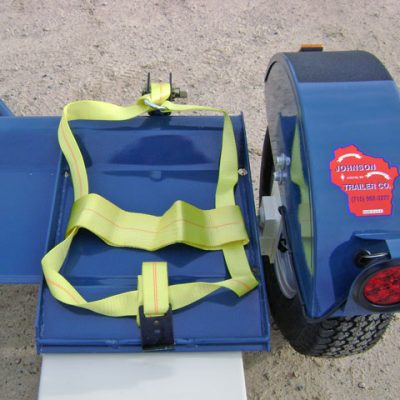

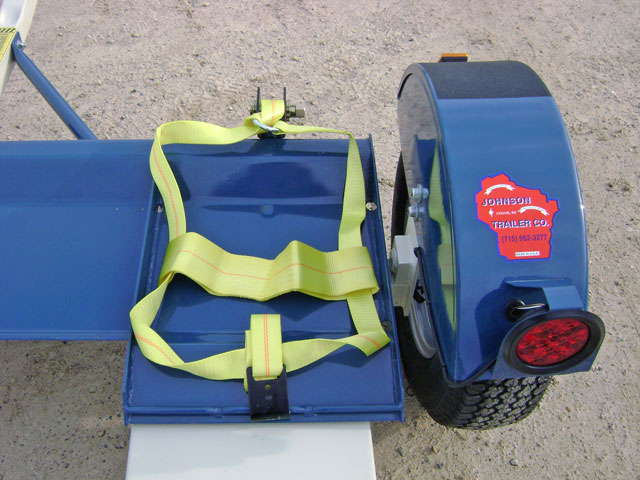

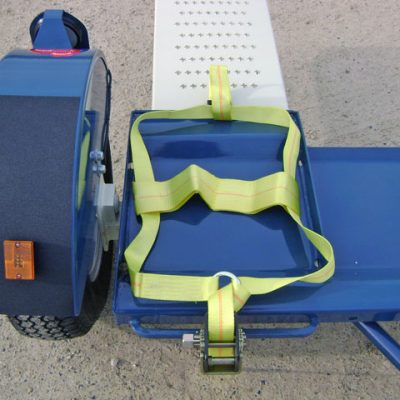

Rachet & Nylon Harness

Electric Brakes

Surge Hydraulic Brakes

H.D. Car Dolly Specifications
Towed vehicle tread width (Min. – Max.) 44″ – 80″
Maximum overall width at front doors for vehicle being towed 78″
Overall width 102″
Overall length 127″
Height at fender 28″
Ground clearance 6″
Gross vehicle weight rating 2,999 lbs.
Empty weight 570 lbs.
Payload capacity 2,400 lbs.
Maximum weight of vehicle to be towed 5,000 lbs.
Tire size ST 185/R13 8 ply
Ball coupler size 2″

Models & Prices
Bed Size & Prices

ST80TD (No Brakes): $1,655
NOTE! Wiring harness is pre wired for electric brakes and axle has brake mounting flange so electric brakes can be installed at a later date if so desired.
ST80TD-EB (w/Electric brakes and safety breakaway): $1,905
ST80TD-SB (w/Surge hydraulic disc brakes): $2,230

Some Options
 Spare tire & wheel: $150
Extra pair of adjustable nylon wheel straps: $85
Pair of ramp extensions: $150 see below

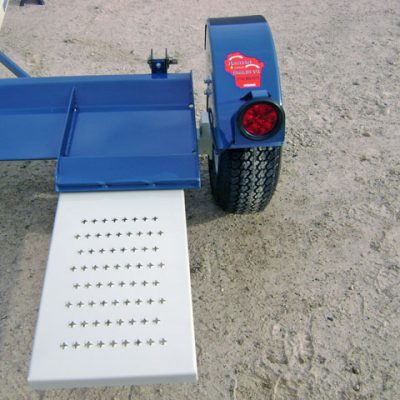

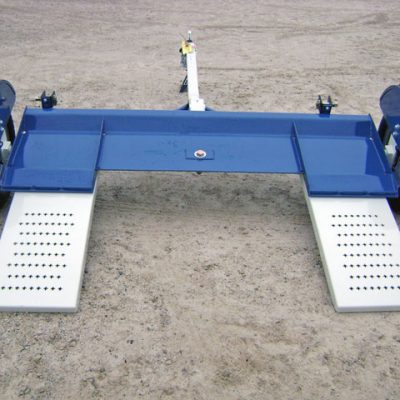

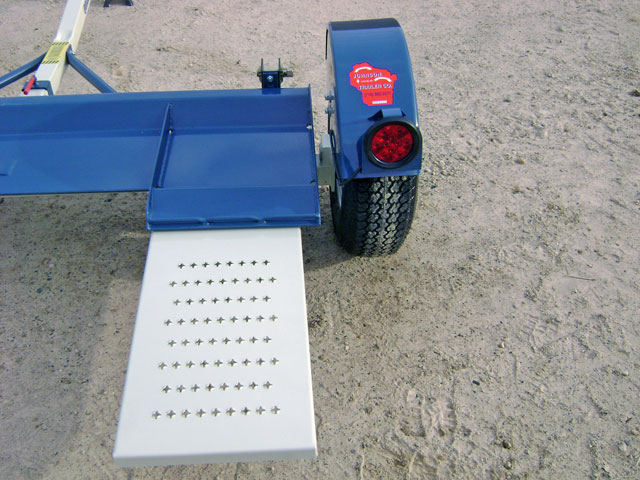

Ramp ExtensionsA pair of ramp extensions designed for vehicles that ride close to the ground to facilitate loading onto a tow dolly.
DSC03893
Trailer may be shown with optional equipment.
Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
