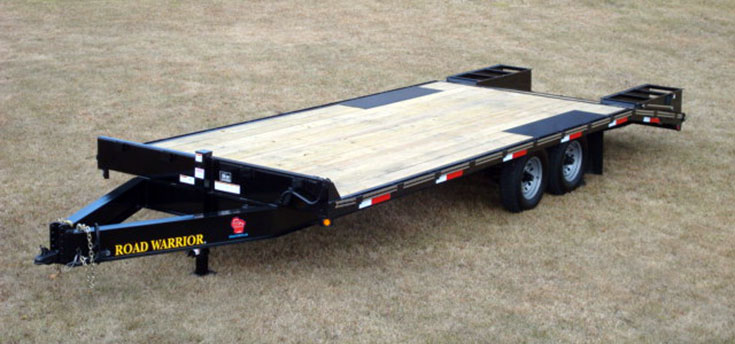

7 Ton Deckover Trailer

 Bed over tires with no fenders to restrict some uses.

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

10 Inch I-Beam Frame

Trailer may be shown with optional equipment.

Road Warrior Trailer

Specifications – 7 Ton Deckover Flatbed
Weight Rating: 14,000 LBS. GVWR w/evenly distributed load

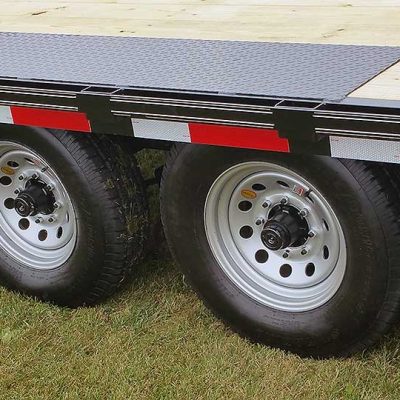

Axles:  2 – 7,000# electric brakes, w/ez-lube, safety breakaway, w/charger
Suspension: 6 leaf slipper springs

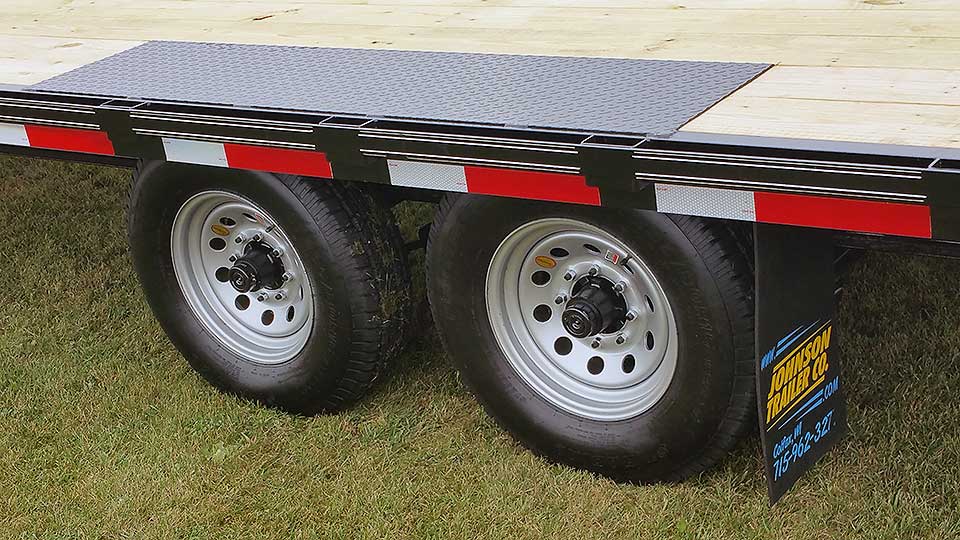

Tires & Wheels: ST 235/80 R16 load range E radial tires, (3520 # rated), 8 X 6 1/2 bolt pattern silver mod wheels

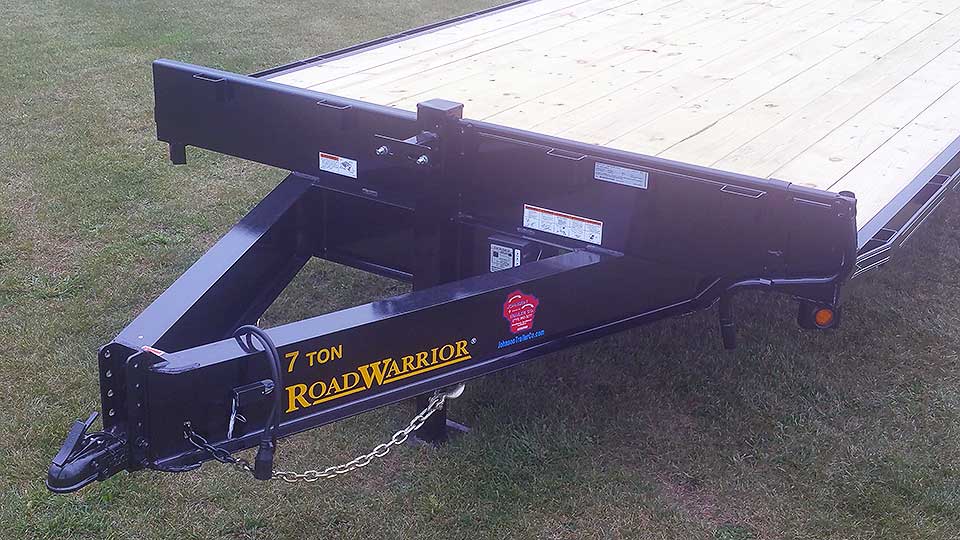

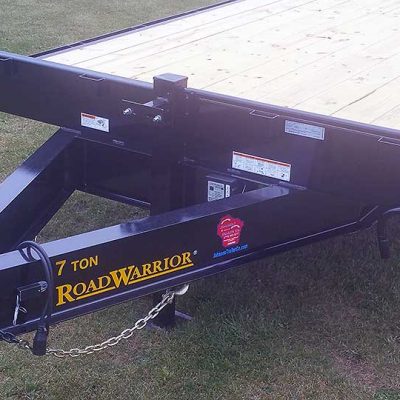

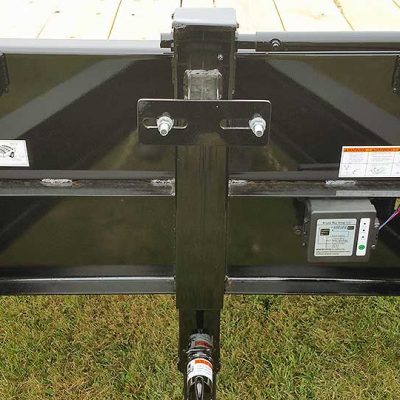

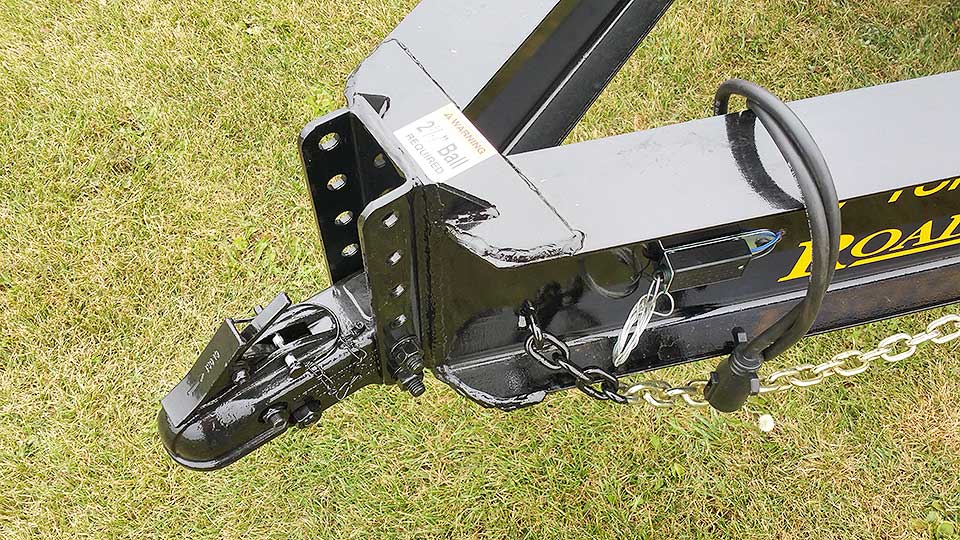

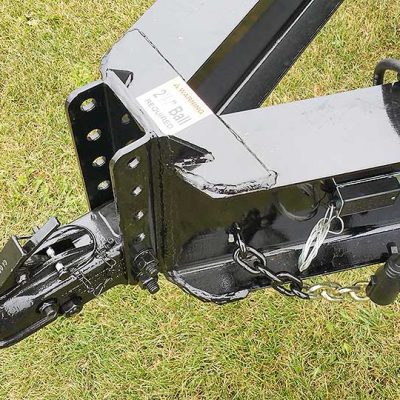

Hitch: Adjustable 2 5/16 ball or pintle, H.D. safety chains

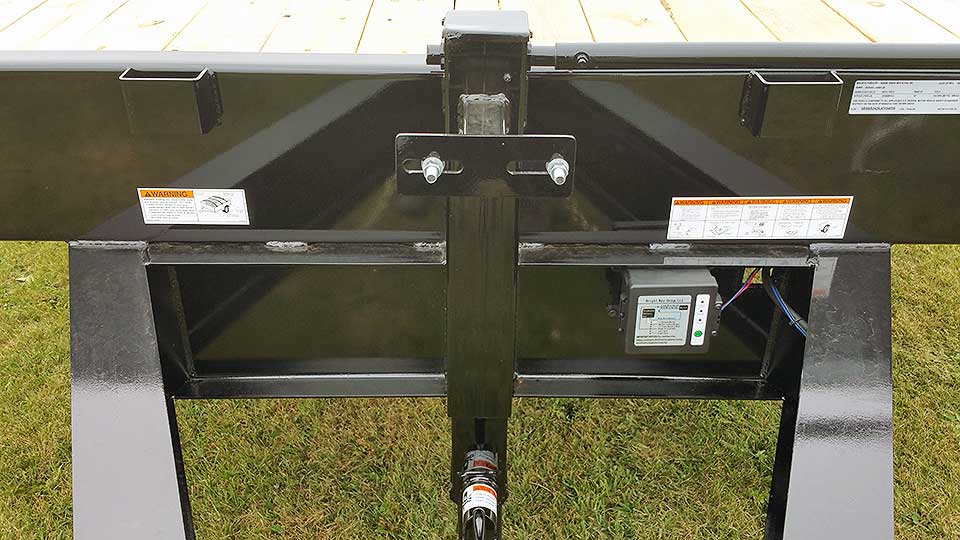

Jack: 10,000# dropleg
Structural: 10″ I-beam frame & tongue, 5″ channel lace rail, 3″ channel crossmembers (16″ centers)
Tie Downs Stake pockets and rubrail, 5″ solid bump bar w/4 stake pockets
Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape
Floor: 2 X 8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)

Note: Prices shown are for a straight flat bed. If a dove tail w/ramps is desired choose from the options below and add to the base price. (Adding a dove tail does not increase bed length. Example: 20′ trailer with a 5′ dove tail is 15′ flat and 5′ dove tail.)

Bed Size & Prices

96″ X 16′: $6,012

102″ X 16′: $6,070

96″ X 18′: $6,099

102″ X 18′: $6,157

96″ X 20′: $6,203

102″ X 20′: $6,244

96″ X 22′: $6,290

102″ X 22′: $6,333

96″ X 24′: $6,377

102″ X 24′: $6,418


Some Options

 Now standard with spare tire mount

 Spare silver mod wheel w/o tire: $64

Spare ST 235/80 R16 LR “E” tire w/silver mod wheel: $195

 2 5/16 ball coupler or pintle hitch: N/C

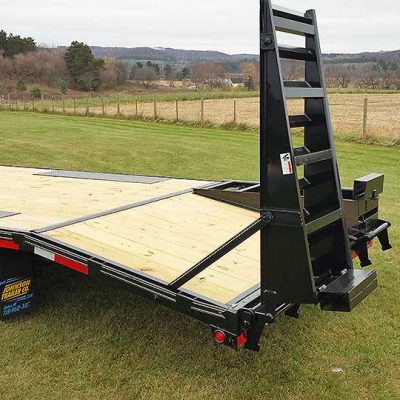

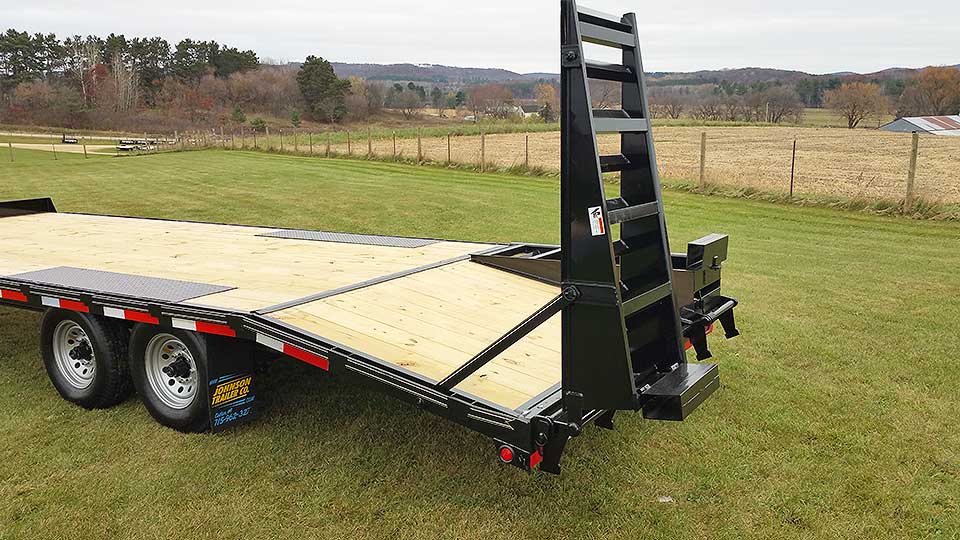

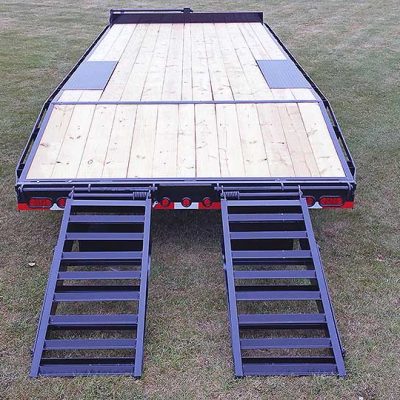

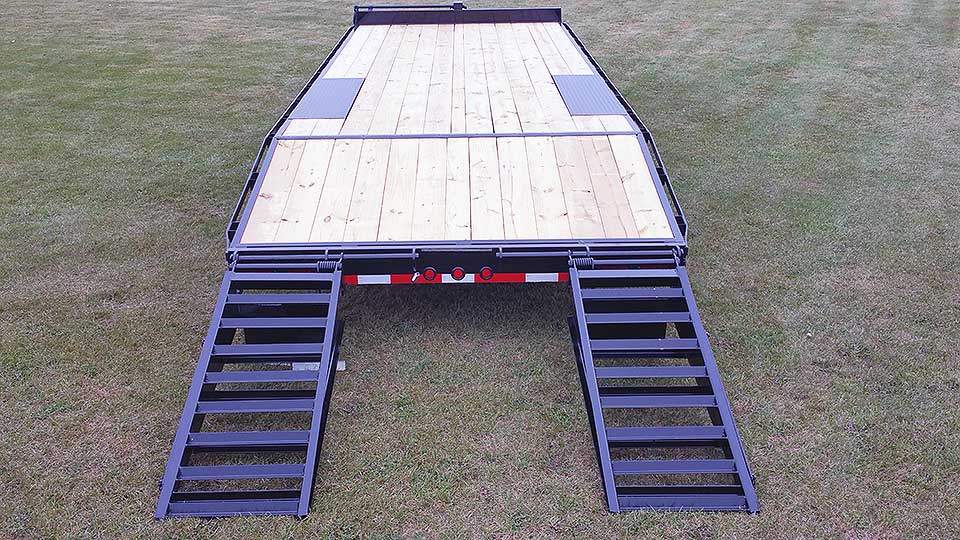

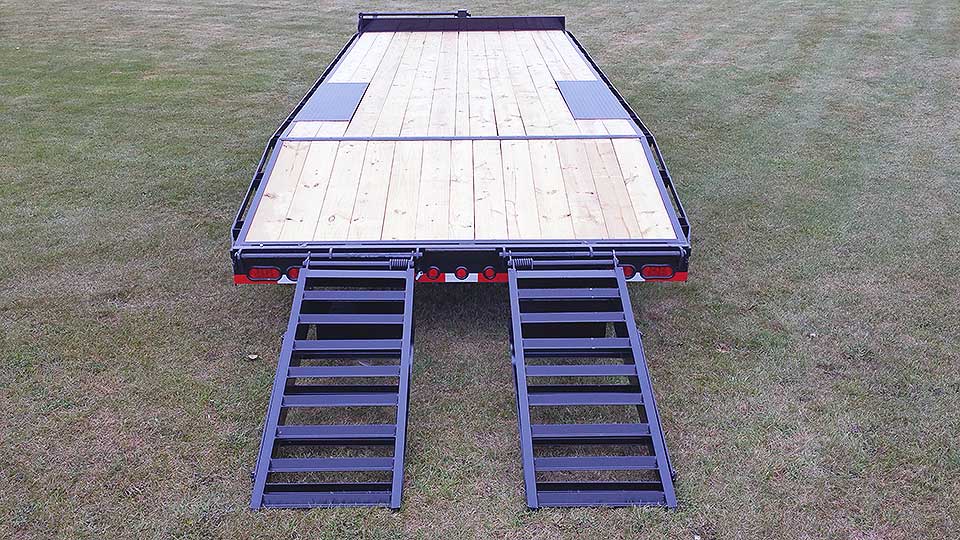

 4′ Dove tail W/2-5′ high X 16″ wide stand up knee ramps: $325

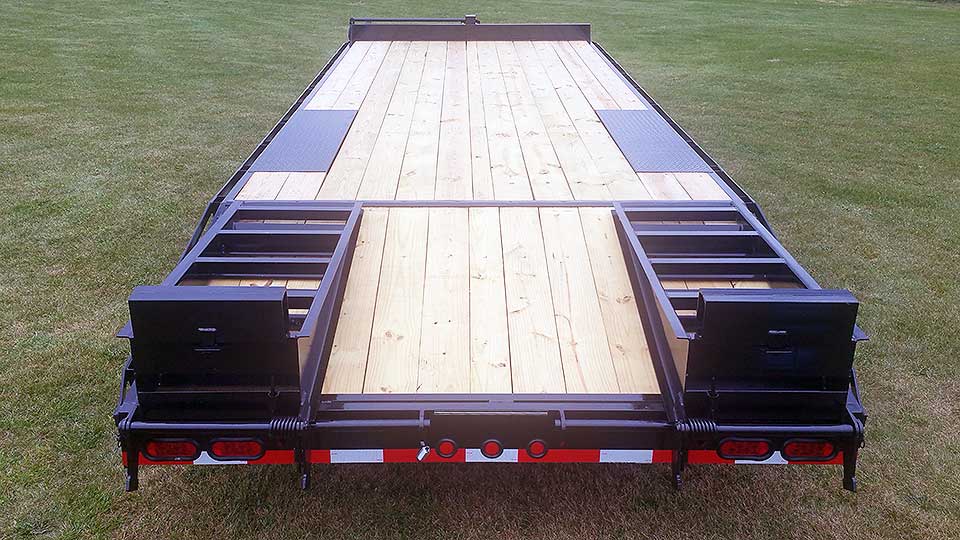

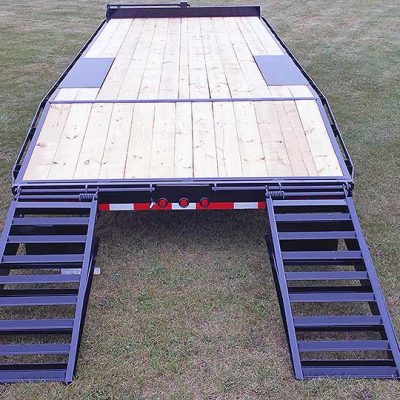

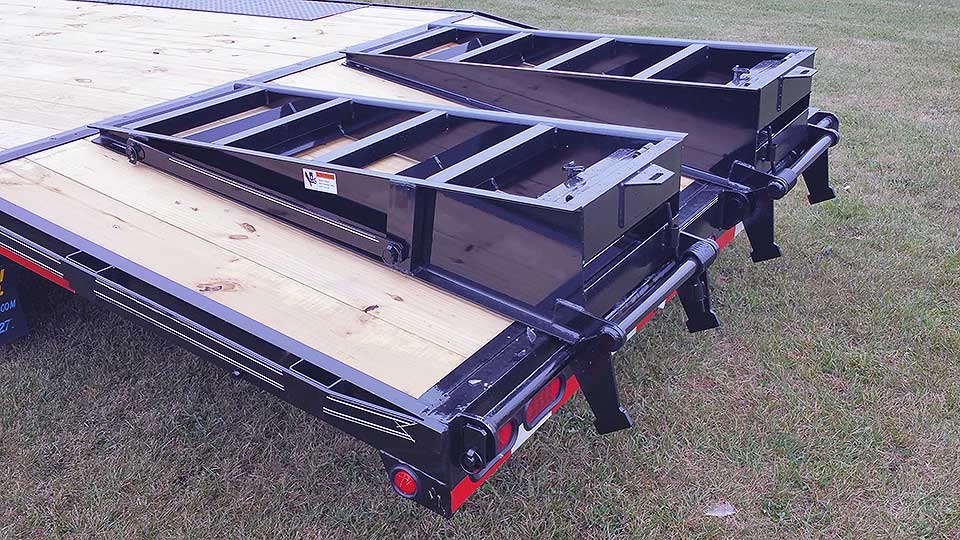

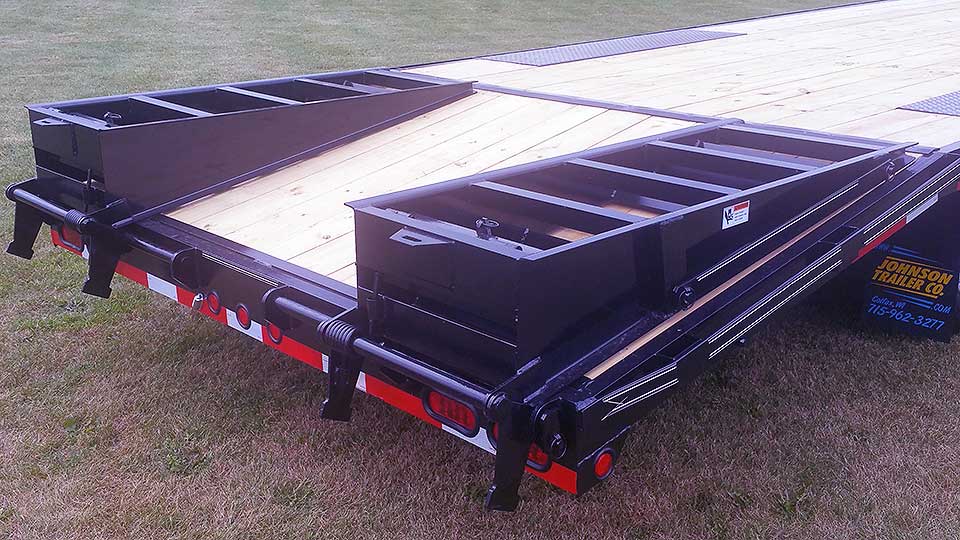

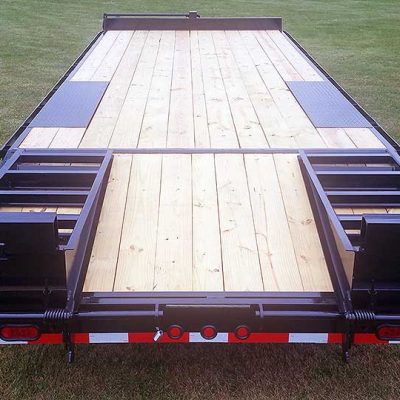

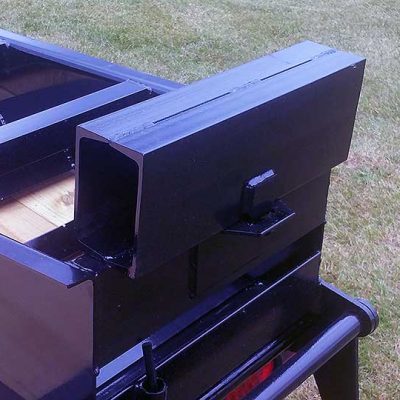

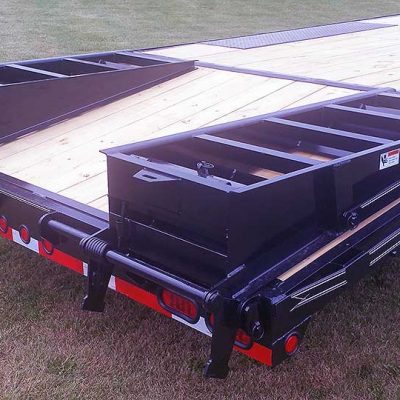

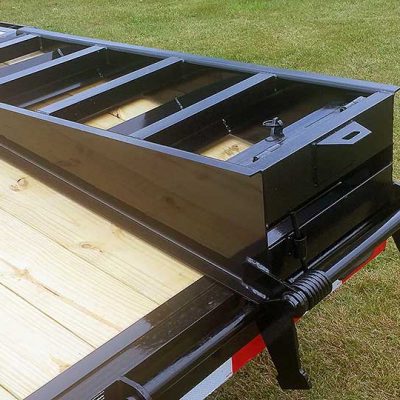

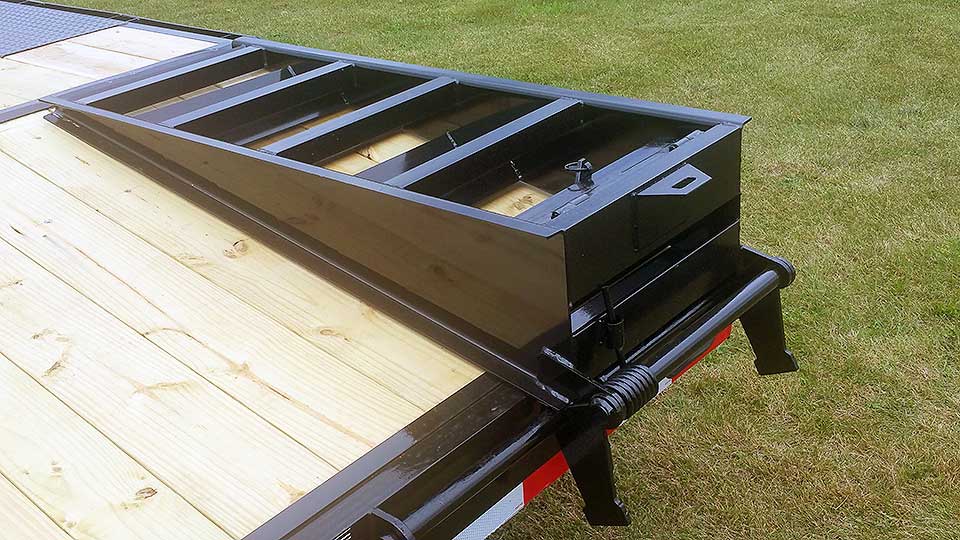

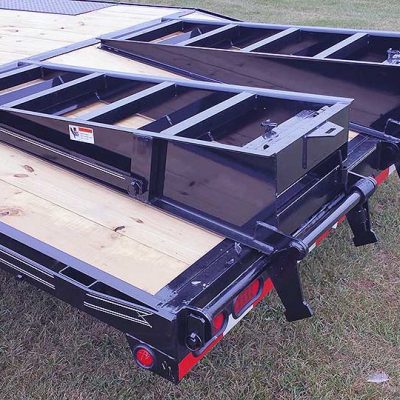

 5′ Dove tail W/2 postion floor level ramps w/spring assist: $500

 Third flip over floor level ramp w/spring assist (for 5′ tail only): $210

 7,000# GVWR:   Click to view deckover ATV trailer

 21,000# GVWR:   Click to view 10.5 ton gooseneck & pintle trailer

 24,000# GVWR:   Click to view 12 ton gooseneck & pintle trailer

Aluminum tongue mounted toolbox: $225 Click to view aluminum tongue box

Stake pocket D-rings: $23 each for 6 or more. $29 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
