The ultimate car hauler trailer

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

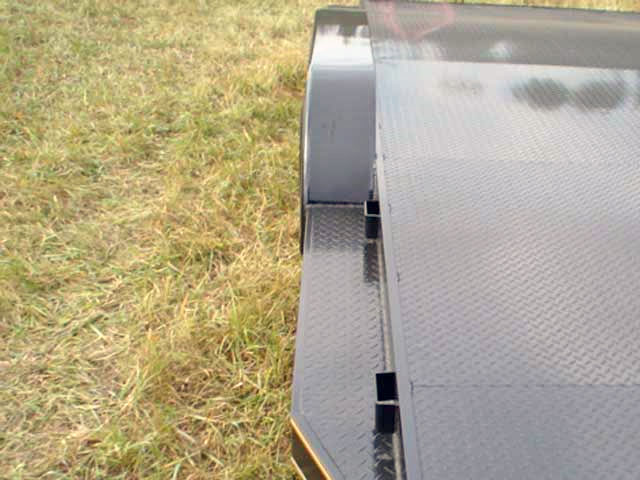

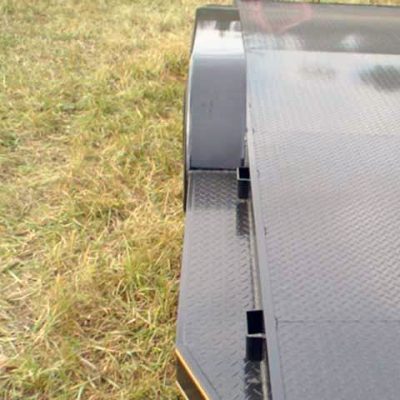

Running Boards

Car Hauler with a Steel Floor

Car Trailer

Diamond Plate Steel Floor

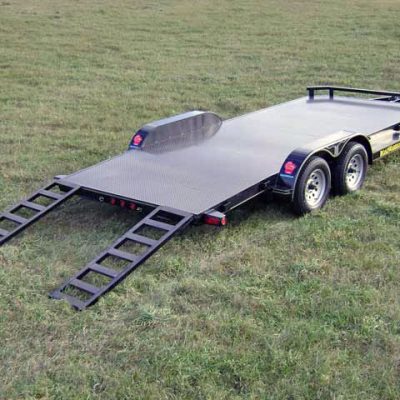

Slide In Ramps

Trailer may be shown with optional equipment.

Road Warrior Trailer

Specifications – Car Hauler, Steel Floor
Weight Rating: 7,000 LBS. GVWR w/evenly distributed load
Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 4 leaf double eye springs

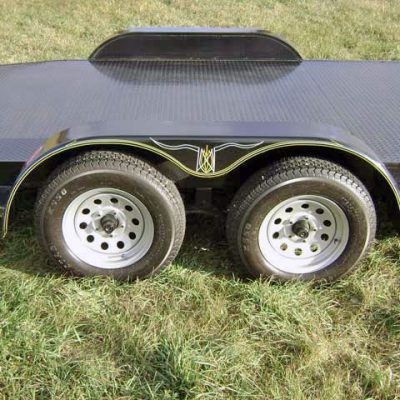

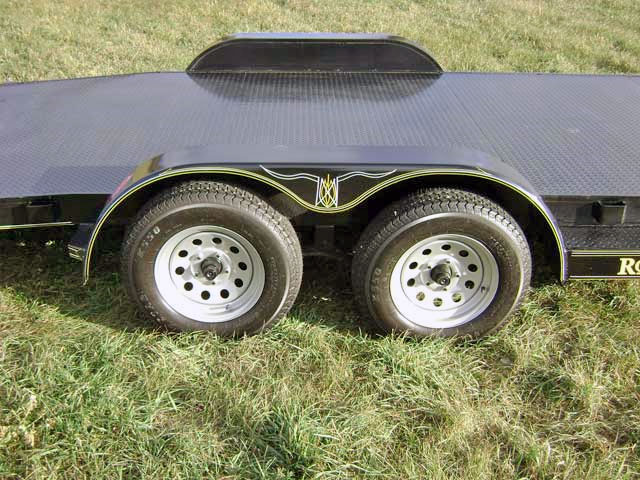

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels
Fenders: 9″x72″ 16 ga. smooth teardrop w/stoneguard
Hitch: 2 5/16″ Bulldog w/safety chains
Jack: 7,000# dropleg jack
Structural: 5″ channel frame & tongue, running board steps, 3″ channel crossmembers (24″ centers)
Tie Downs: 4 – 5,000# recessed D-rings in floor, 14 stake pockets, 2 x 2 tubing front bump bar
Ramps: 2X2 tubing (5’long X 18″ wide), slides in from rear

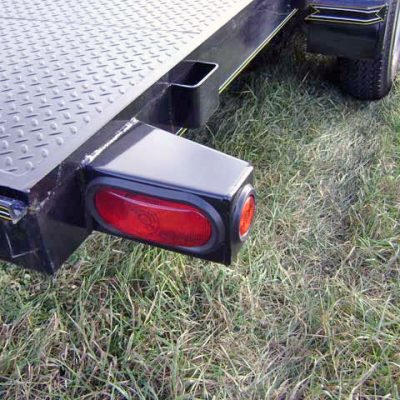

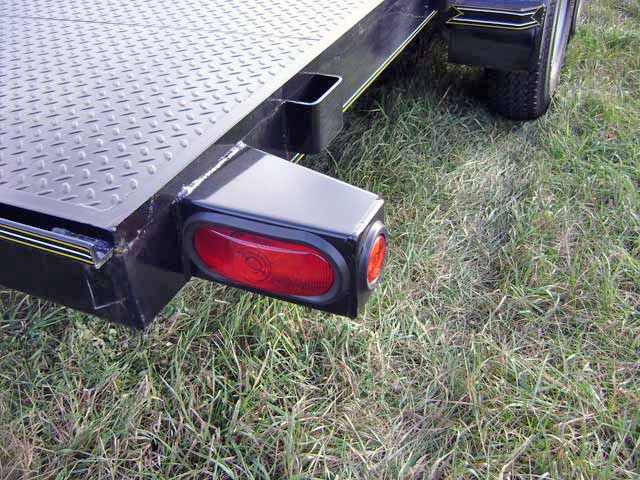

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector

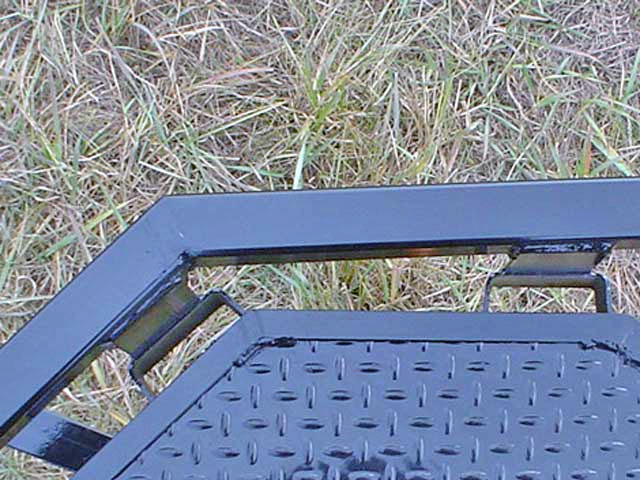

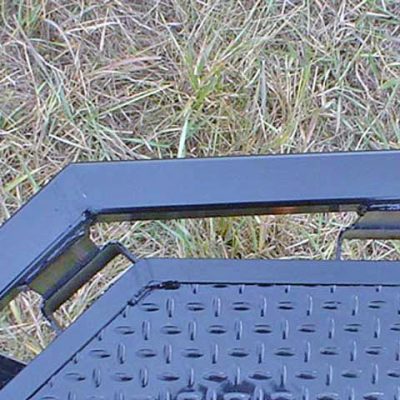

Floor: 1/8″ treadplate steel w/45º cut corners in front
Dove: 48″ long dove tail
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)

Note: Trailer length includes dove tail. (Example: 18′ trailer with dove tail has an 18′ bed including the dove tail.)

Bed Size & Prices

83″ X 16′: $4,858

83″ X 18′: $5,012

83″ X 20′: $5,105


Some Options

 Spare 205/75 R15 LR “C” tire w/silver mod wheel: $150

 Spare silver mod wheel w/o tire: $50

 14 ga. treadplate heavy duty fenders: $115

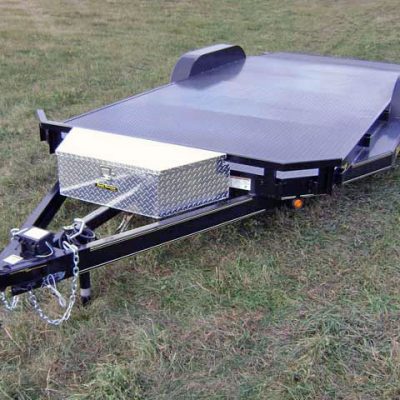

Aluminum tongue mounted toolbox: $225 Click to view aluminum tongue box

 Additional recessed D-rings in floor (5,000# rating): $12 Each

 102″ wide package w/drive over fenders: $525Click to view 102 package

 10,000 lbs. GVWR Pkg:
(Includes 2 – 5,200# electric brake axles, 5 leaf double eye springs, crossmembers on 16″ centers, 2 5/16 Bulldog coupler)
w/o side steps in front of fenders: $625
with side steps in front of fenders: $825

Ramp Extenders (for low clearance vehicles): $175 Click to view ramp extenders

Bolt-on spare tire mount: $60 Click to view spare mount

Stake pocket D-rings: $23 each for 6 or more. $29 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
