Steel Workbed Truck Bed

 Rugged steel construction. Great for trailer towing and general hauling

Steel Truck Bed

Standard Specifications

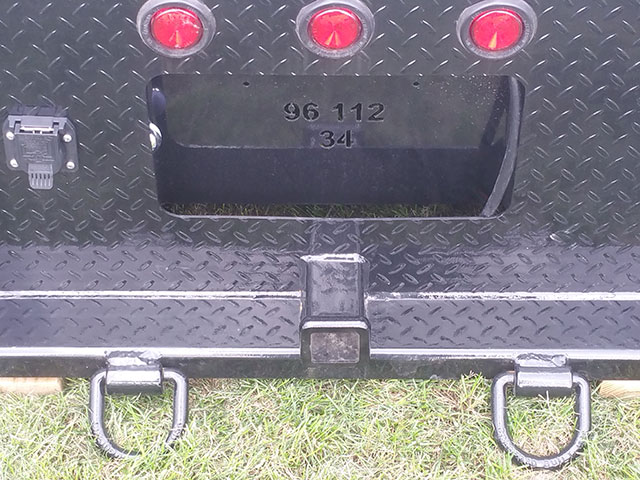

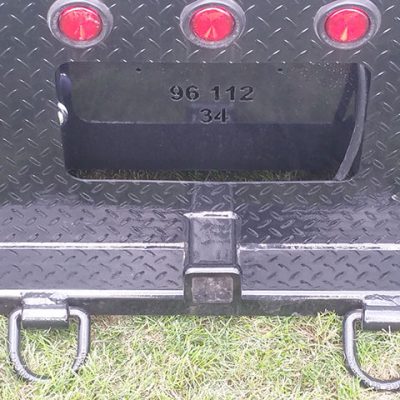

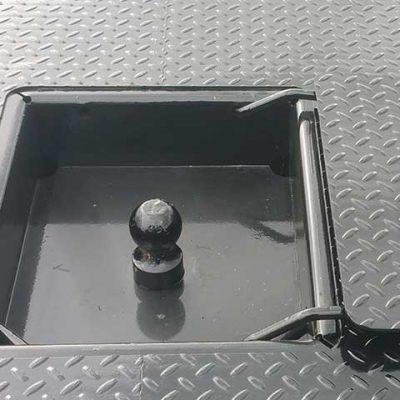

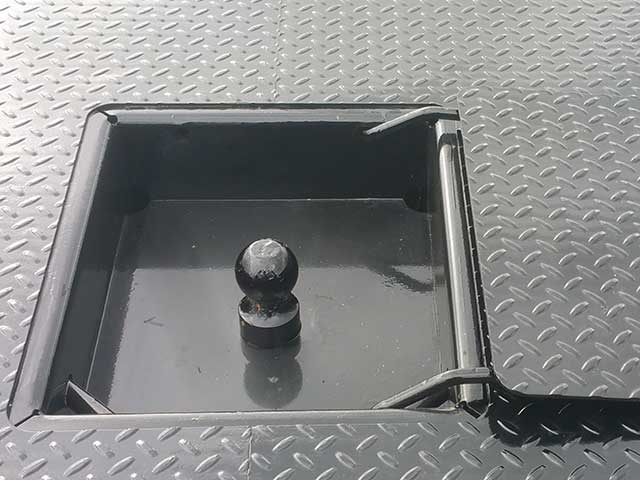

Hitches: 30,000# gooseneck hitch and class IV receiver hitch
Structural: Structural steel channel runners, crossmembers and hitch components. 1/8″ tread plate steel deck, skirting and formed headache rack.
Paint Process: Entire assembly goes through abrasive blasting cabinet, acid etching, zinc powdercoat primer and premium black powder coating process. Black is the only color available.

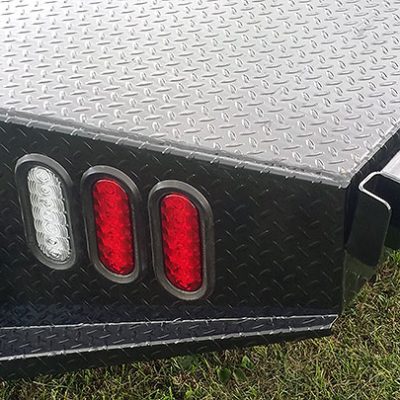

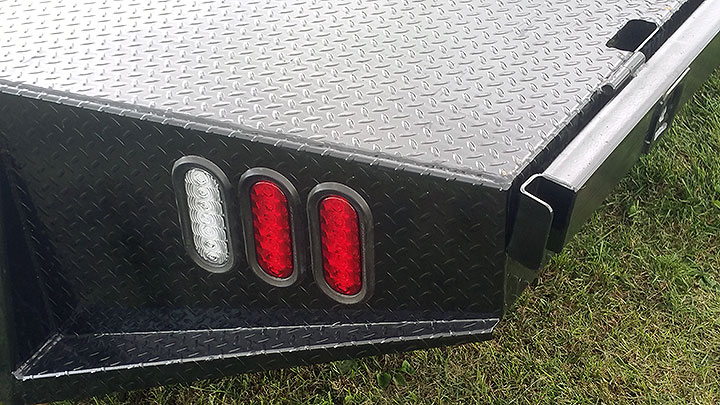

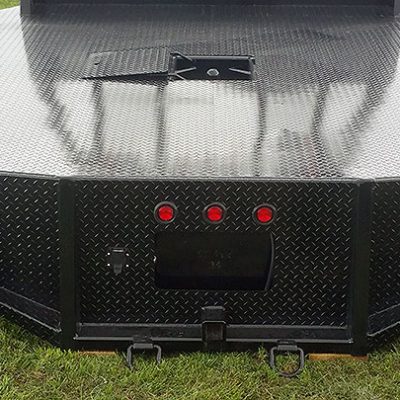

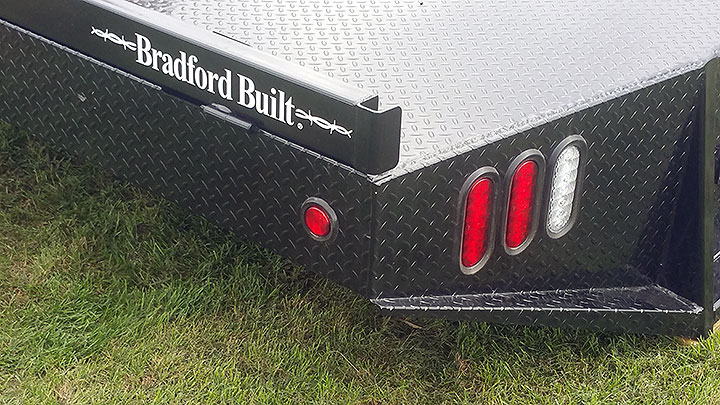

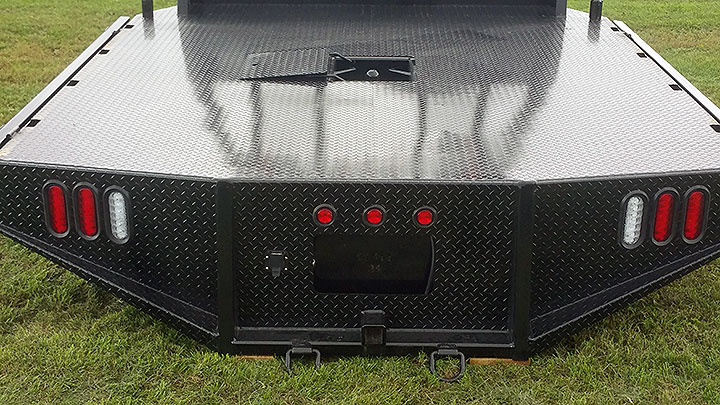

Electrical: 6 LED stop, turn, tail lights. 4 LED backup lights and all required clearance lights. Sealed factory wiring harness. 7 way trailer connection.
Tie Downs: Recessed d-rings and stake pockets.

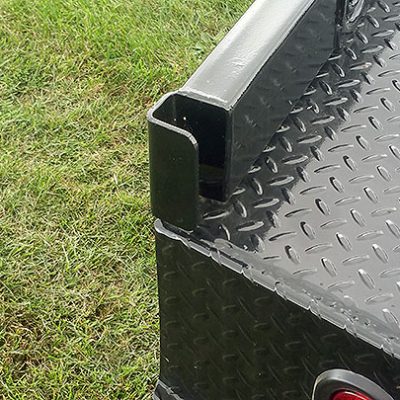

Side Racks: 4″ flip down hinged side racks w/greasable hinges. Brackets for 2 X 4 lumber tailgate.

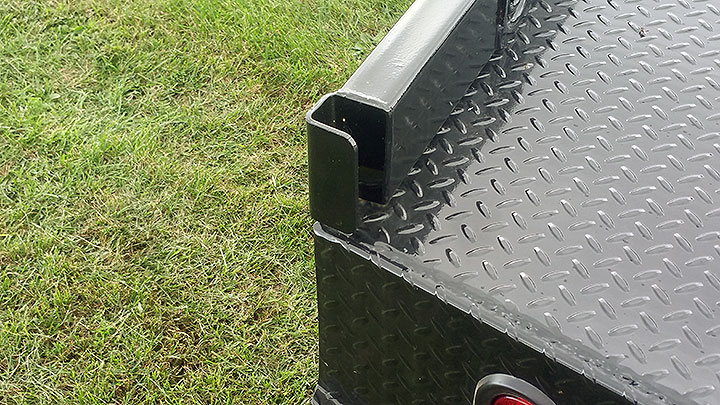

Special Features: Tapered rear corners and deep skirting on rear.
Fuel Filler: Black steel fuel bezel (Diesel w/DEF fluid requires second fuel bezel)
Mud Flaps: 19″ X 24″ rubber w/anti-spray grooves.



General Application List for Models Normally in Stock
9′ 4″ X 96″ X 34
Length: 9’4″‘
Width: 96″
Frame Width: 34″
(For 60″ Cab to Axle)

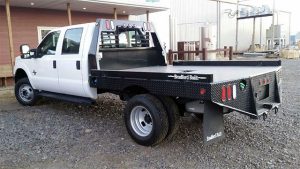

Application: 1 ton cab and chassis truck with rear dual wheels and 60″ cab to axle measurement.
11 ‘4″ X 96″ X 34
Length: 11′ 4″
Width: 96″
Frame Width: 34″
(For 84″ Cab to Axle)
Application: 1 ton cab and chassis truck with rear dual wheels and 84″ cab to axle measurement.



To ensure choosing the proper size bed for your truck, the following information should be known:

1. Cab to axle measurement (measure from back of cab to center of rear axle)
2. Rear tires measurement (measure outside to outside width of rear tires)
3. Frame rails (measure outside to outside of frame rails at rear of truck)
4. Year, make and model of truck

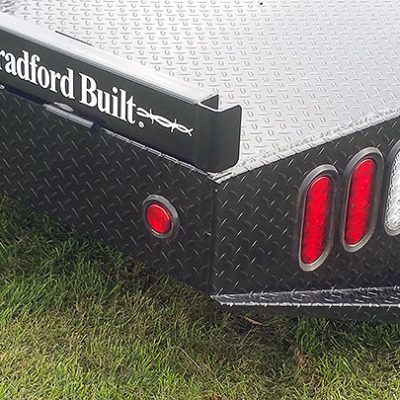

Bradford Built Steel Workbed

Bed Size & Prices

Model: 9′ 4″ X 96″ X 34: Price Reduced to $3,825 – was $4,100

Model: 11 ‘4″ X 96″ X 34: Price Reduced to $4,000 – was $4,650

Note: All truck flatbeds are sold as components only. It is the responsibility of the final installer or manufacturer to meet all state, federal D.O.T. and O.S.H.A. regulations.

Some Options

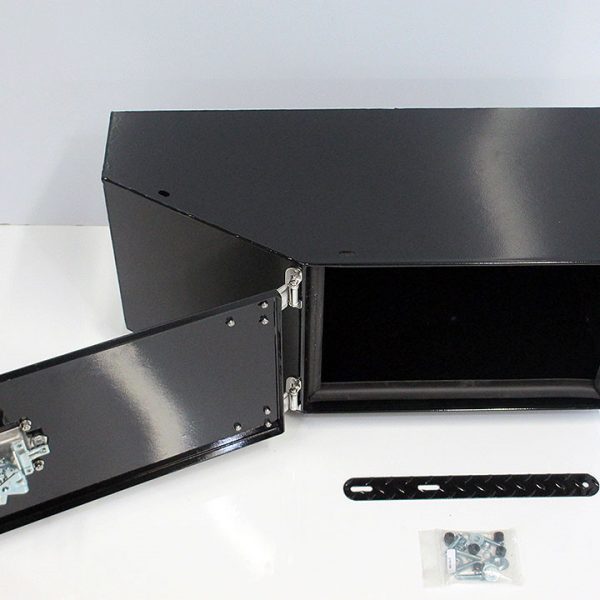

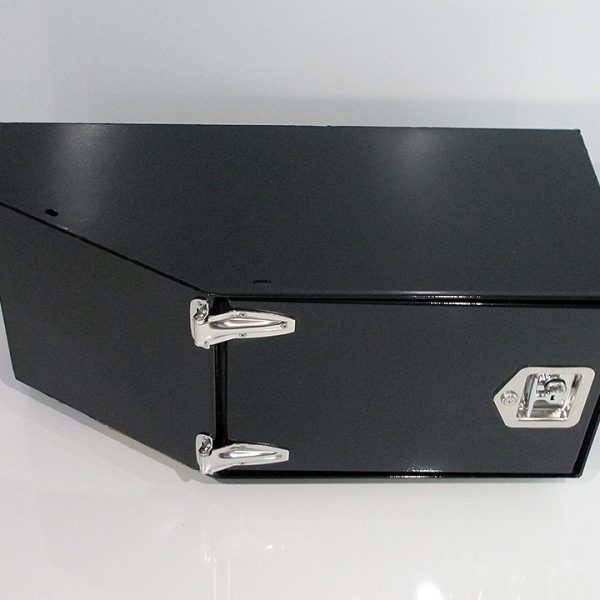

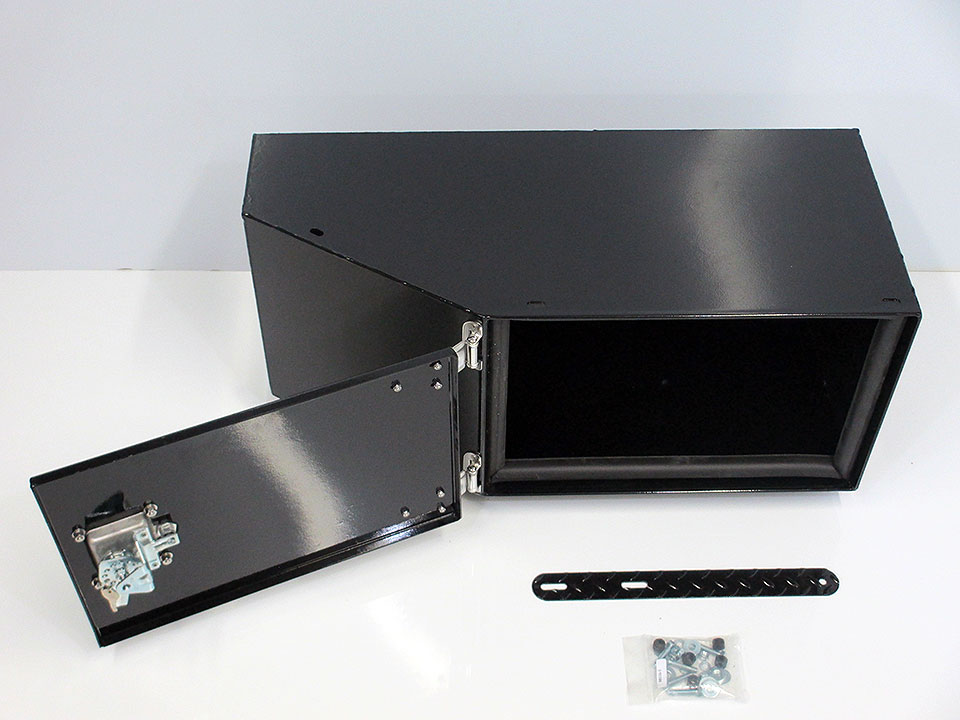

BB 96 Steel underbody tool box: $350

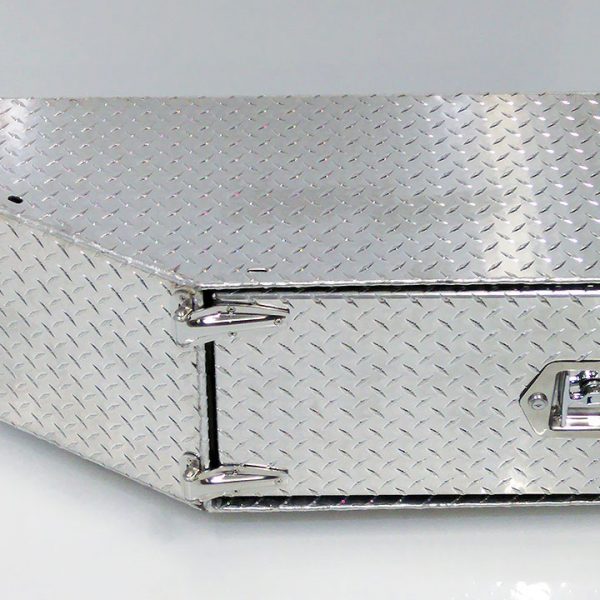

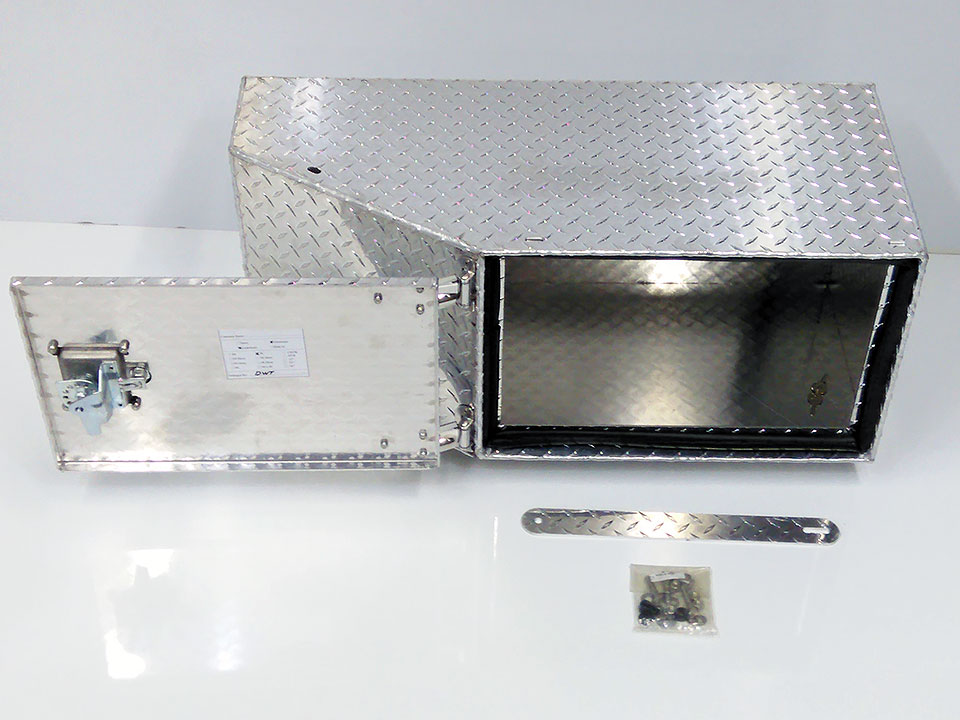

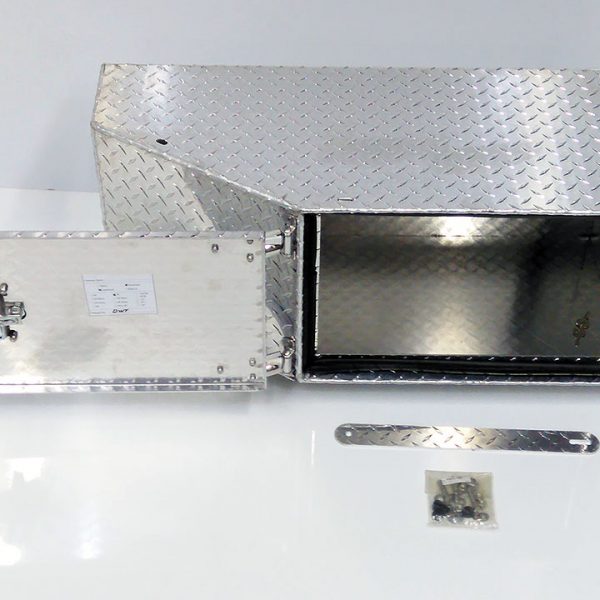

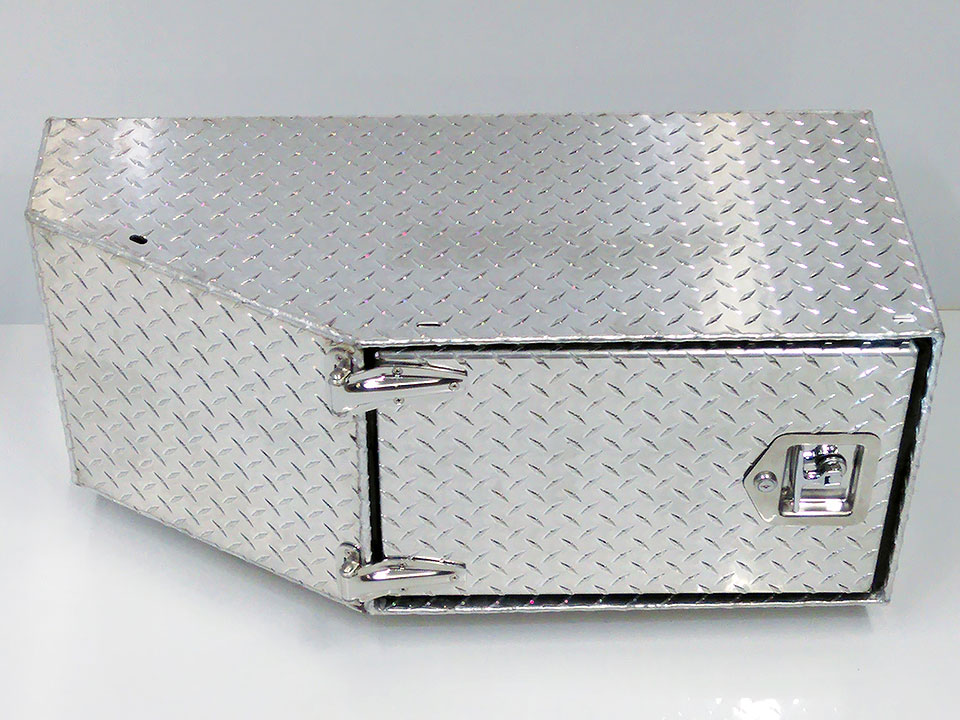

BB 96 Aluminum underbody tool box: $375

Note: Tool boxes come with mounting hardware.
