6 & 7 Ton Hydraulic Dump Trailer
• Save time and money by hauling your own rock, dirt, debris and much more. •
• Some models have skidsteer hauling capability. •

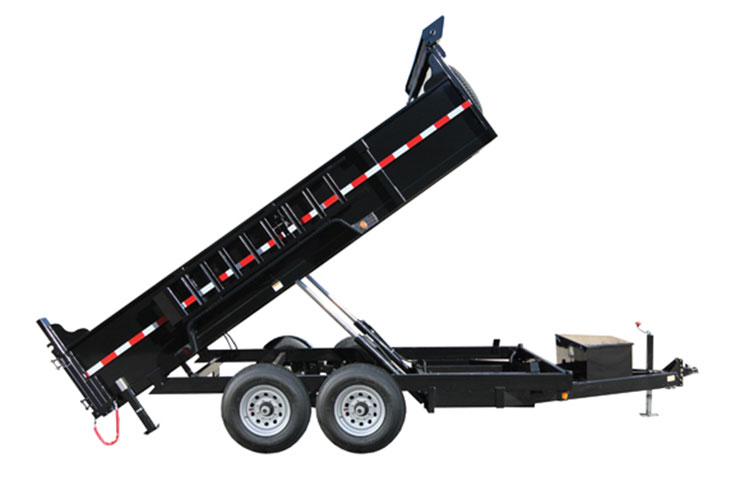

Model 8314-14LPXD
 |
 |
 |
| Split/Spreader gate | Split/Spreader gate | Protected wiring |
 |
 |
 |
| Board bracket allows for extended sides to 36″ |
Ramp kit w/D-rings in floor | Full length center main rail |
 |
 |
 |
| Optional Tarp Kit |
Extra large tongue box w/storage space for straps & chains |
Spare tiremount std. (Spare tire optional) |
| Standard Features | Standard Features |
| • Plug and Go Sealed Harness | • Skidsteer Ramps |
| • Fusible Battery Charge Wire | • All Weather Remote Control |
| • 12V Hydraulic System | • All Wheel Electric Brakes |
| • One Year Limited Warranty | • Split/Spreader Tail Gate |

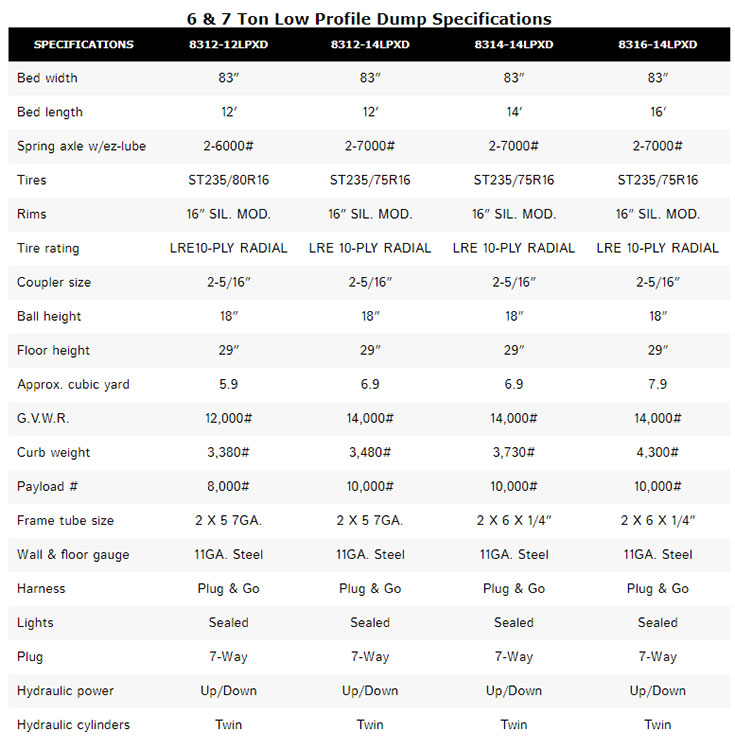

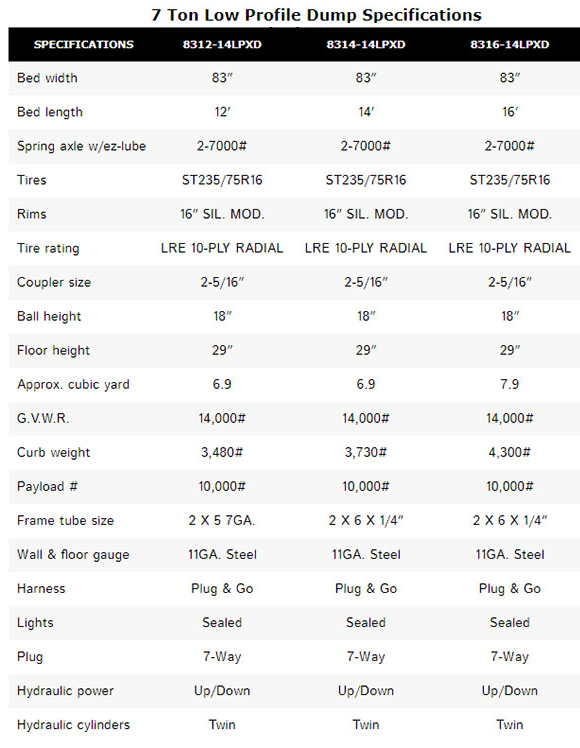

6 & 7 Ton Low Profile Dump Specifications
| SPECIFICATIONS | 8312-12LPXD | 8312-14LPXD | 8314-14LPXD | 8316-14LPXD |
| Bed width | 83″ | 83″ | 83″ | 83″ |
| Bed length | 12′ | 12′ | 14′ | 16′ |
| Spring axle w/ez-lube | 2-6000# | 2-7000# | 2-7000# | 2-7000# |
| Tires | ST235/80R16 | ST235/75R16 | ST235/75R16 | ST235/75R16 |
| Rims | 16″ SIL. MOD. | 16″ SIL. MOD. | 16″ SIL. MOD. | 16″ SIL. MOD. |
| Tire rating | LRE10-PLY RADIAL | LRE 10-PLY RADIAL | LRE 10-PLY RADIAL | LRE 10-PLY RADIAL |
| Coupler size | 2-5/16″ | 2-5/16″ | 2-5/16″ | 2-5/16″ |
| Ball height | 18″ | 18″ | 18″ | 18″ |
| Floor height | 29″ | 29″ | 29″ | 29″ |
| Approx. cubic yard | 5.9 | 6.9 | 6.9 | 7.9 |
| G.V.W.R. | 12,000# | 14,000# | 14,000# | 14,000# |
| Curb weight | 3,380# | 3,480# | 3,730# | 4,300# |
| Payload # | 8,000# | 10,000# | 10,000# | 10,000# |
| Frame tube size | 2 X 5 7GA. | 2 X 5 7GA. | 2 X 6 X 1/4″ | 2 X 6 X 1/4″ |
| Wall & floor gauge | 11GA. Steel | 11GA. Steel | 11GA. Steel | 11GA. Steel |
| Harness | Plug & Go | Plug & Go | Plug & Go | Plug & Go |
| Lights | Sealed | Sealed | Sealed | Sealed |
| Plug | 7-Way | 7-Way | 7-Way | 7-Way |
| Hydraulic power | Up/Down | Up/Down | Up/Down | Up/Down |
| Hydraulic cylinders | Twin | Twin | Twin | Twin |
Bed Size & Prices
• 8312-12LPXD w/ramp kit: $9,148
• 8312-14LPXD w/ramp kit: $9,430
• 8314-14LPXD w/ramp kit: $9,749
• 8316-14LPXD w/ramp kit: $10,895
Some Options
• Spare silver mod wheel w/o tire 16″: $75
• Spare tire & wheel: $210
• Roll up tarp kit (83″ x 12′ thru 83″ x 16′): $500
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
