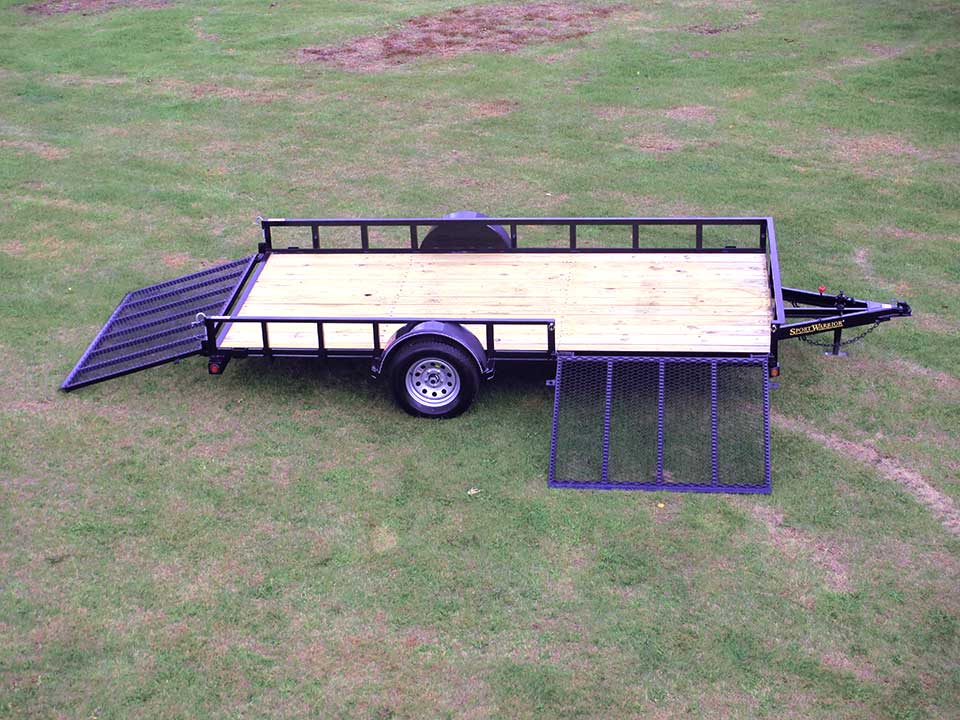

Single Axle Utility Trailer w/Side Ramp Pkg

Expoxy Ester Primer

Wiring in Conduit

Dexter Axles

15 inch tires

2x8 Treated Pine Floor

Gravel Guard

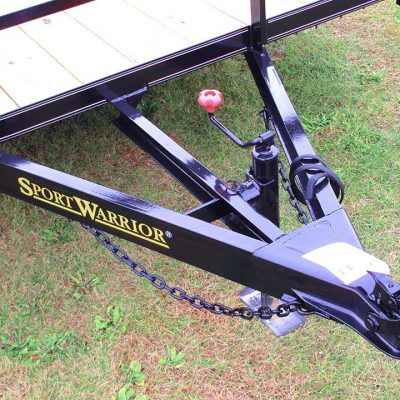

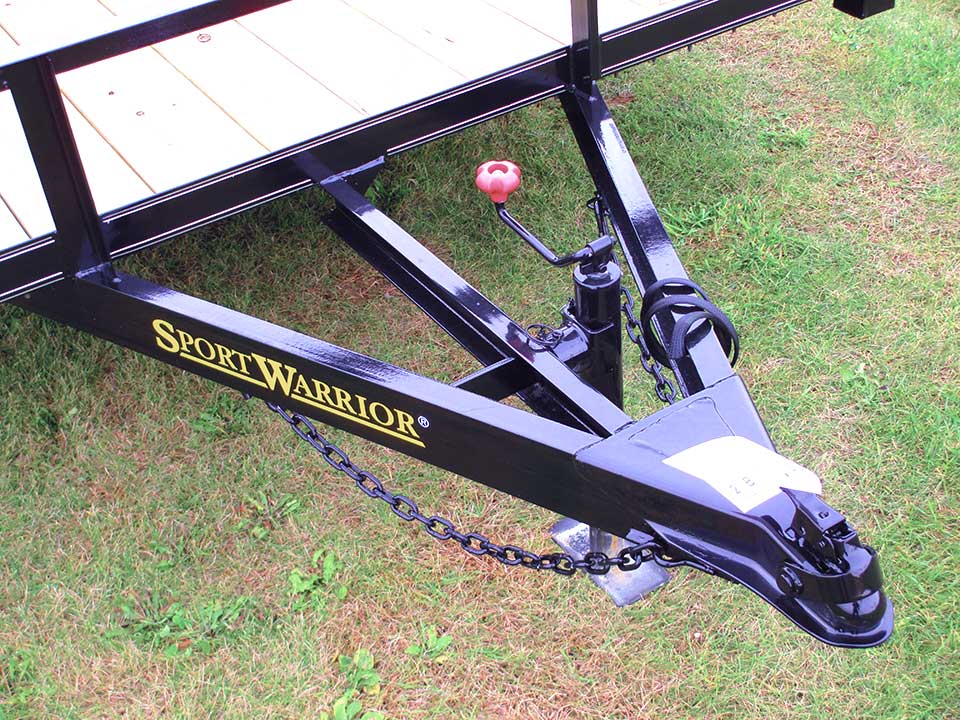

A-Frame Tongue

Pipe Mount Swivel Jack

Trailer may be shown with optional equipment.
Sport Warrior Trailer

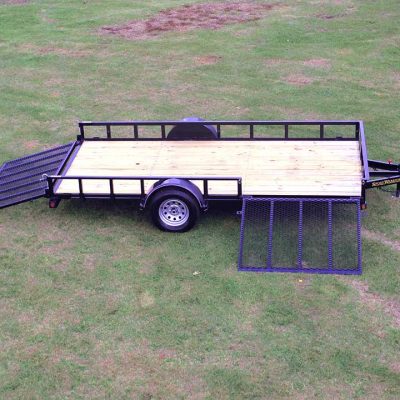

Specifications- Single Axle Utility w/Side Rails and Side Ramp
Weight Rating: 2,990 LBS. GVWR w/evenly distributed load
Axle: 1 – 3,500# w/ez-lube
Suspension: 4 leaf double eye springs

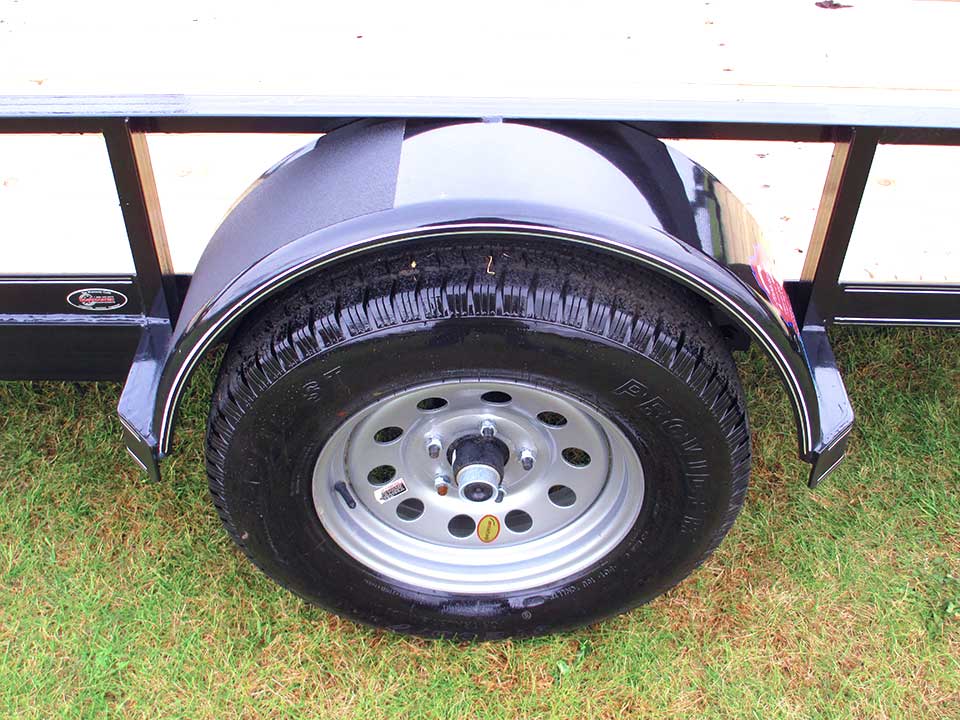

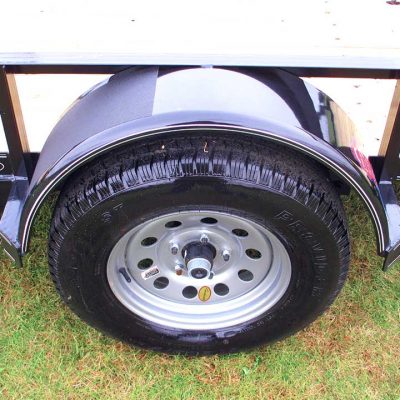

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels
Fenders: 9″x32″ 16 ga. smooth w/stoneguard
Hitch: 2″ A-frame w/safety chains
Jack: 2,000# pipe mount swivel jack
Structural: 2X3X3/16 frame & crossmembers (24″ centers), 2X2X1/8 top rail & uprights, 4″ channel tongue

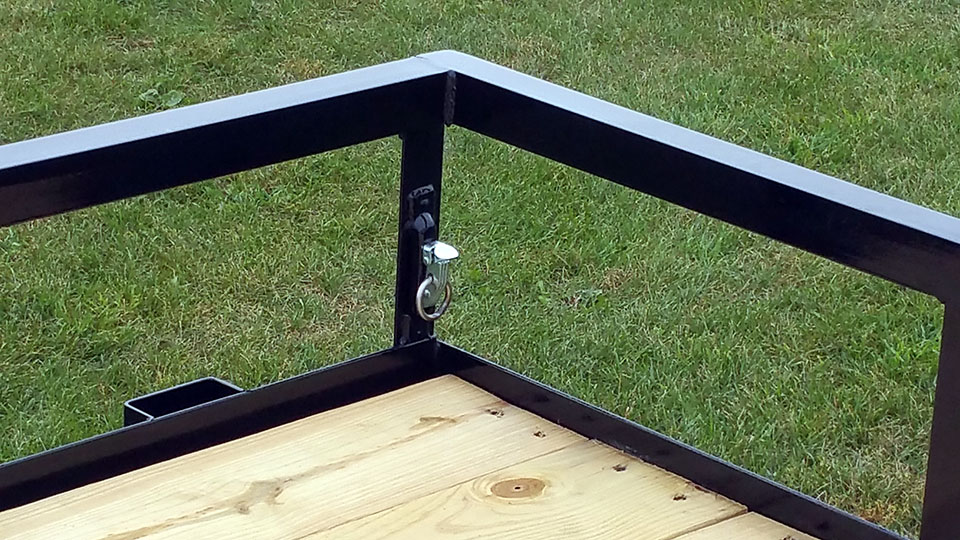

Tie Downs: Trailer equipped with 6 SNAP-LOC tie down sockets. Snap in rings are shown in options list.
Electrical: LED lighting, license bracket w/light, wiring in conduit w/flat 4 way connector
Floor: 2X8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call)

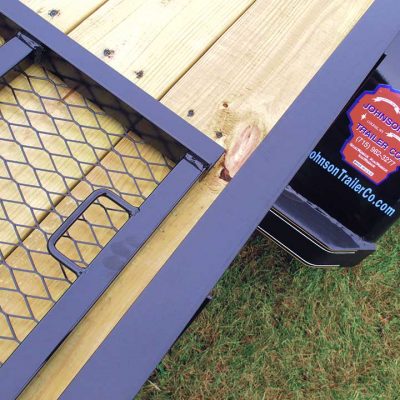

Side Ramp Package Includes:

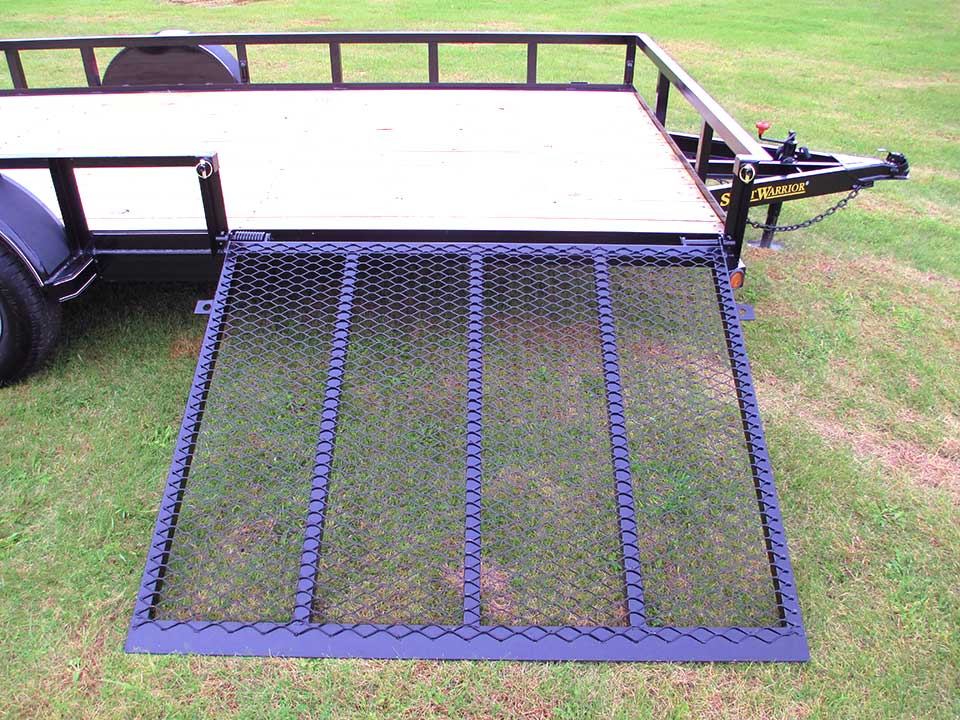

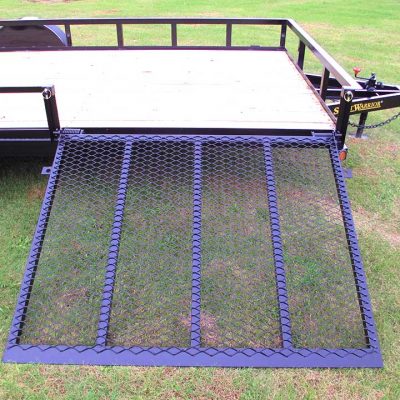

 5′ wide X 36″ high curb side ramp gate w/re-enforced tongue structure

Bed Size & Prices

83″ X 12′ w/side ramp package & 48″ rear ramp gate: $2,770

83″ X 14′ w/side ramp package & 48″ rear ramp gate: $2,840

printable-brochure-button-250px

Some Options

 Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $150

Spare silver mod wheel w/o tire: $60

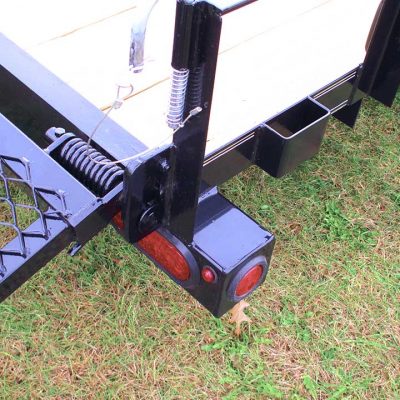

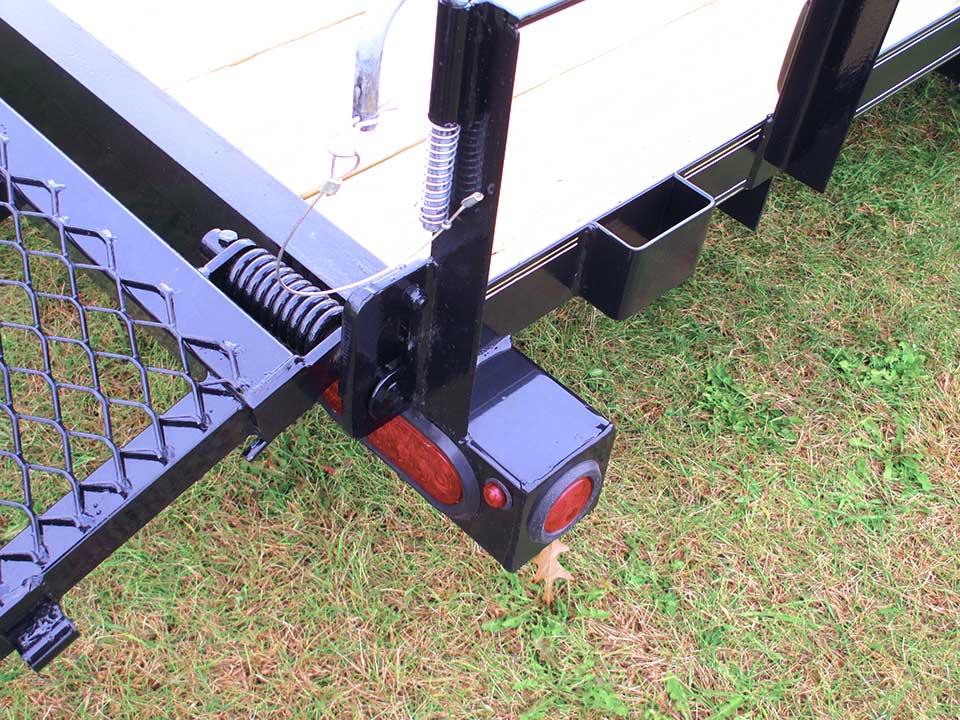

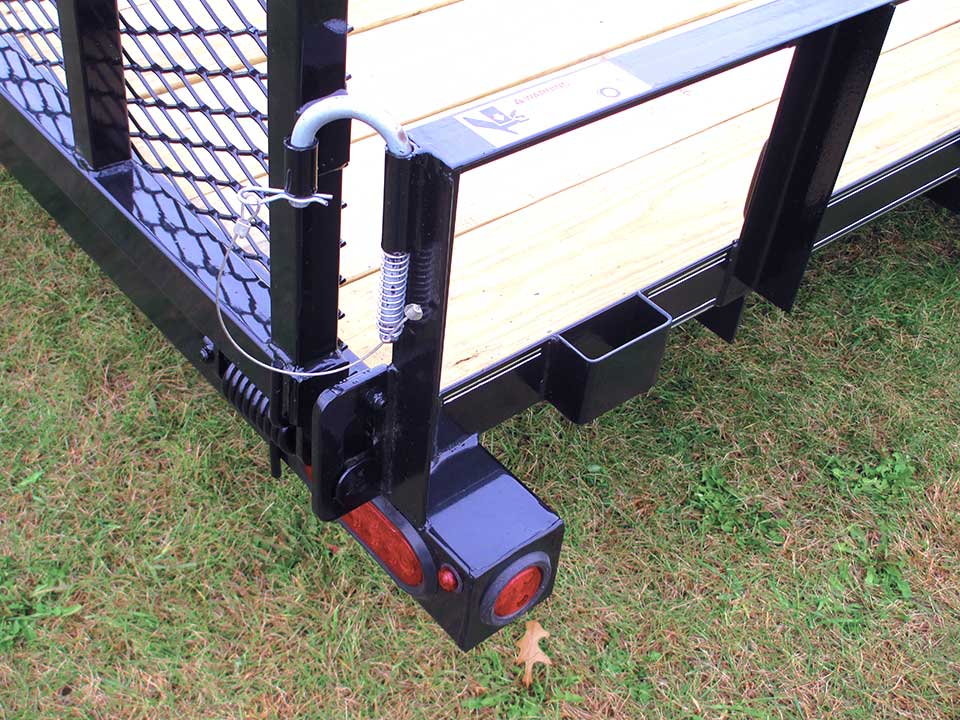

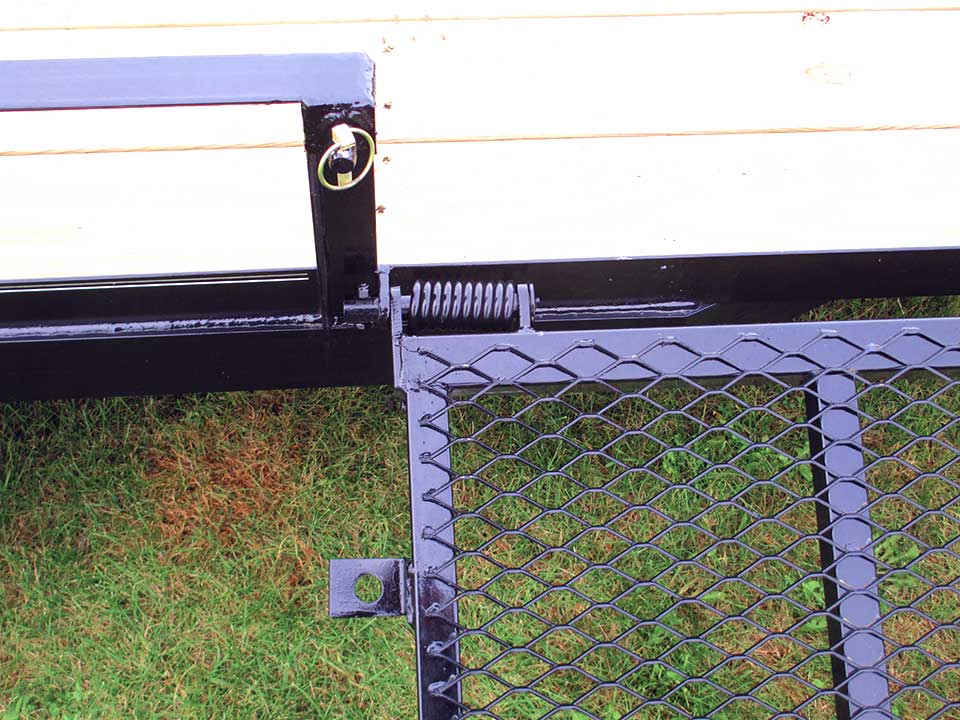

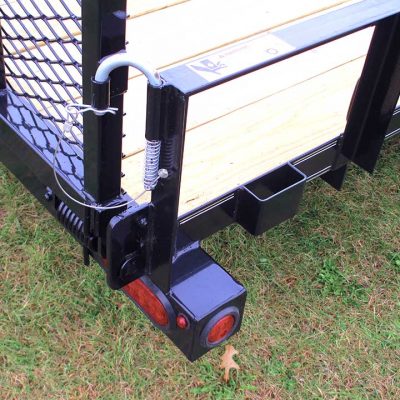

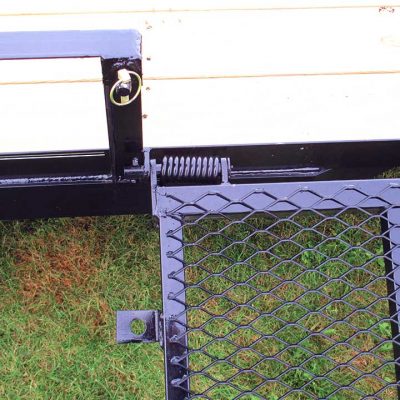

Ramp gate spring assist: $25 each
Note: Two springs required for 83″ wides. (Available for rear gate only)

48″ High curb side ramp gate (in lieu of standard 36″ high): $75

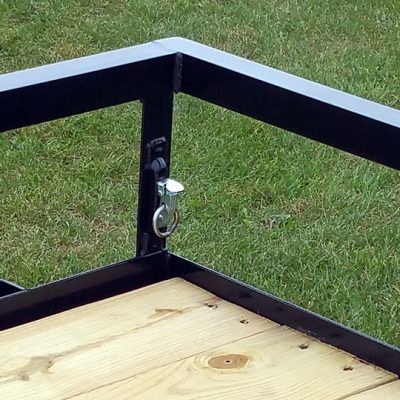

 SNAP-LOC tie down rings: $5 each

Note: Trailer comes already equipped w/6 E-track sockets (SNAP-LOC tie down rings sold separately).

 Complete SNAP-LOC tie down system.

 ATV package

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
