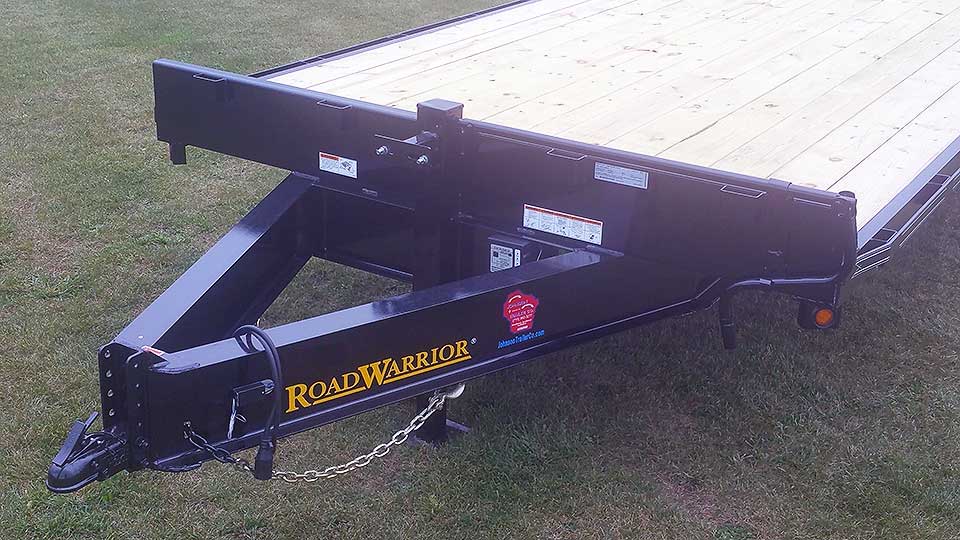

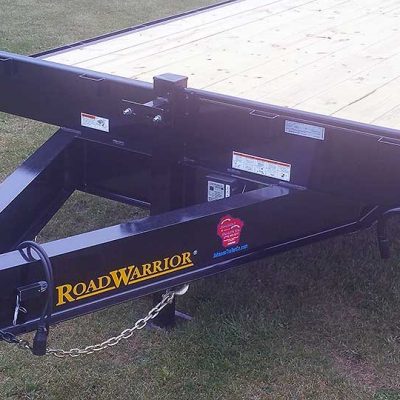

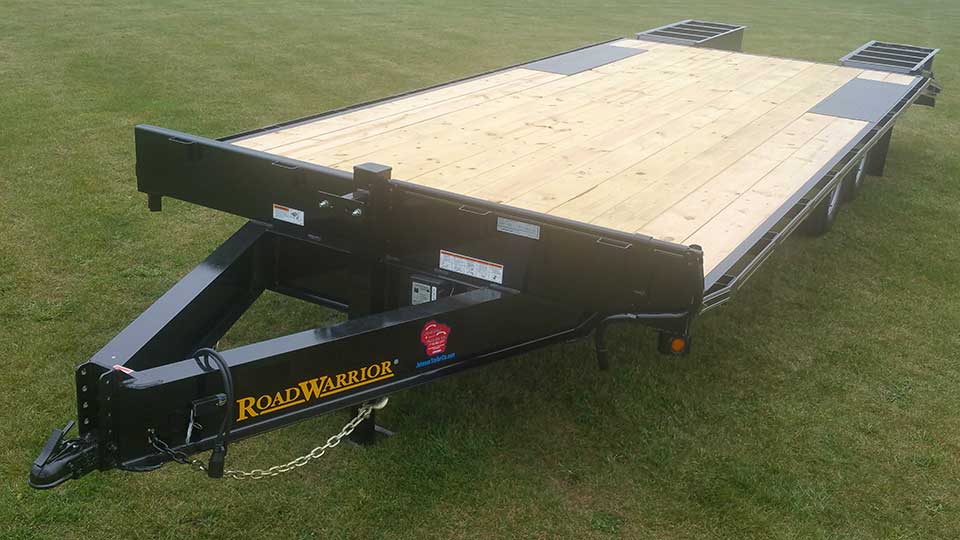

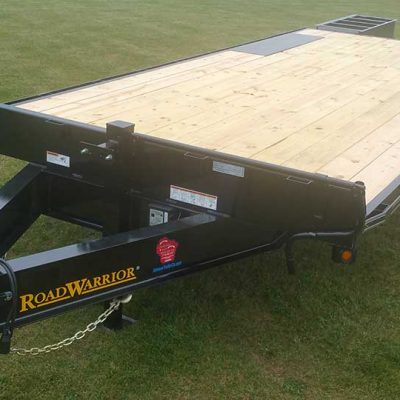

5 Ton Deckover Trailer - Johnson Trailer Co.

• Drive right on this 5 ton deckover trailer, there’s no fenders to restrict some uses. •

Trailer may be shown with optional equipment.

Specifications – 5 Ton Deckover Flatbed

Weight Rating: 10,000 LBS. GVWR w/evenly distributed load

Axles: 2 – 5,200# electric brakes, w/ez-lube, safety breakaway, w/charger

Suspension: 5 leaf slipper springs

Tires & Wheels: ST235/80 R16 load range E tires, 6 X 5 1/2 bolt pattern silver mod wheels

Hitch: Adjustable 2 5/16 ball or pintle, H.D. safety chains

Jack: 10,000# dropleg

Structural: 10″ I-beam frame & tongue, 5″ channel lace rail, 3″ channel crossmembers (16″ centers)

Tie Downs Stake pockets and rubrail, 5″ solid bump bar w/4 stake pockets

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

Floor: 2 X 8 treated yellow pine decking

Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)

Note: Prices shown are for a straight flat bed. If a dove tail w/ramps is desired choose from the options below and add to the base price. (Adding a dove tail does not increase bed length. Example: 20′ trailer with a 5′ dove tail is 15′ flat and 5′ dove tail.)

Bed Size & Prices

• 96″ X 16′: $5,481

• 102″ X 16′: $5,517

• 96″ X 18′: $5,560

• 102″ X 18′: $5,597

• 96″ X 20′: $5,640

• 102″ X 20′: $5,677

• 96″ X 22′: $5,720

• 102″ X 22′: $5,758

• 96″ X 24′: $5,800

• 102″ X 24′: $5,806

Some Options

• Now standard with spare tire mount

• Spare silver mod wheel w/o tire: $64

• Spare ST235/80 R16 LR “E” tire w/silver mod wheel: $195

• 2 5/16 ball coupler or pintle hitch: N/C

• 4′ Dove tail W/2-5′ high X 16″ wide stand up knee ramps: $325

• 5′ Dove tail W/2 postion floor level ramps w/spring assist: $500

• Third flip over floor level ramp w/spring assist (for 5′ tail only): $210

• 7,000# GVWR: Click to view deckover ATV trailer

• 21,000# GVWR: Click to view 10.5 ton gooseneck & pintle trailer

• 24,000# GVWR: Click to view 12 ton gooseneck & pintle trailer

• Aluminum tongue mounted toolbox: $225 Click to view aluminum tongue box

• Stake pocket D-rings: $23 each for 6 or more. $29 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
