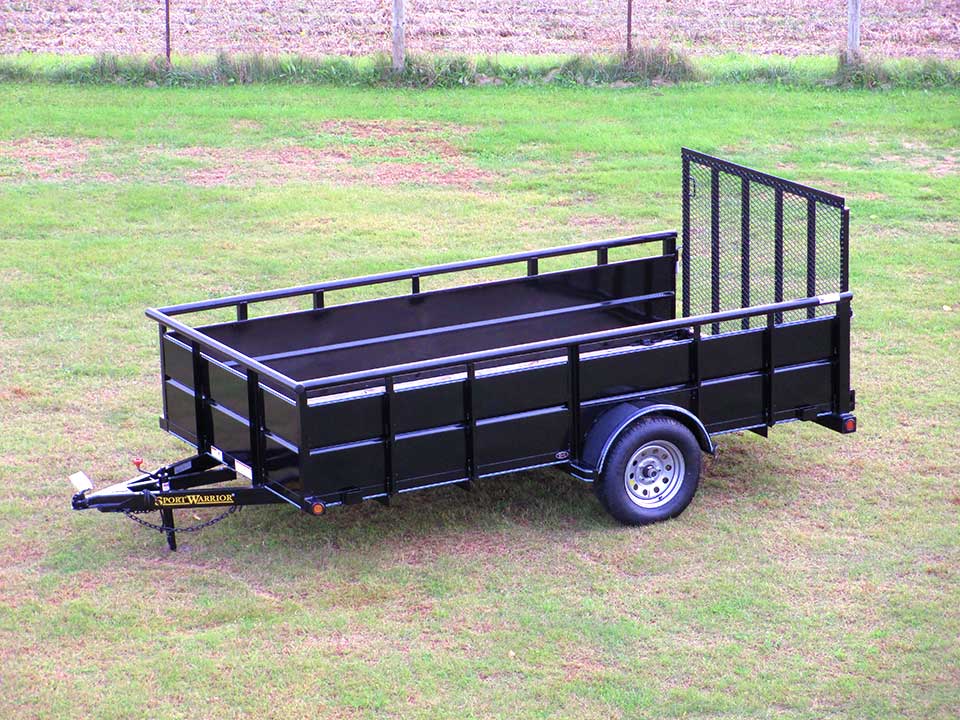

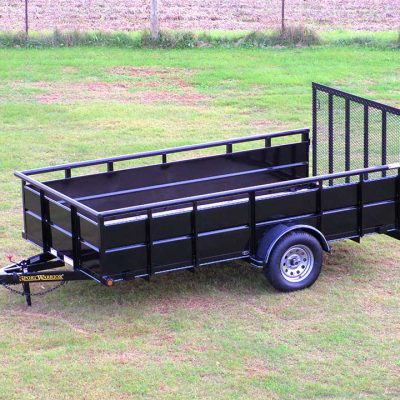

Single Axle Utility Trailer w/Hi-Sides

 Fixed solid steel sides with pipe top rail you can tie your load to.

Expoxy Ester Primer

Wiring in Conduit

Dexter Axles

15 inch tires

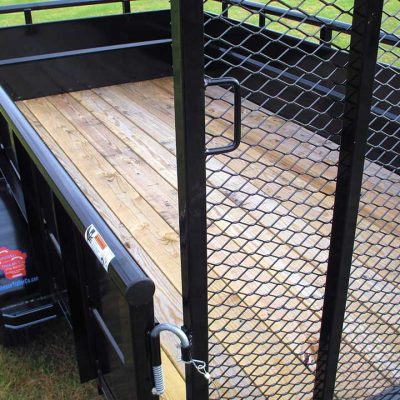

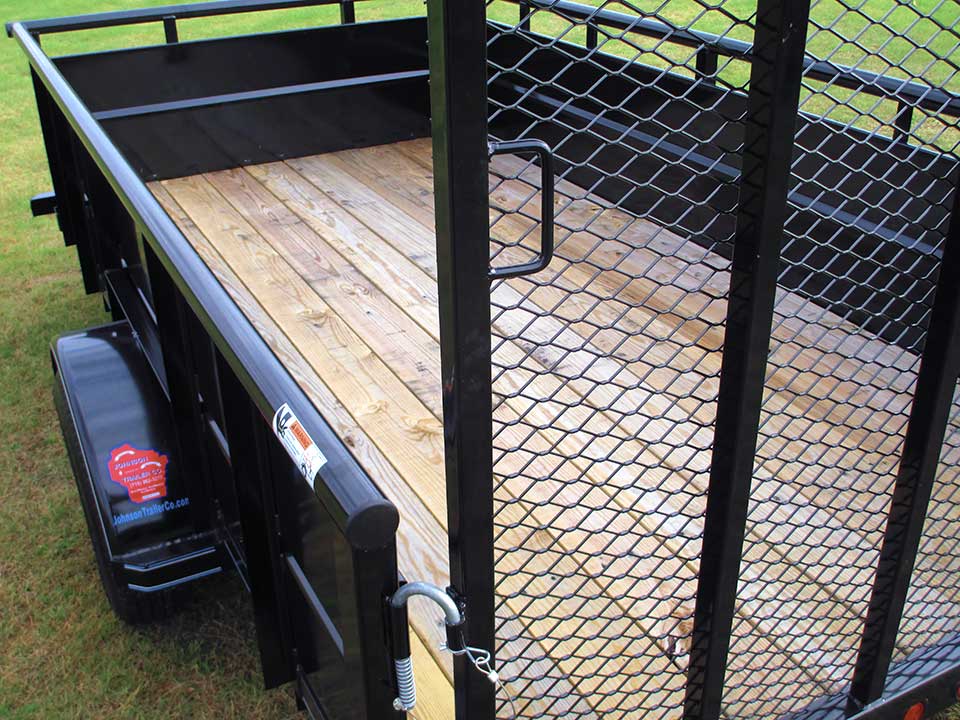

2x8 Treated Pine Floor

30 Inch Metal Sides

Pipe Top Rail

Pipe Mount Swivel Jack

Trailer may be shown with optional equipment.
Sport Warrior Trailer
Specifications – Single Axle Hi-Side Utility Trailer
Weight Rating: 2,990 LBS. GVWR w/evenly distributed load
Axle: 1- 3,500# w/ez-lube
Suspension: 4 leaf double eye springs

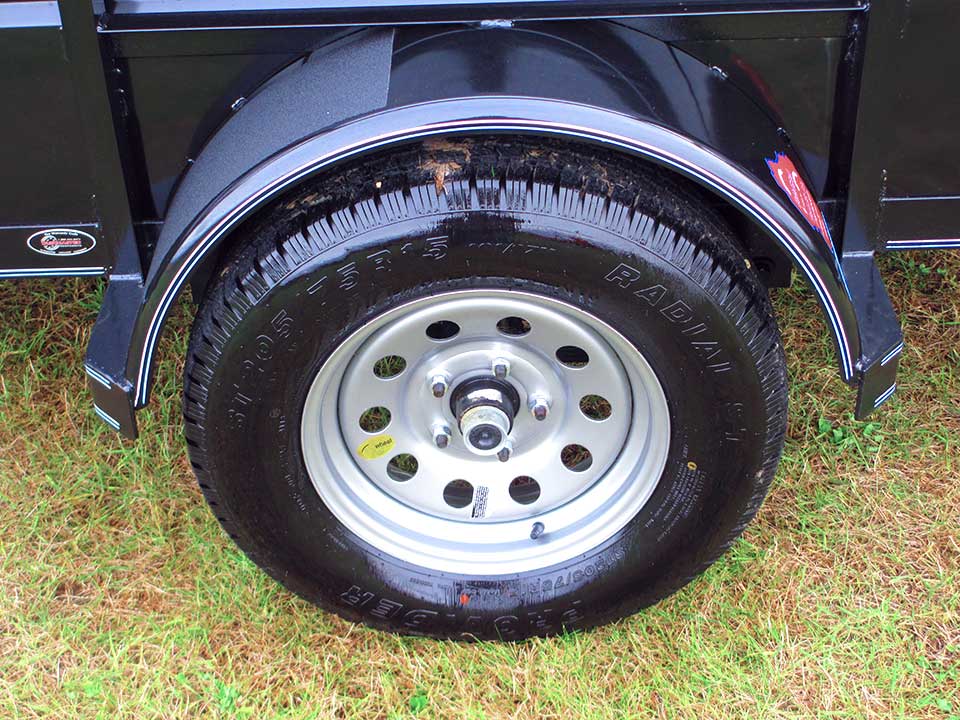

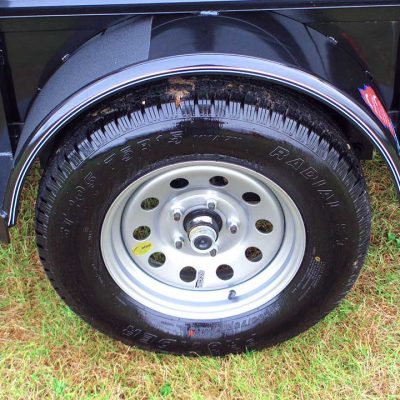

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels
Fenders: 9″x32″ 16 ga. smooth w/stoneguard

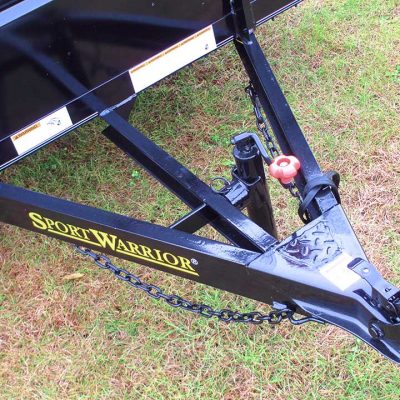

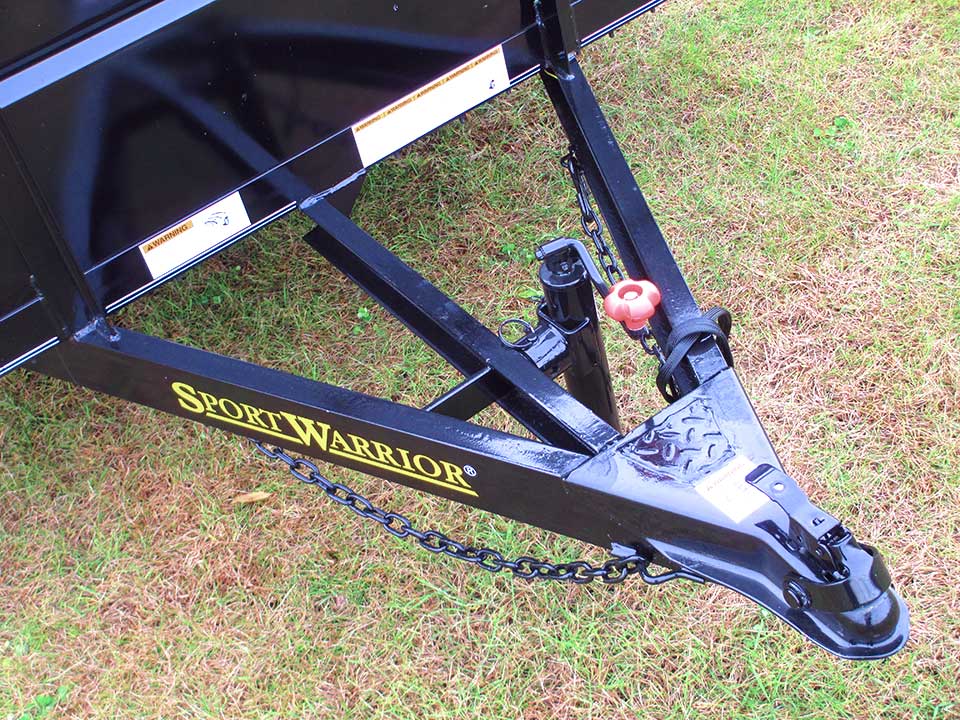

Hitch: 2″ A-frame w/safety chains
Jack: 2,000# pipe mount swivel jack
Structural: 4″ channel tongue, 2 X 3 X 3/16 crossmembers (24″ centers), 2 3/8″ pipe top rail & 2 X 2 X 3/16″ uprights

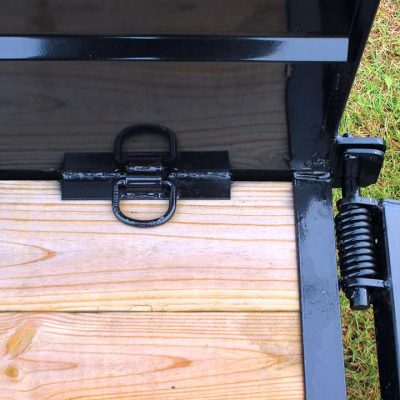

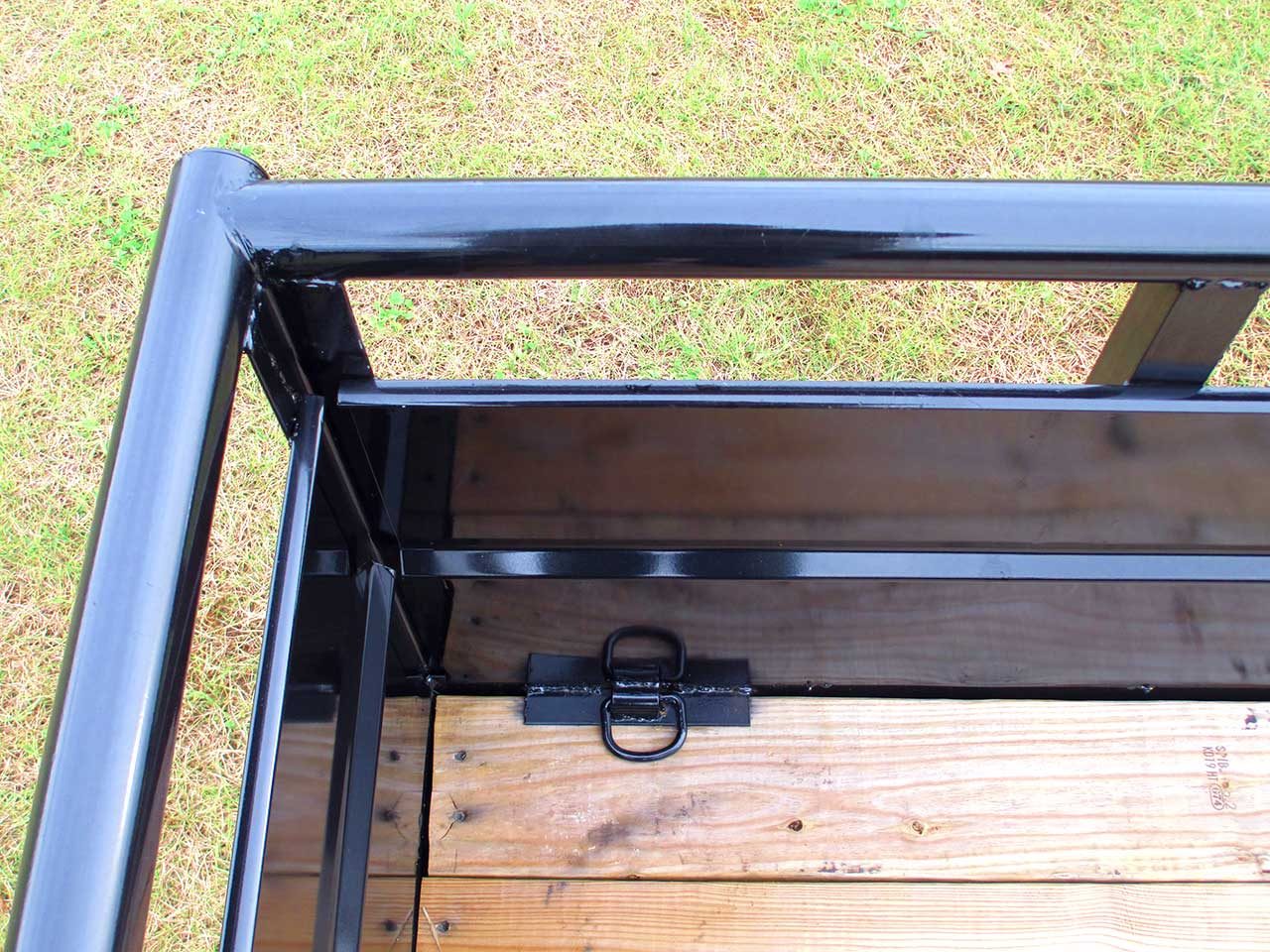

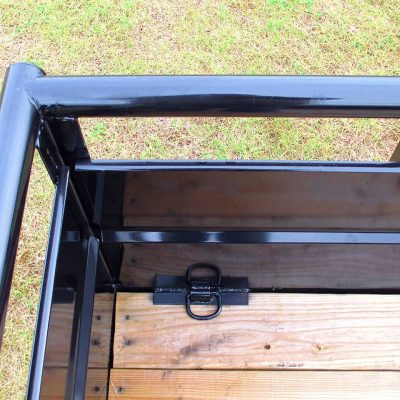

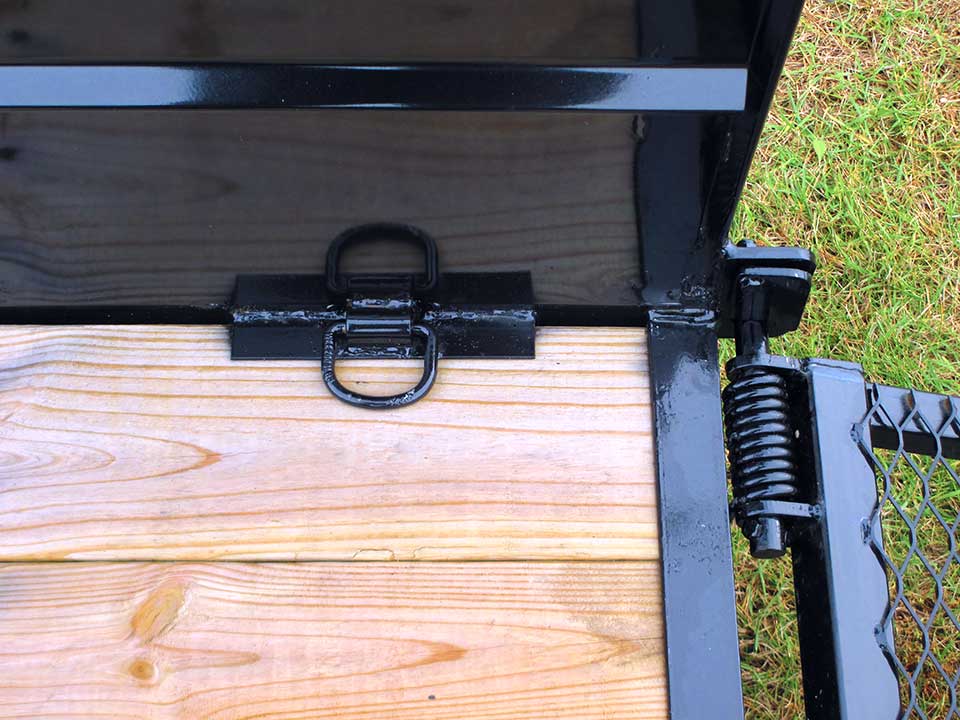

Tie Downs: 4 D-rings in box
Sides: Pre-formed solid steel panels w/V crimps, 2 3/8″ pipe top rail, 30″ height overall

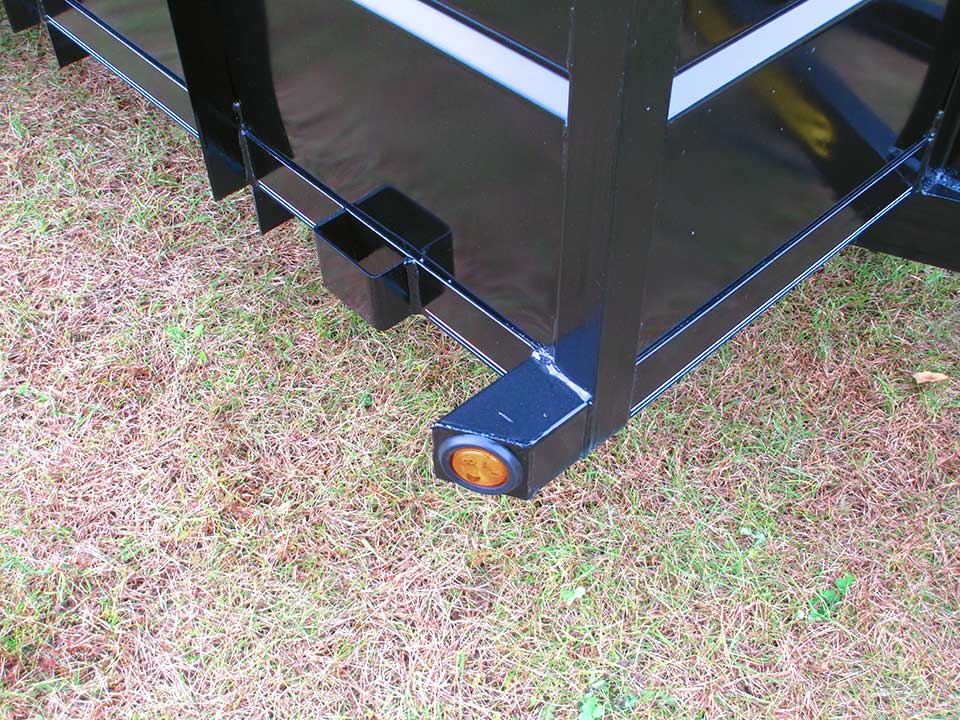

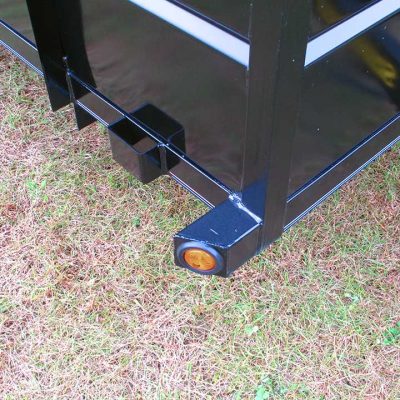

Electrical: LED lighting, license bracket w/light, wiring in conduit w/flat 4 way connector

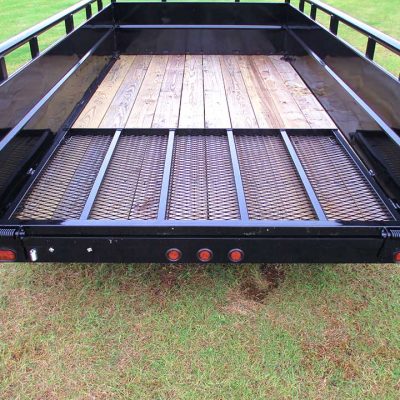

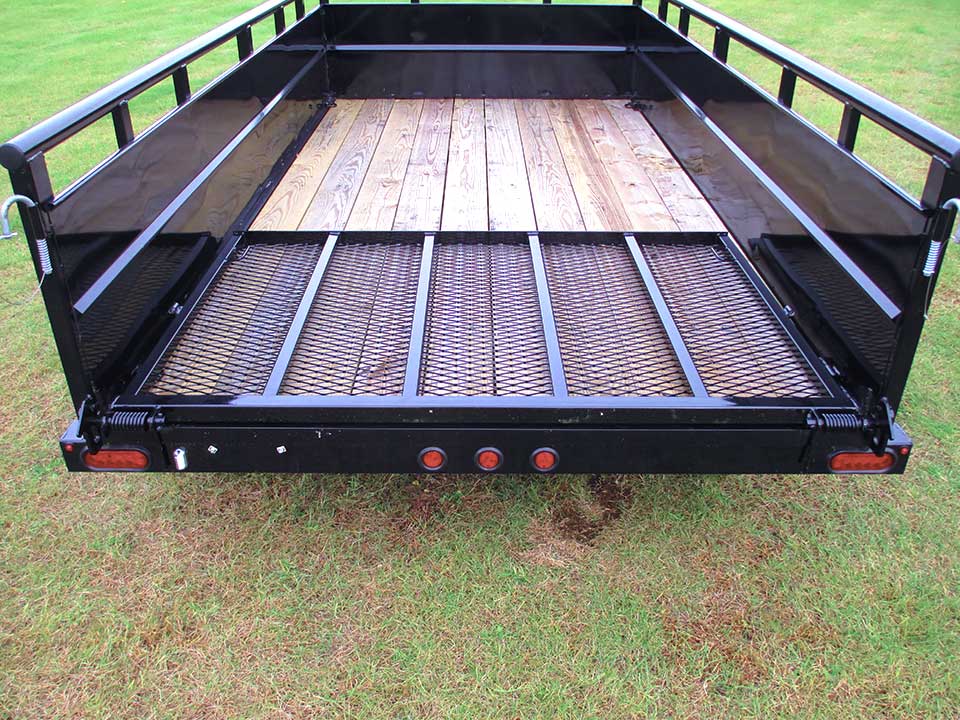

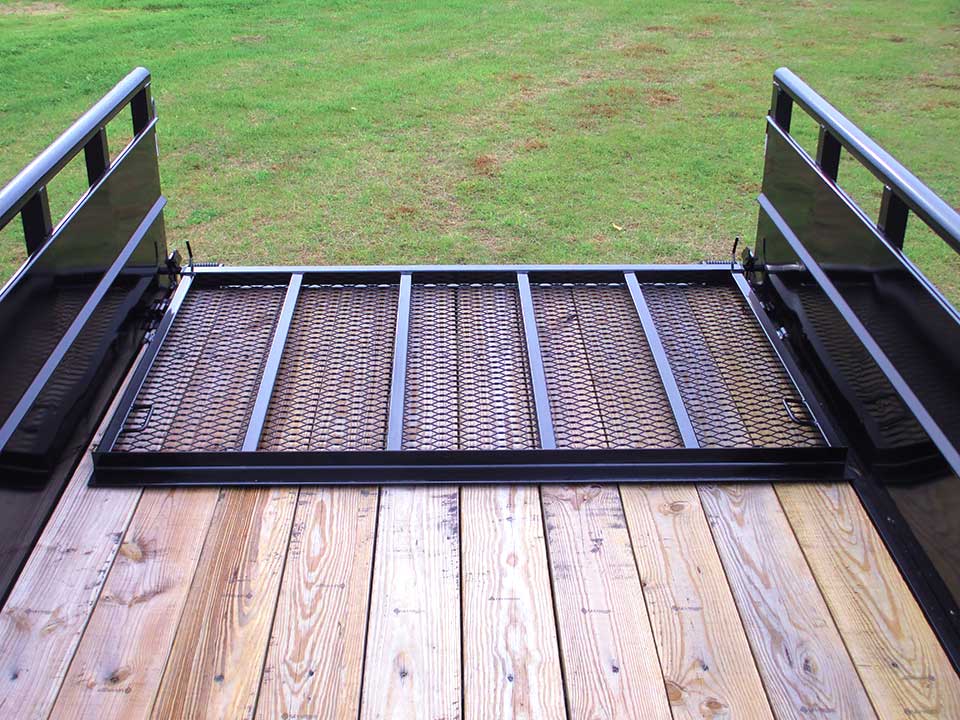

Floor: 2X8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call)



Bed Size & Prices

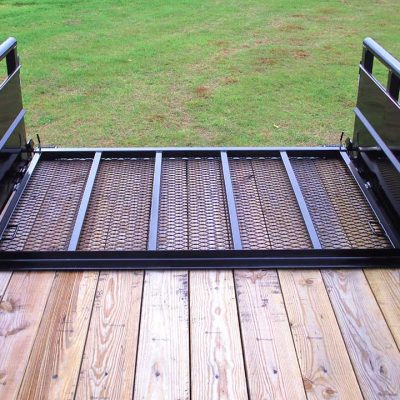

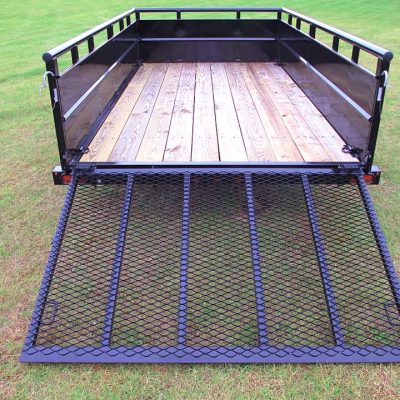

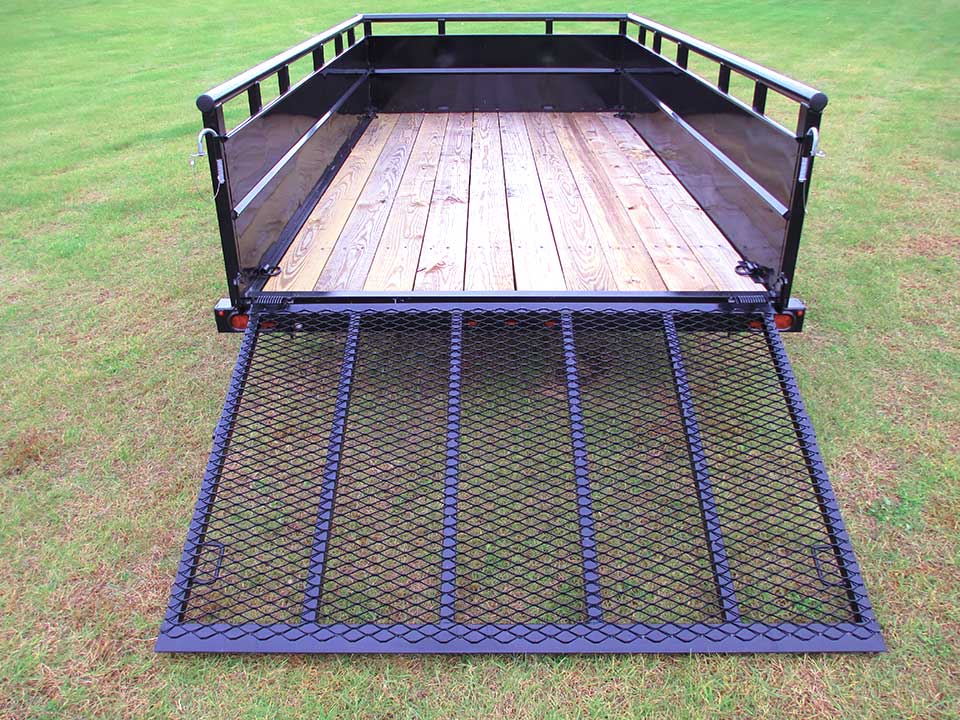

5′ X 8′ w/48″ ramp gate: $2,705

5′ X 10′ w/48″ ramp gate: $2,840

77″ X 10′ w/48″ ramp gate: $3,045

77″ X 12′ w/48″ ramp gate: $3,210

83″ X 12′ w/48″ ramp gate: $3,295

printable-brochure-button-250px

Some Options

 Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $150

Spare silver mod wheel w/o tire: $60

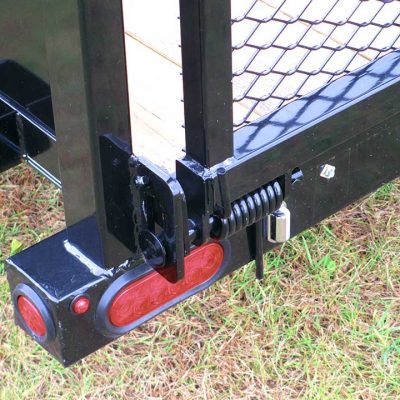

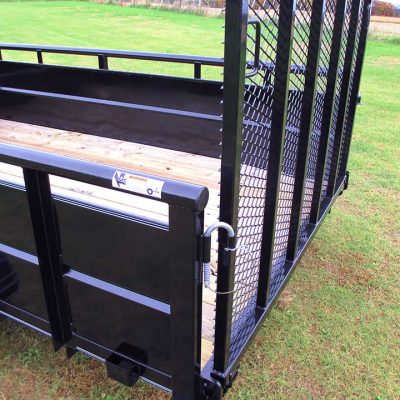

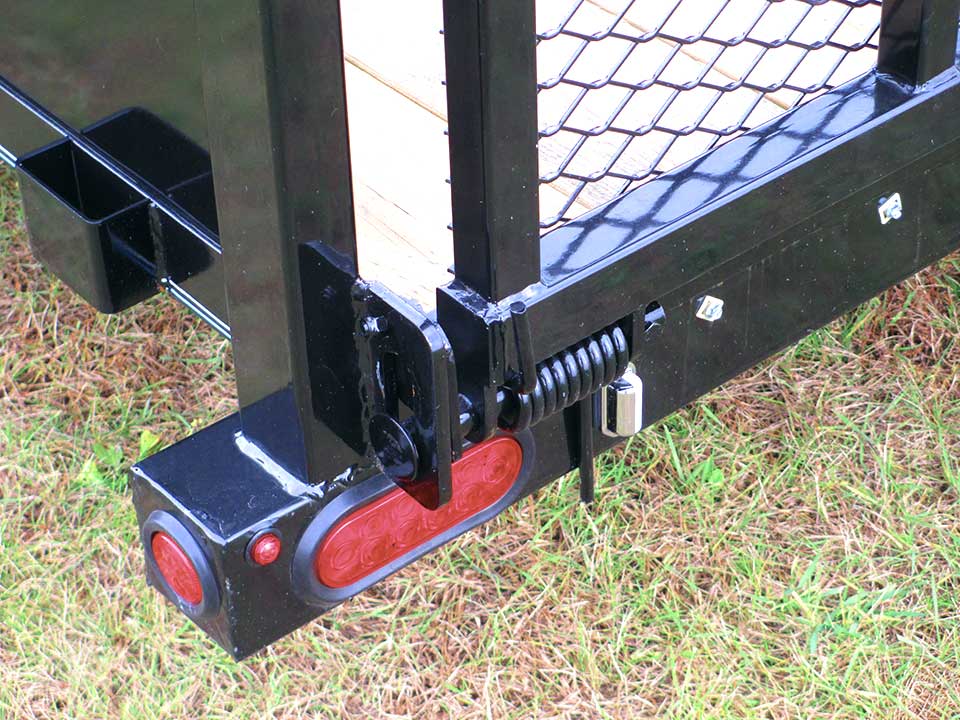

Ramp gate spring assist: $25 each. Note: Two springs required for 77″ and 83″ wides.

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
