5 Ton Car & Equipment Tilt Bed Trailer

 No ramps necessary with this 5 Ton Car & Equipment Tilt Bed Trailer!

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

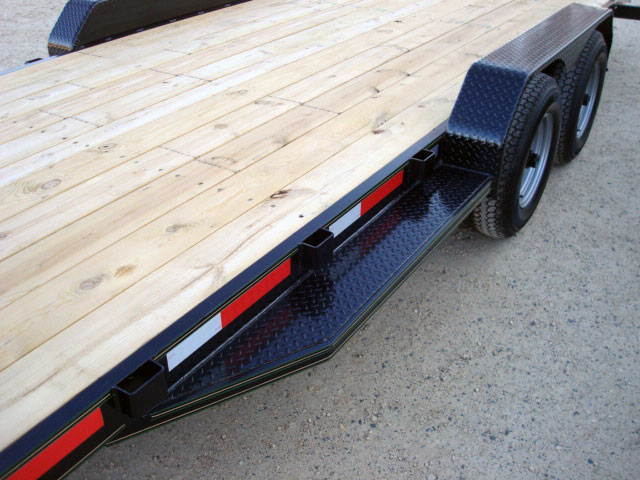

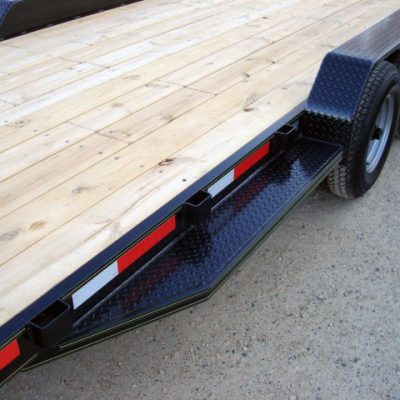

Running Boards

5 Ton Car & Equipment Tilt Bed Trailer

2 Speed Hydraulic Pump

No Ramps

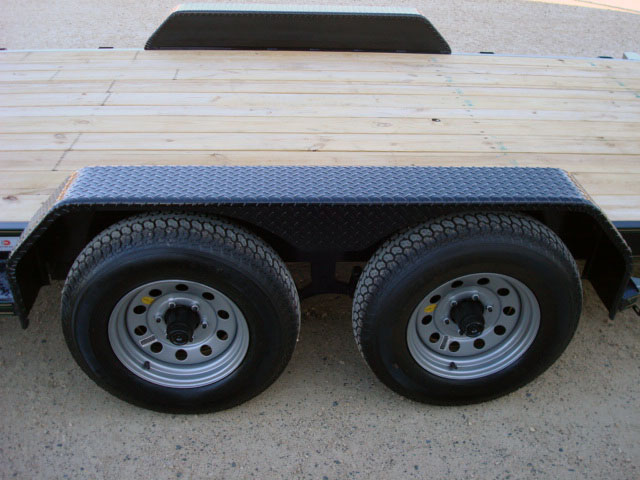

Treadplate Steel Fenders

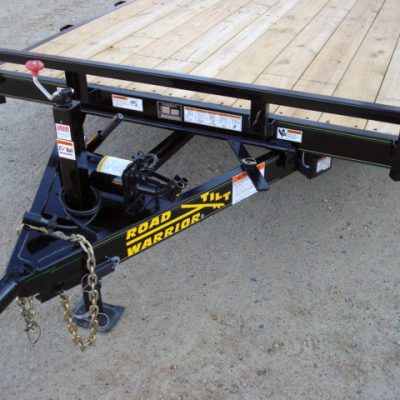

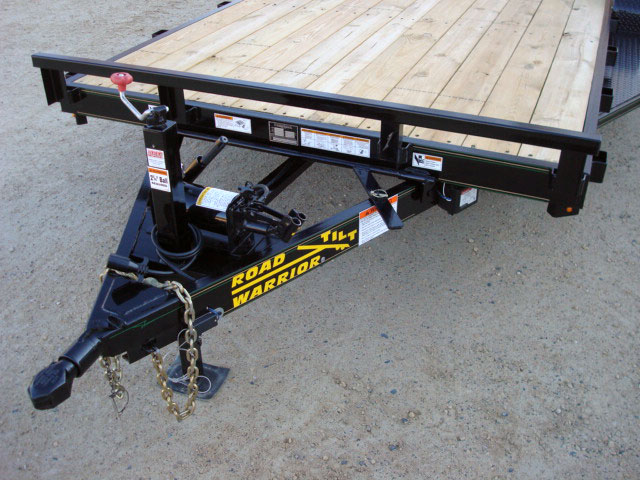

7000 Pound Dropleg Jack


Trailer may be shown with optional equipment.
Road Warrior Tilt Trailer
Specifications – 5 Ton Tilt Bed Equipment
Weight Rating: 10,000 LBS. GVWR w/evenly distributed load
Axles: 2 – 5,200# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 5 leaf double eye springs
Tires & Wheels: ST225/75 R15 load range D tires, 6×5.5 bolt pattern silver mod wheels
Feature: Spare tire mount

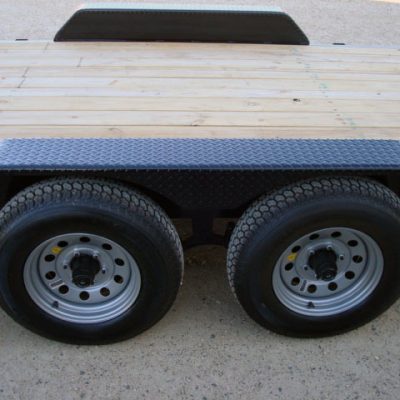

Fenders: 9″x72″ 14 ga. treadplate teardrop w/stoneguard
Hitch: 2 5/16″ Bulldog with H.D. safety chains
Jack: 7,000# topwind, drop leg
Structural: 5″ channel frame & tongue, 3″ channel crossmembers (16″ centers), special 1/8″ treadplate tail section & running board steps
Tie Downs 14 stake pockets

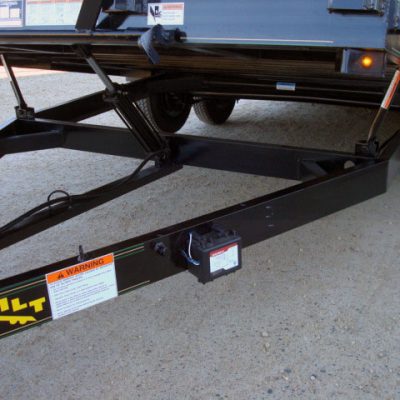

Tilt: Special 2 speed hand hydraulic pump w/cylinder, pump handle storage, special cam lock bed latch system

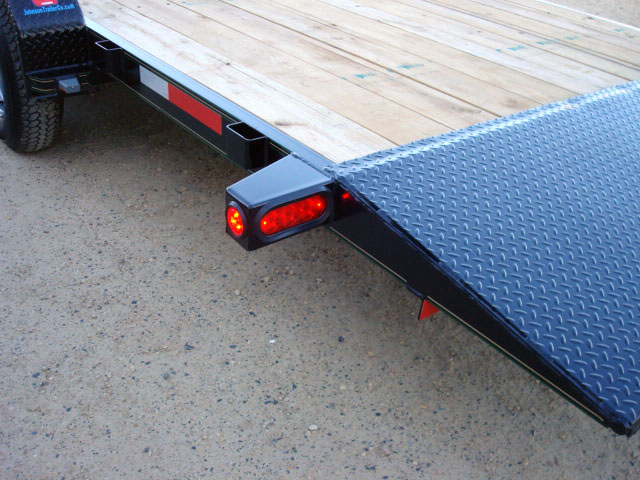

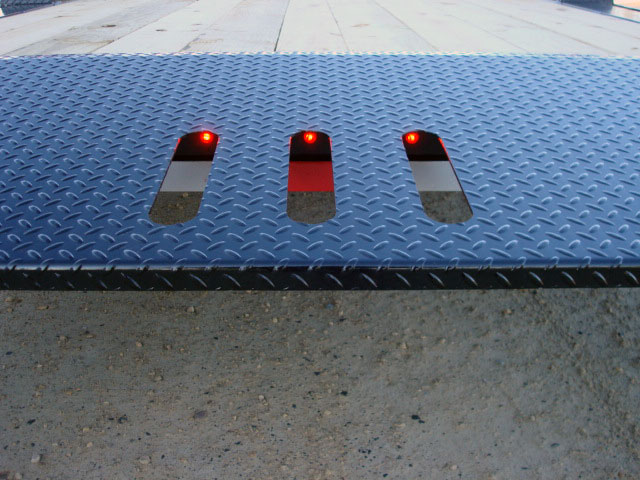

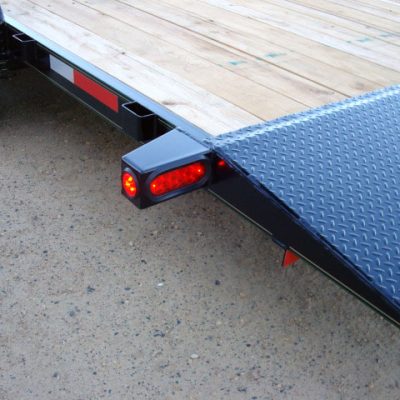

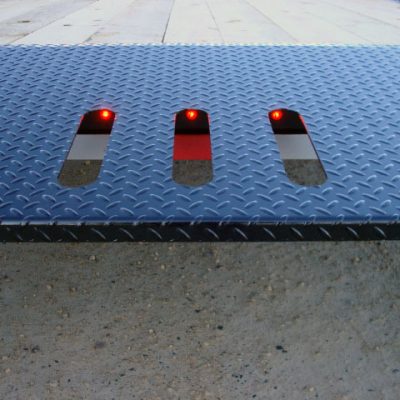

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape
Floor: 2 X 8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow


Bed Size & Prices

83″ X 20′: $5,840

83″ X 22″: $5,950

 Click to view 3.5 ton car hauler tilt bed trailer

 Click to view 7 ton equipment full bed tilt trailer

 Click to view 7 ton equipment gravity tilt bed trailer


Some Options

Now standard with LED lights: N/C

Spare ST 225/75 R15 LR “D” tire w/silver mod wheel: $190

Spare silver mod wheel w/o tire: $60

2 5/16 ball coupler or pintle hitch: N/C

102″ wide package w/drive over fenders: $700 Click to view 102 package

Electric/hydraulic lift w/power up – power down (in lieu of hand operated): $660

Ramp Extenders (for low clearance vehicles): $395 Click to view ramp extenders

Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
