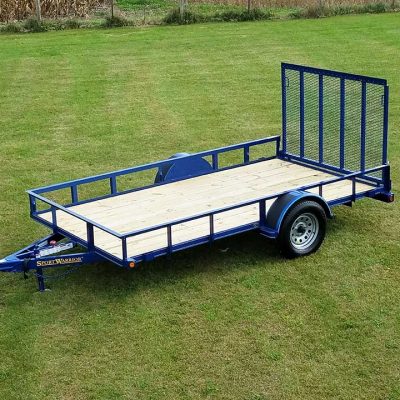

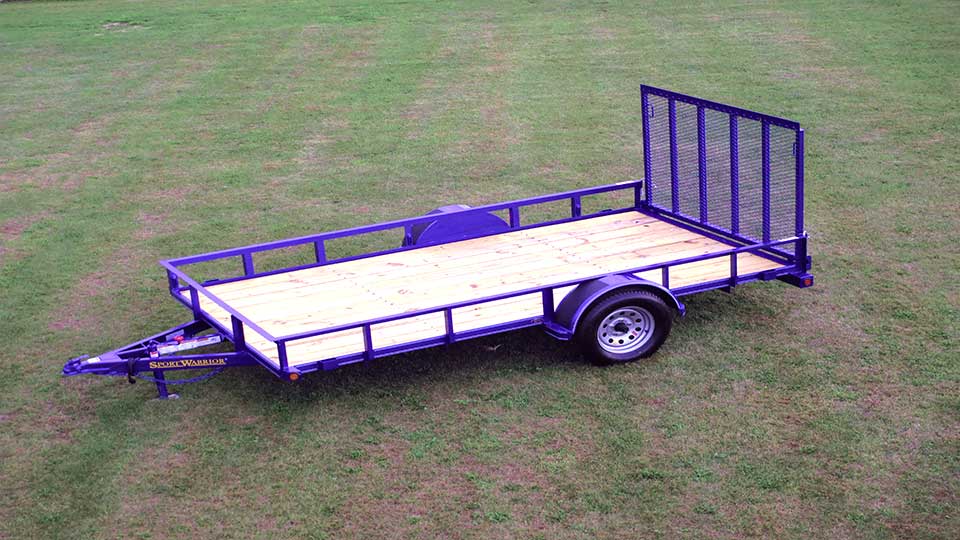

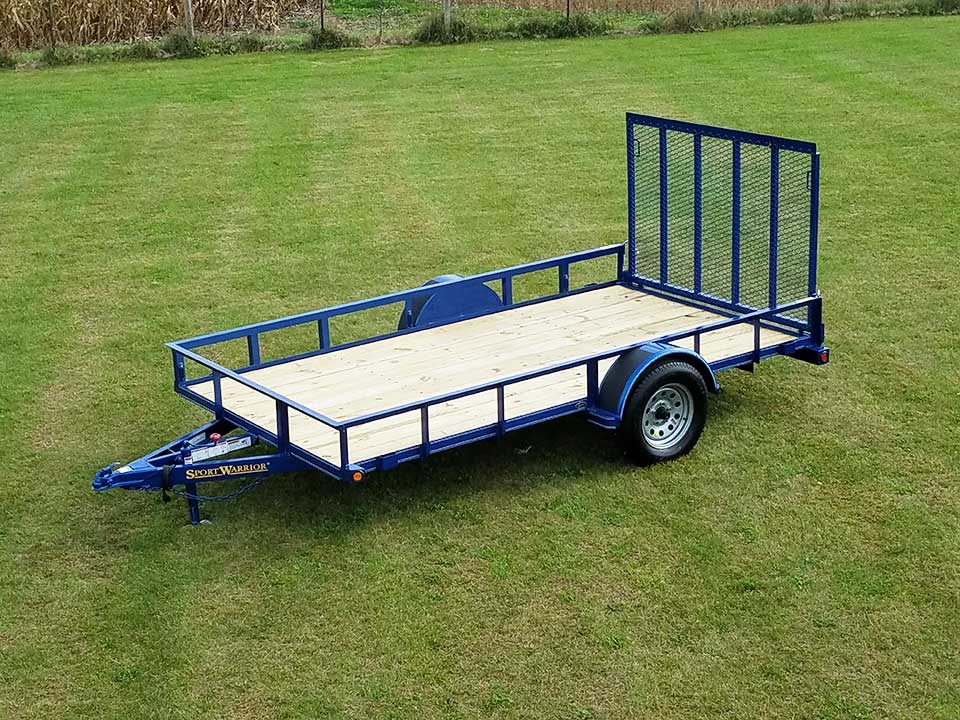

Single Axle Trailer w/Side Rails

 Our most popular single axle trailer

Expoxy Ester Primer

Wiring in Conduit

Dexter Axles

15 inch tires

2x8 Treated Pine Floor

Gravel Guard

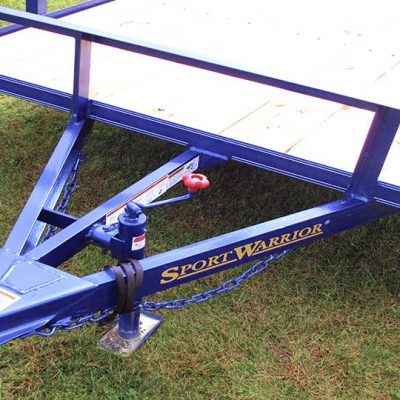

A-Frame Tongue

Pipe Mount Swivel Jack



Trailer may be shown with optional equipment.
Sport Warrior Trailer
Specifications- Single Axle Trailer w/Side Rails
Weight Rating: 2,990 LBS. GVWR w/evenly distributed load
Axle: 1 – 3,500# w/ez-lube
Suspension: 4 leaf double eye springs

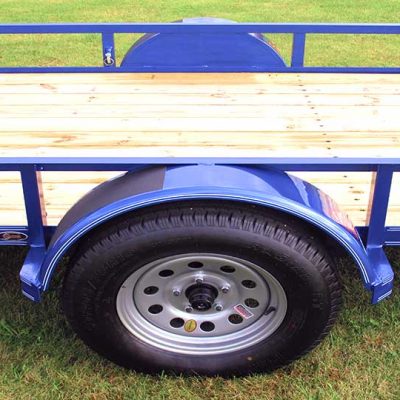

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels
Fenders: 9″x32″ 16 ga. smooth w/stoneguard
Hitch: 2″ A-frame w/safety chains
Jack: 2,000# pipe mount swivel jack
Structural: 2X3X3/16 frame & crossmembers (24″ centers), 2X2X1/8 top rail & uprights, 4″ channel tongue

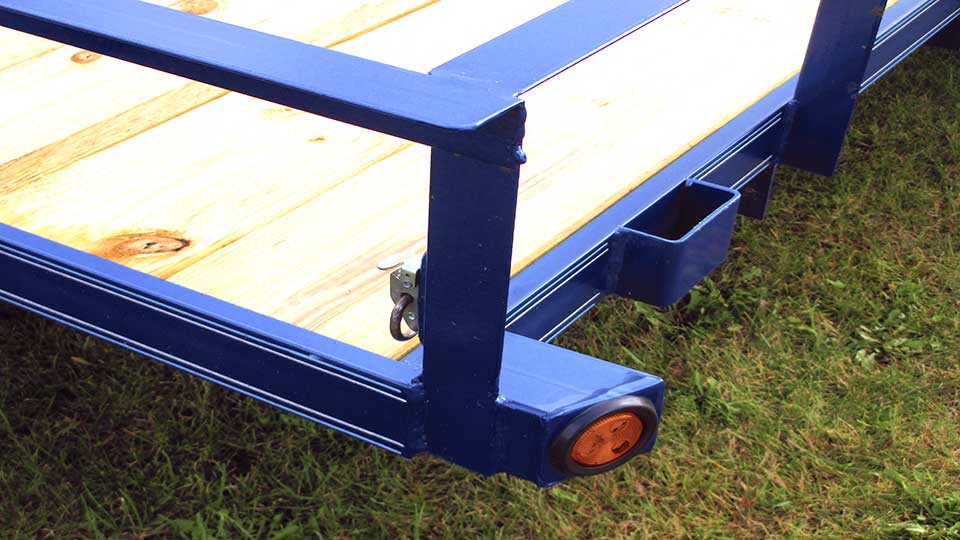

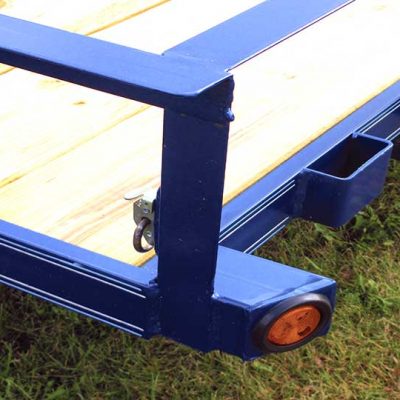

Tie Downs: Trailer equipped with 6 SNAP-LOC tie down sockets. (8′ length trailer equipped with 4) Snap in rings are shown in options list.

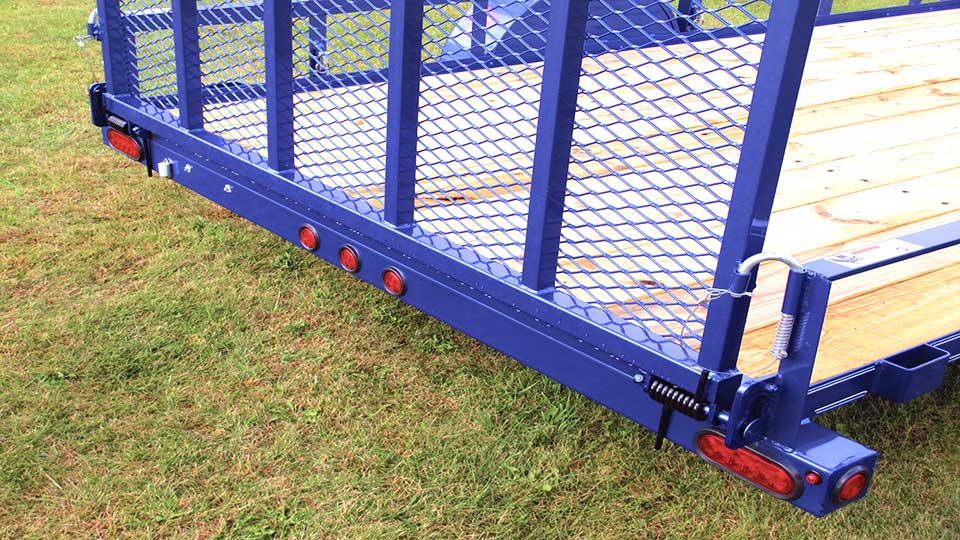

Electrical: LED lighting, license bracket w/light, wiring in conduit w/flat 4 way connector

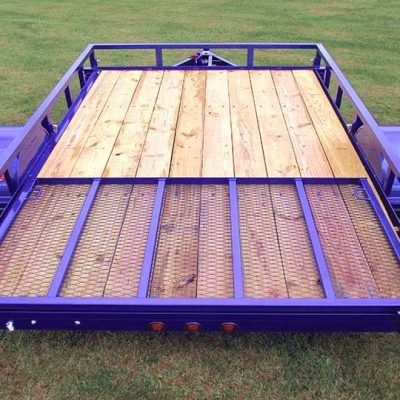

Floor: 2X8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call)



Bed Size & Prices

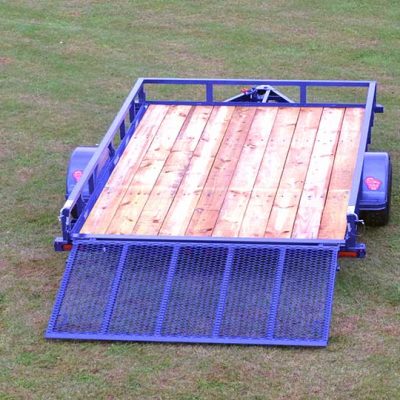

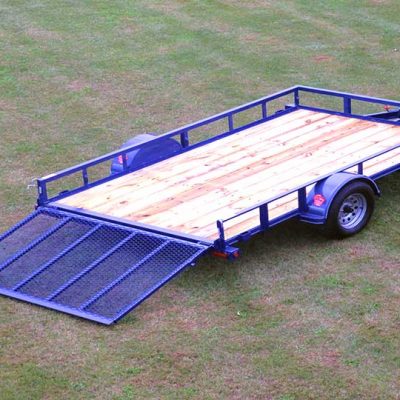

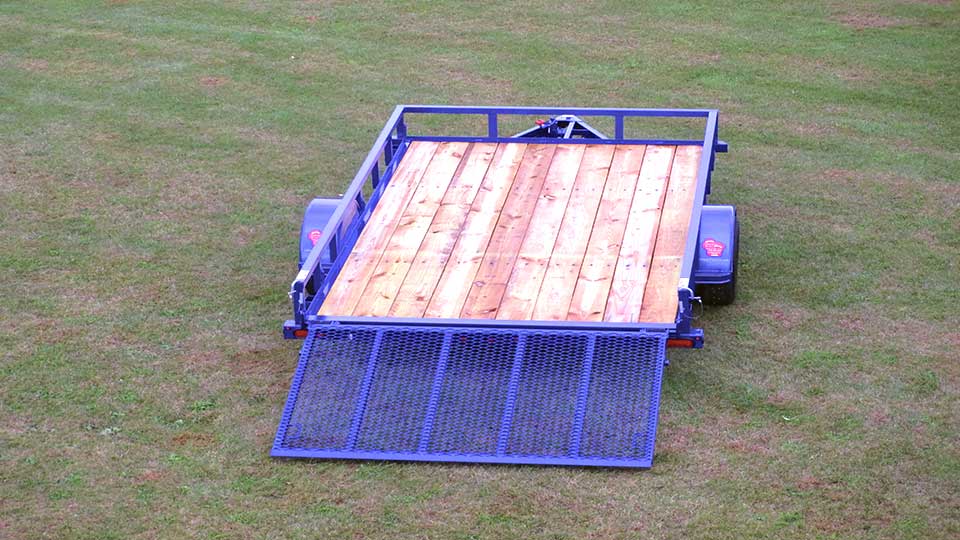

5′ X 8′ w/48″ ramp gate: $2,140

5′ X 10′ w/48″ ramp gate: $2,170

5′ X 14′ w/48″ ramp gate: $2,340

77″ X 10′ w/48″ ramp gate: $2,390

77″ X 12′ w/48″ ramp gate: $2,445

77″ X 14′ w/48″ ramp gate: $2,510

83″ X 12′ w/48″ ramp gate: $2,540

83″ X 14′ w/48″ ramp gate: $2,610

 83″ X 12′ w/48″ ramp gate: Special ATV hauling option #1 – Special ATV hauling option #2

 83″ X 14′ w/48″ ramp gate: Special ATV hauling option #1 – Special ATV hauling option #2

printable-brochure-button-250px

Some Single Axle Trailer Options

 Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $150

Spare silver mod wheel w/o tire: $60

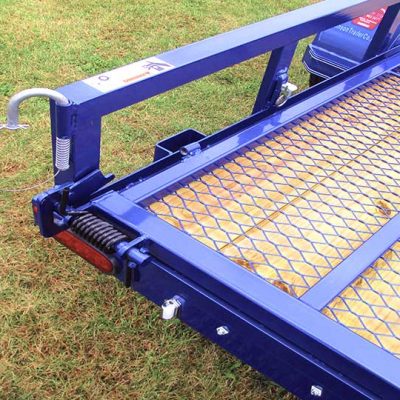

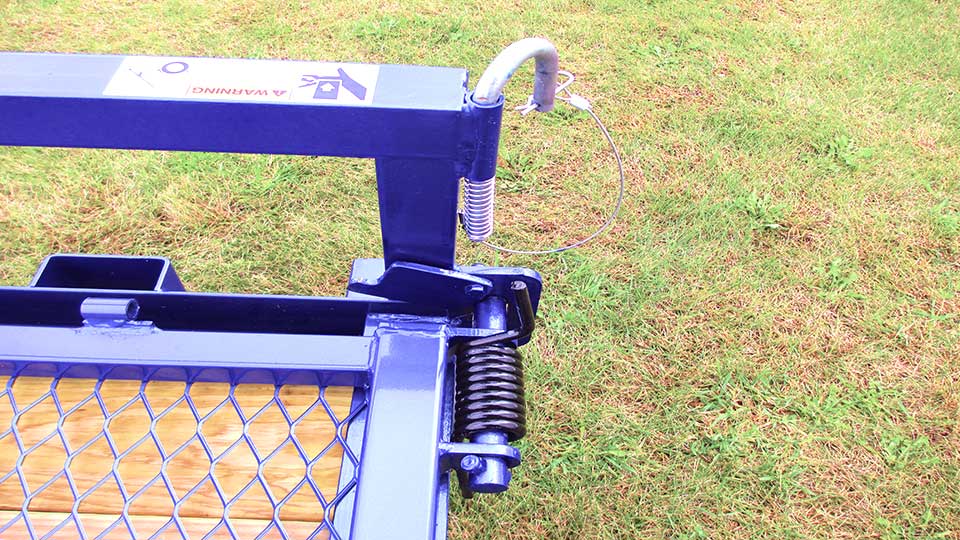

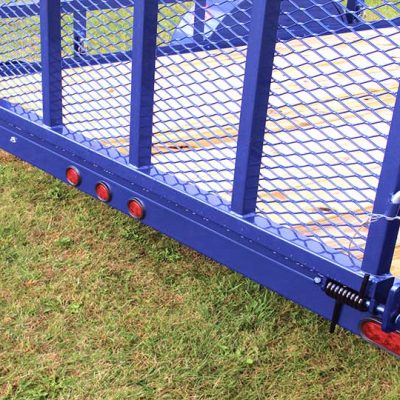

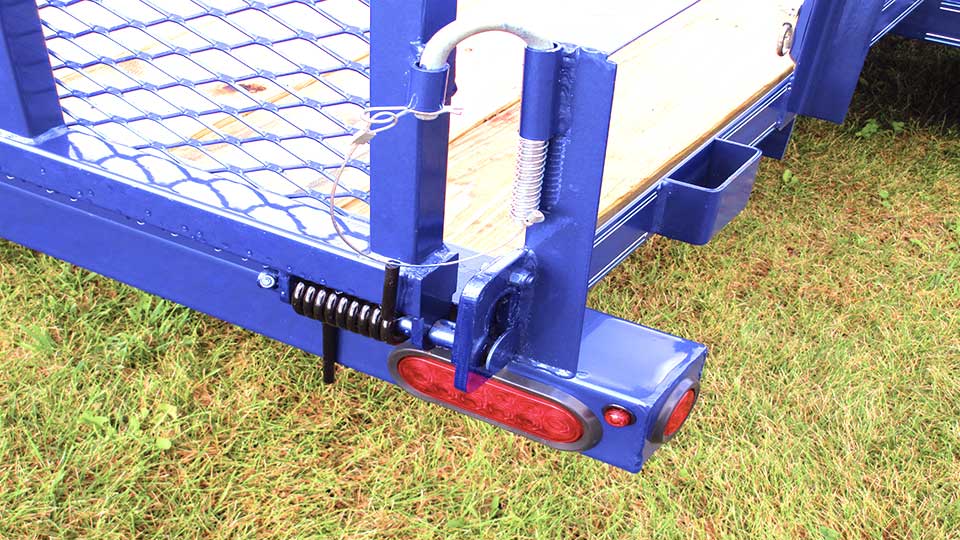

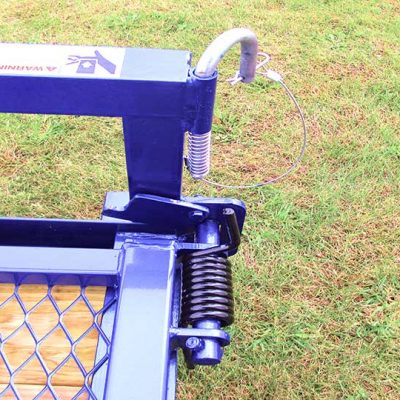

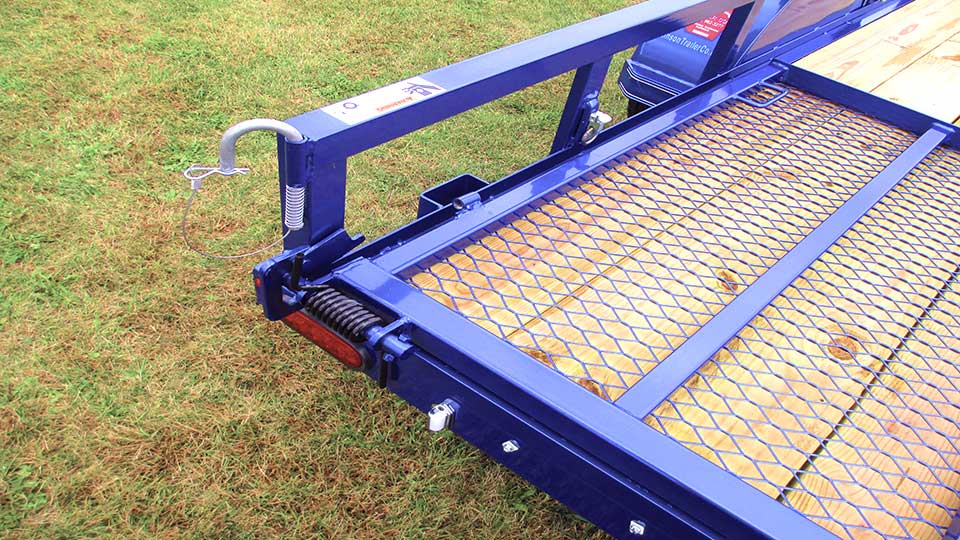

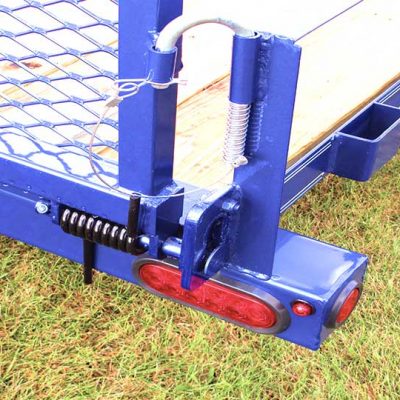

Rampgate spring assist: $25 each. Note: One spring required for 5′ wide, two required for 77″ and 83″ wides

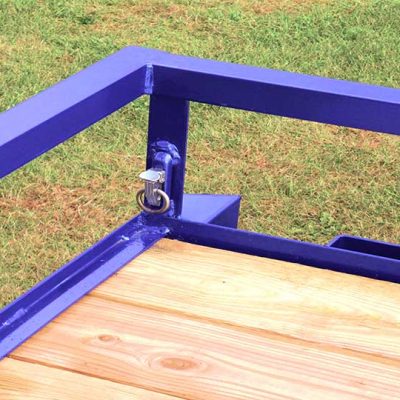

 SNAP-LOC tie down rings: $5 each

Note: Trailer comes already equipped w/6 E-track sockets (8′ length trailer comes with 4).(SNAP-LOC tie down rings sold separately).

 Complete SNAP-LOC tie down system.

 Side ramp package

 ATV package

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
