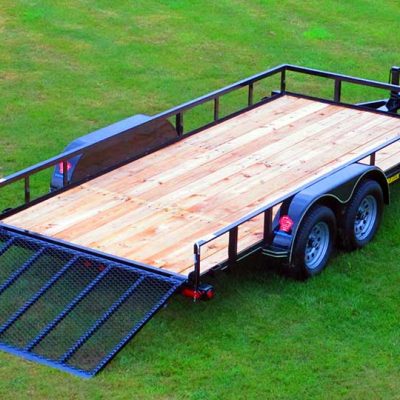

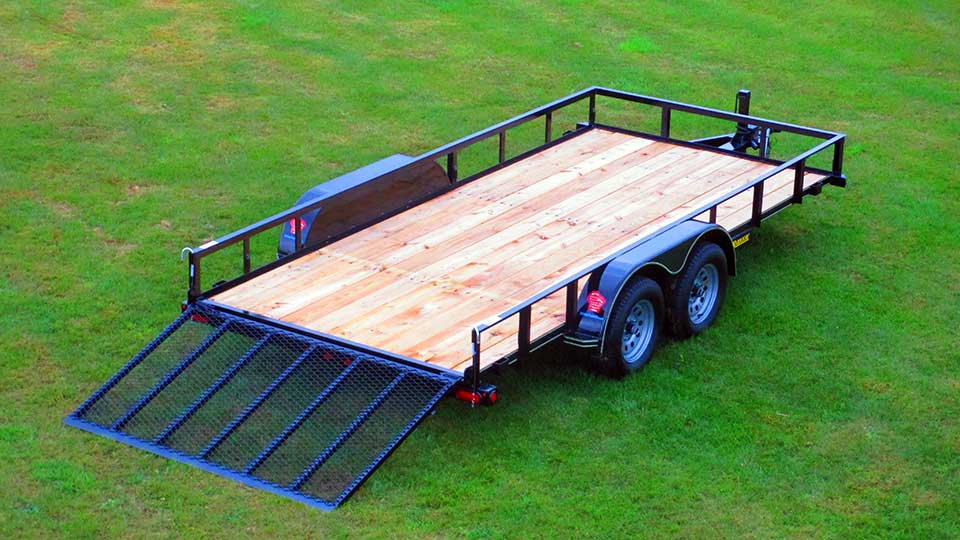

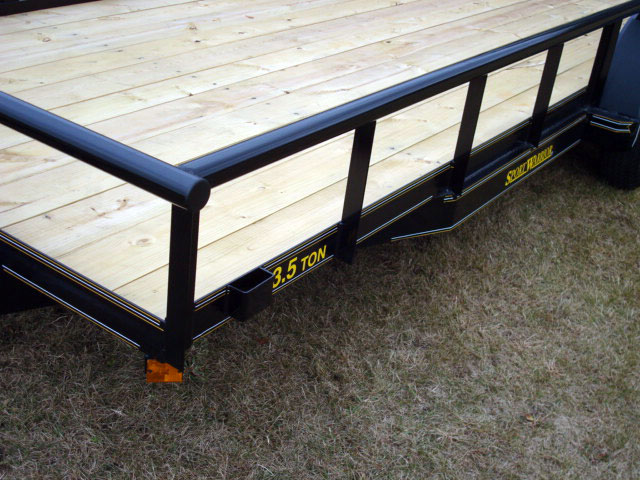

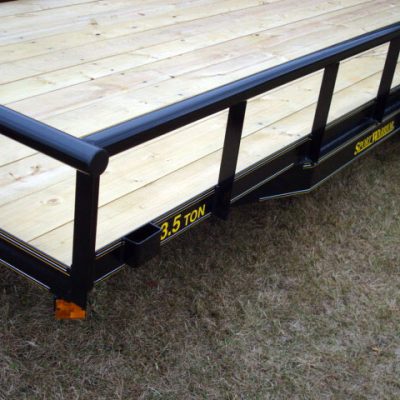

Tandem Axle Utility Trailer
• This tandem axle utility trailer has a wide range of uses – with a ramp gate option this makes a great
trailer for hauling atv’s, lawn mowers, and much more. •
| Specifications – Tandem Axle Utility Trailer |
| Weight Rating: 7,000 LBS. GVWR w/evenly distributed load |
| Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger |
| Suspension: 4 leaf double eye springs |

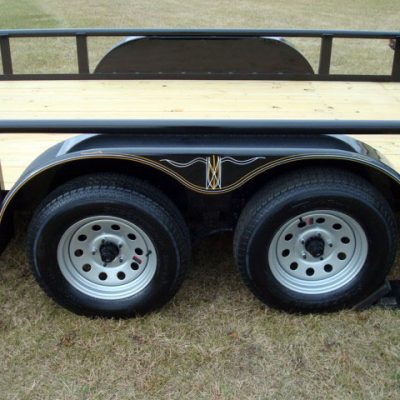

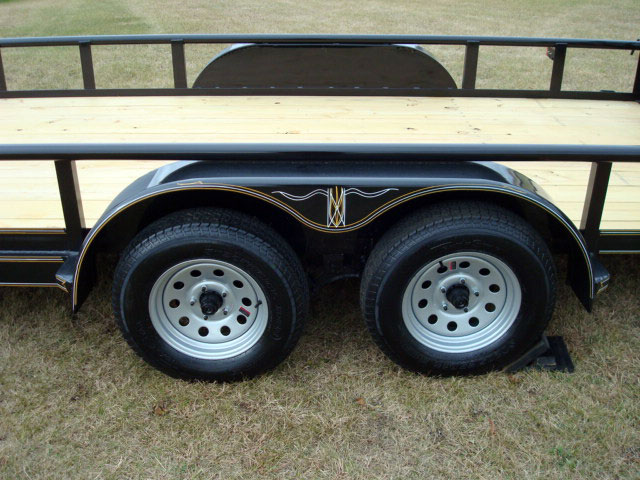

| Tires & Wheels: ST205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels |
| Fenders: 9″x72″ 16 ga. smooth w/stoneguard |

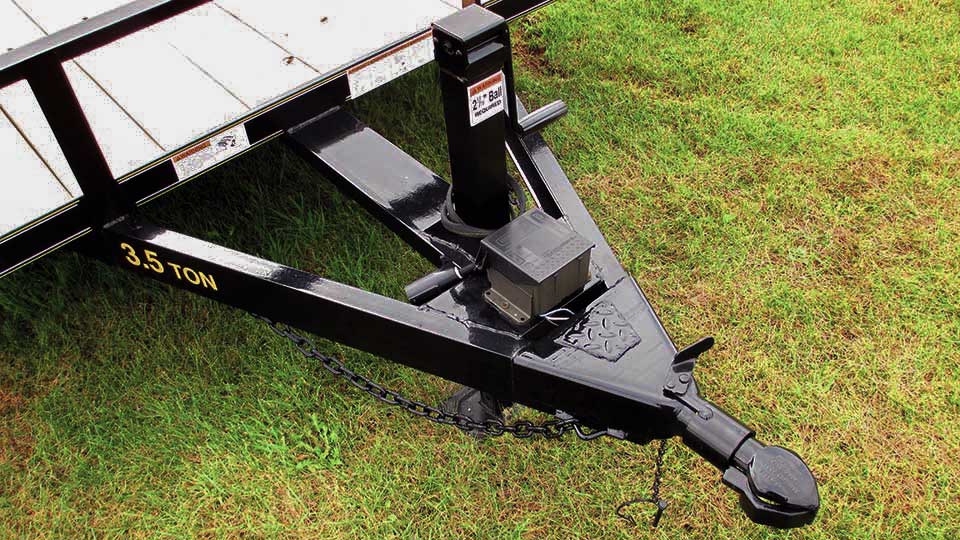

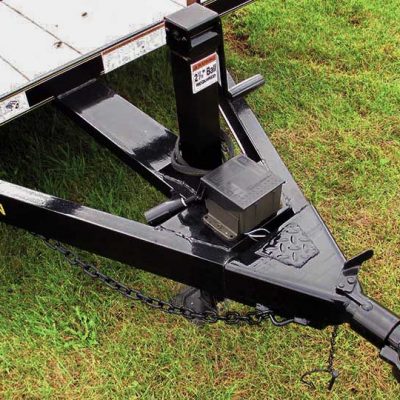

| Hitch: 2 5/16″ Bulldog |
| Jack: 7,000# dropleg jack |
| Structural: 4″ channel full wrapped tongue, 2 X 3 X 3/16 frame & crossmembers (24″ centers), 2 X 2 X 1/8 top rail & uprights |
| Structural w/H.D. Package: 5″ channel full wrapped tongue, 3 X 4 X 1/4 frame, 2 3/8 top rail, 2 X 2 X 3/16 uprights, 3″ channel crossmembers (24″ centers) |

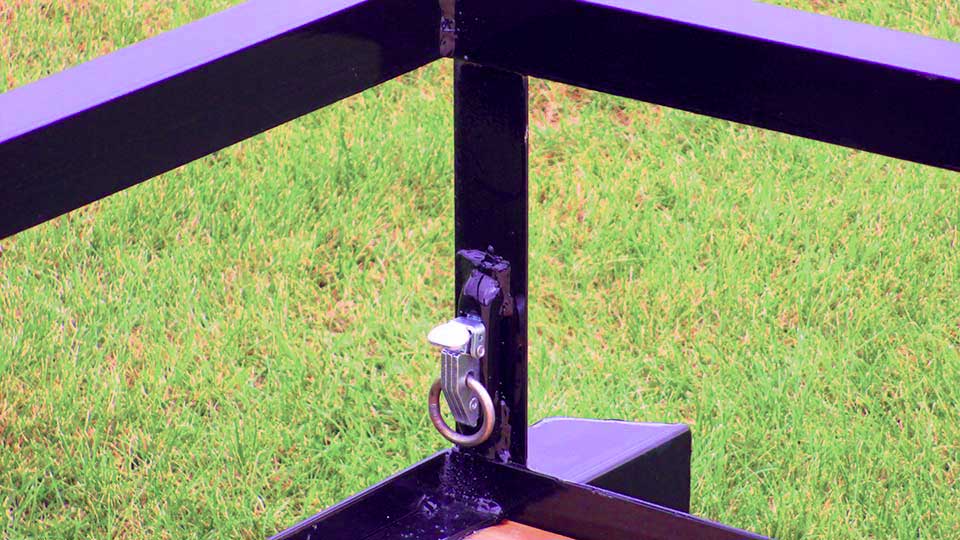

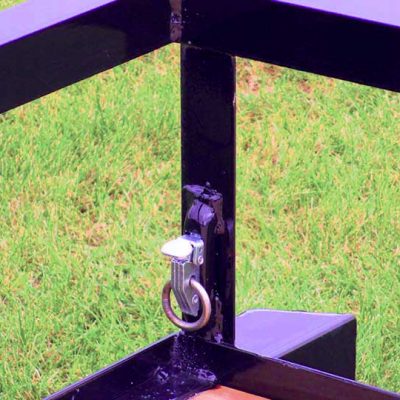

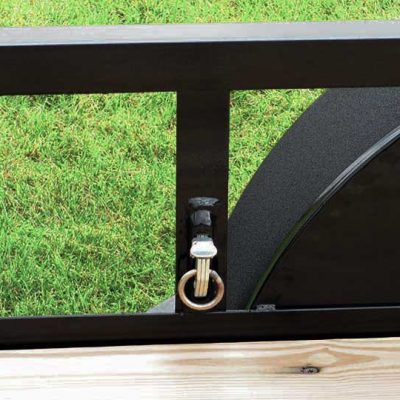

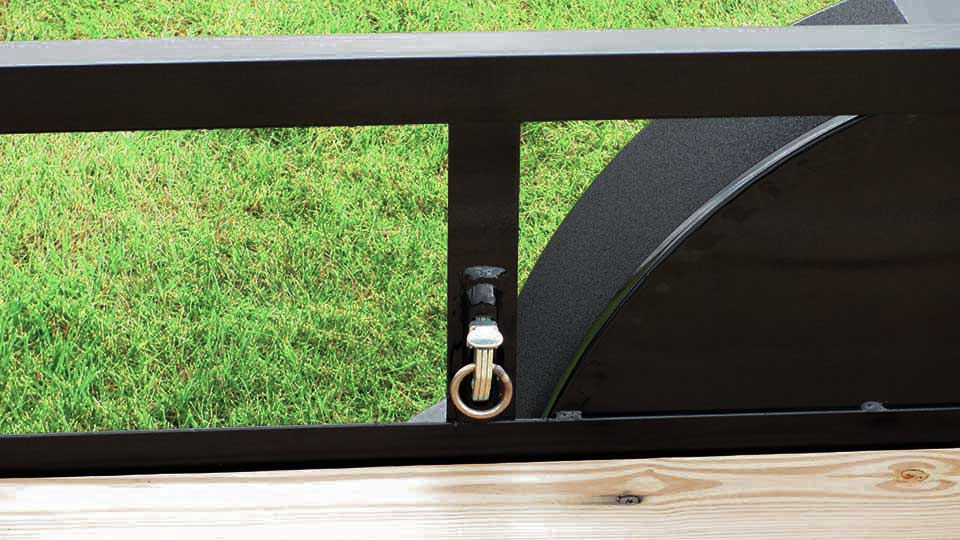

| Tie Downs: Trailer equipped with 6 SNAP-LOC tie down sockets. Snap in rings are shown in options list. |

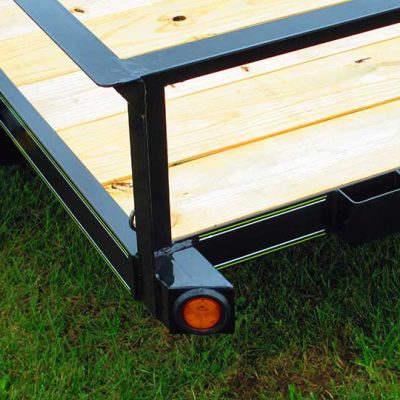

| Electrical: LED lighting, license bracket w/light, wiring in conduit w/7 way connector |

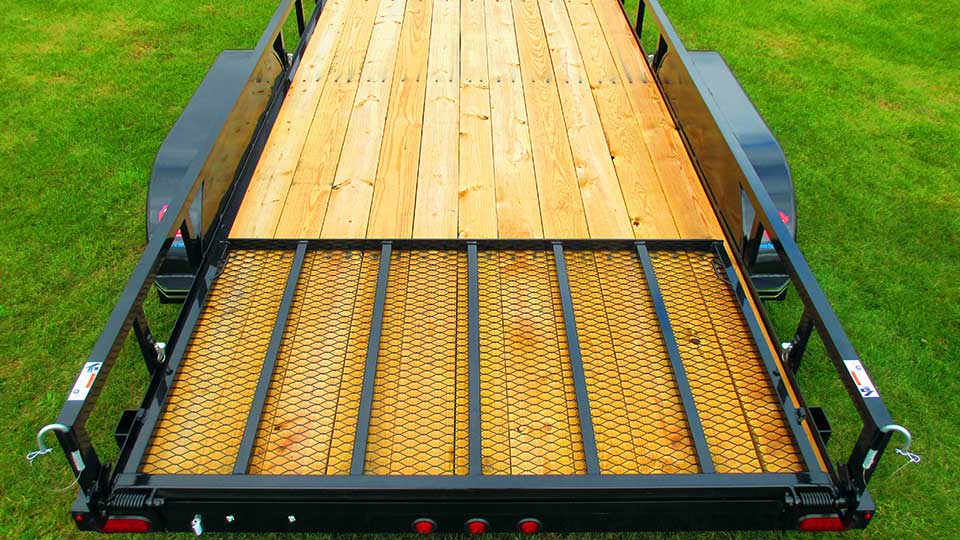

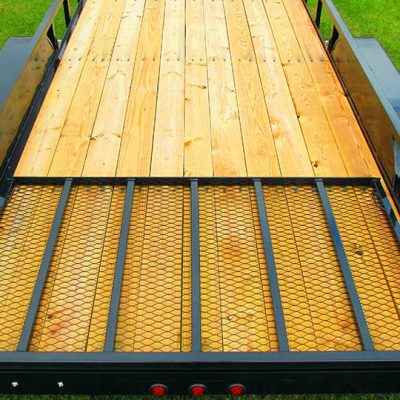

| Floor: 2X8 treated yellow pine decking |
| Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call) |
| Note: Prices do not include ramp gate or ramps (see choices listed in options category.) |
Bed Size & Prices
• 77″ X 12′: $3,785
• 77″ X 14′: $3,825
• 77″ X 16′: $3,903
• 83″ X 12′: $3,875
• 83″ X 14′: $3,925
• 83″ X 16′: $4,020
• 83″ X 16′ w/H.D. Pkg: $4,360
• 83″ X 18′ w/H.D. Pkg: $4,505
• 83″ X 20′ w/H.D. Pkg: $4,615
• 83″ X 22′ w/UTV Pkg & 48″ standard ramp gate: $5,115
• 83″ X 24′ w/UTV Pkg & 48″ standard ramp gate: $5,245
Some Options
• Spare ST205/75 R15 LR “C” tire w/silver mod wheel: $150
• Spare silver mod wheel w/o tire: $60
• 5′ wide bed (in lieu of 77″ or 83″):N/C

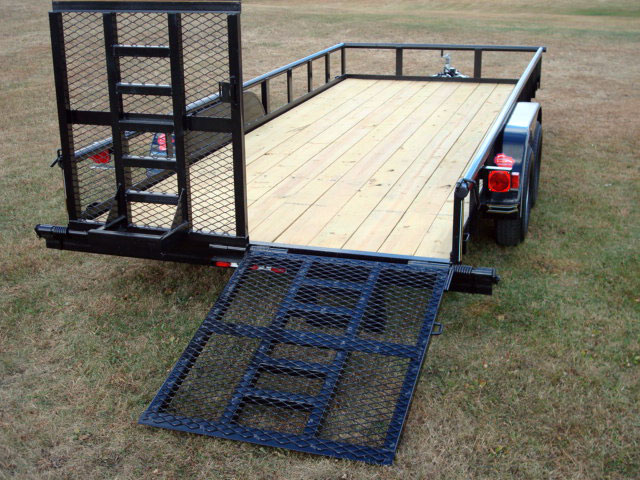

• 48″ standard ramp gate: 5′ wide: $200 or 77″ wide: $220 or 83″ wide: $235
• 5′ standard ramp gate: all widths: $300

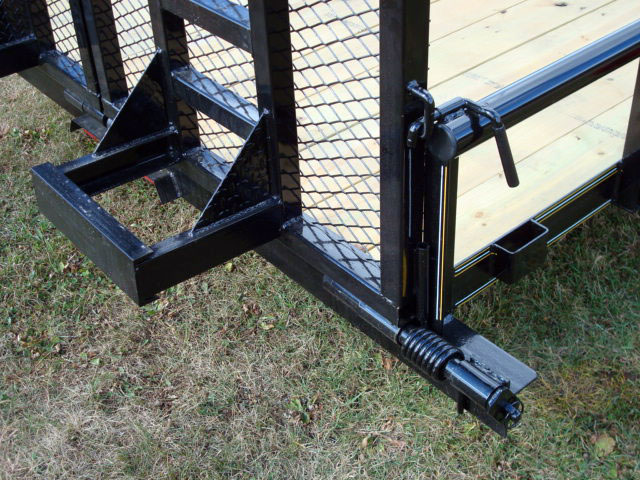

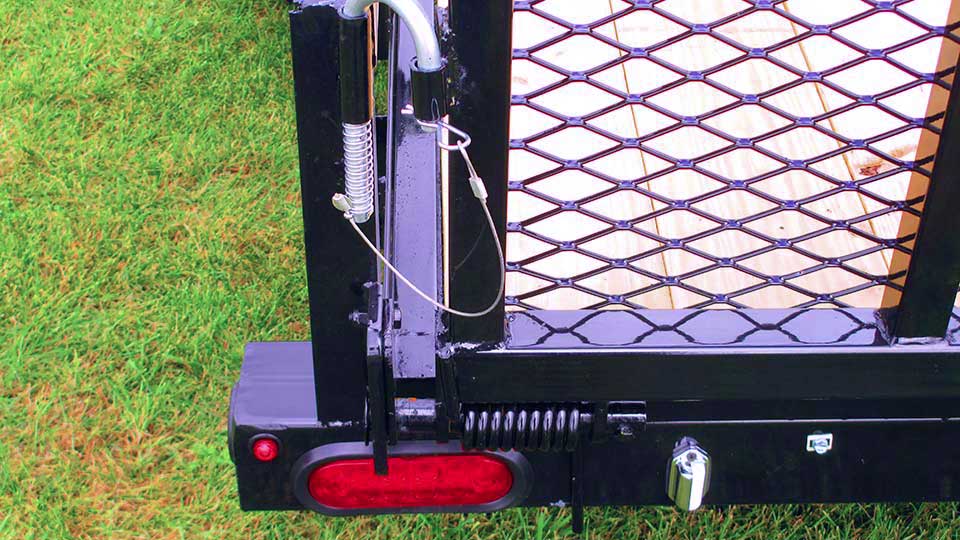

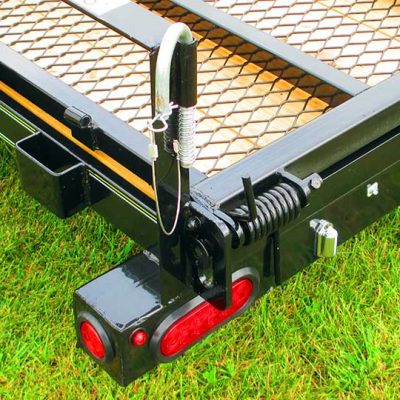

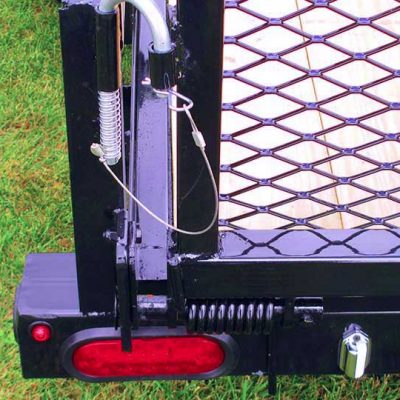

• Ramp gate springs for standard ramp gate (2 required): $25 each

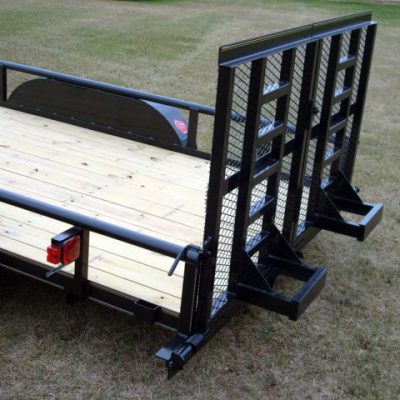

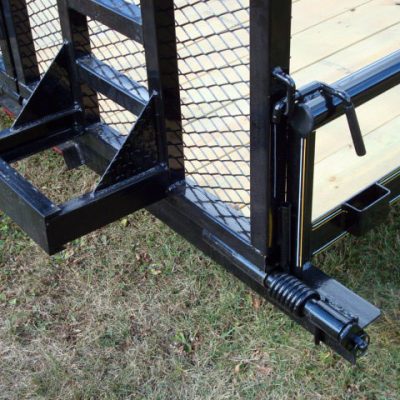

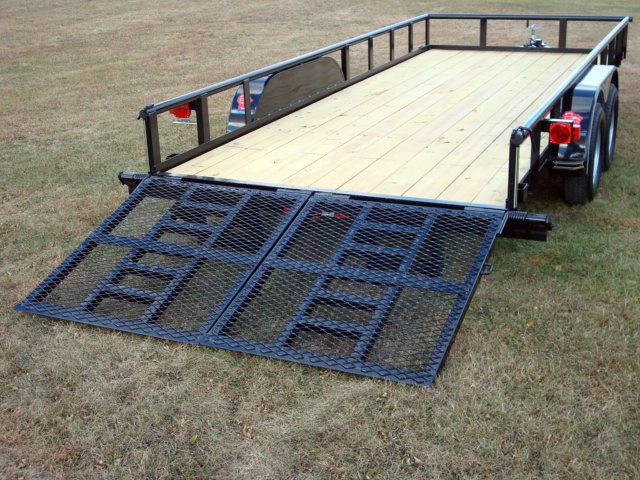

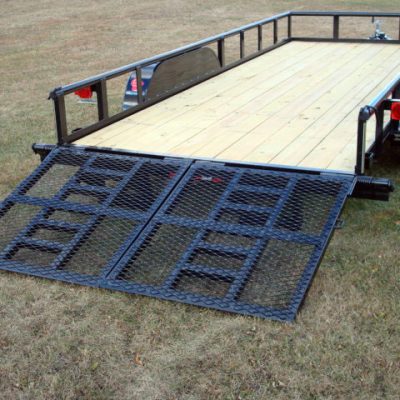

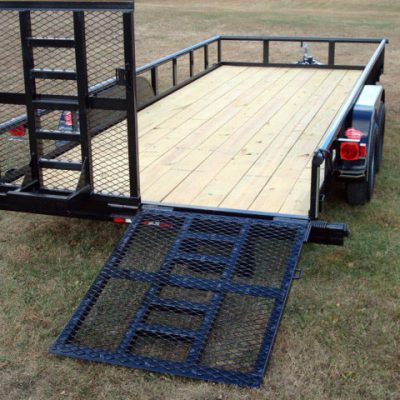

• 48″ split tractor ramp gate w/knees & spring: $495
• 5′ split tractor ramp gate w/knees & spring: $550
• 5′ slide-in ramps w/storage pockets: $220
• UTV Pkg (Used only on 22′ and 24′ lengths and included in base price): 4x3x1/4 frame, 2x2x3/16 uprights and top rail
• H.D. Package: 4X3X1/4 Frame, 5″ channel tongue, 2X2X3/16 uprights, 2 3/8 pipe top rail, 3″ channel cross members (24″ centers): $340
• 9,990# GVW Pkg: (Includes HD Pkg and available on all lengths through 20′) 5200# electric brake axles, ST225/75 R15 load range D tires, 6 bolt silver mod wheels, 5 leaf double eye springs, 4-5/8 weld on D-rings: $750
• SNAP-LOC tie down rings: $5 each
Note: Trailer comes already equipped w/6 E-track sockets (SNAP-LOC tie down rings sold separately).
• Complete SNAP-LOC tie down system.
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
