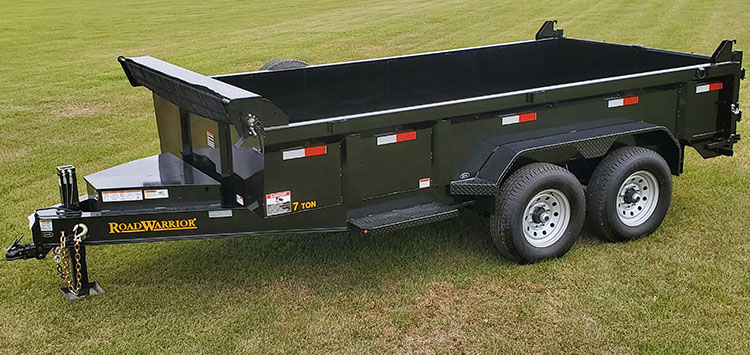

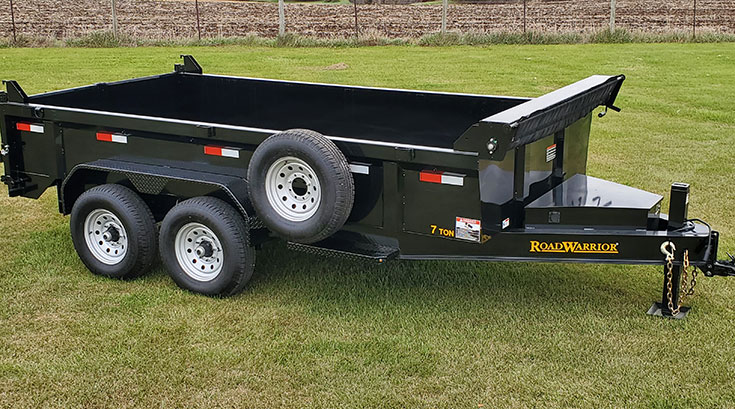

7 Ton Road Warrior Dump Trailer

Commercial and Industrial quality with all the features and options as standard equipment

Trailer may be shown with optional equipment.

Road Warrior from Johnson Trailer CO of Colfax Wisconsin

Specifications – 7 Ton Road Warrior Dump Trailer
Weight Rating: 14,000 lbs. GVWR (Curb weight: 4,500 lbs. / Payload: 9,500 lbs.)
Axles: 2 – 7,000# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 6-leaf slipper springs
Tires & Wheels: ST 235/80 R16 Load range E radial tires, 8 X 6.5 bolt pattern silver mod wheels
Fenders: 9″x72″ 14ga. treadplate fenders

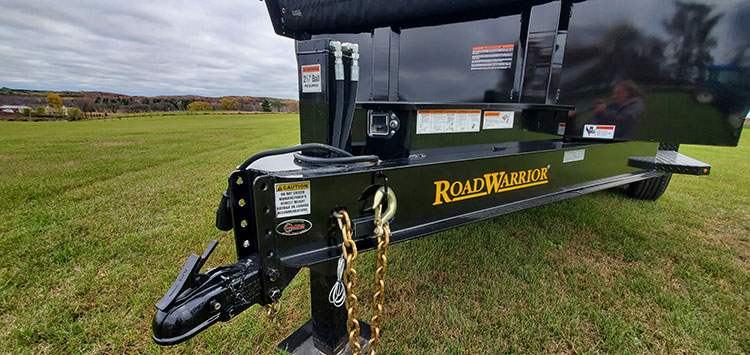

Hitch: 2 5/16″adjustable ball or pintle (14,000# rated), H.D. safety chains
Jack: 12,000 lbs. hydraulic tongue jack (operates w/valve on hydraulic lift for dump)
Structural: Hi-Tensile 8″ 13 lbs. per ft. I-beam main frame and tongue. 3″ channel crossmembers (12″ spacing)
Floor: H.D. 7ga. steel floor
Dump Box: 24″ high sides w/brackets for 2×8 wood plank for extending sidewall height

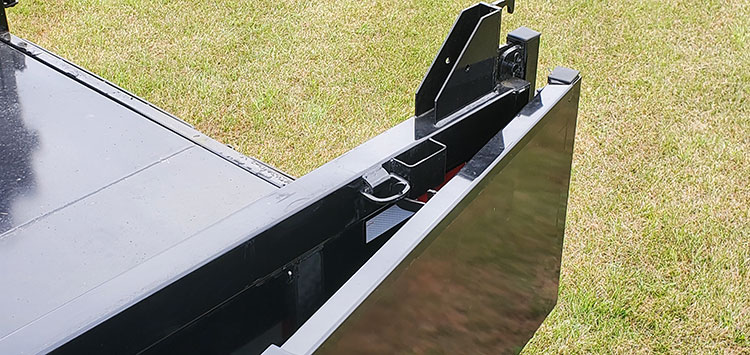

Top Rail: “MAXX RAIL” H.D. boxed structural top rail on box sides
Special Feature: Large side steps on each side

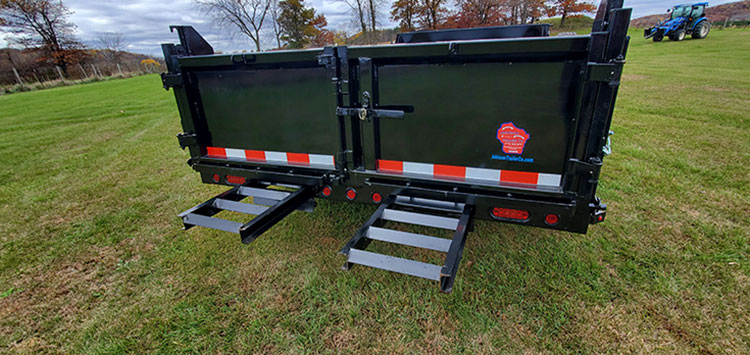

Rear Gates: Two way spreader or double swing for dumping load and using ramps

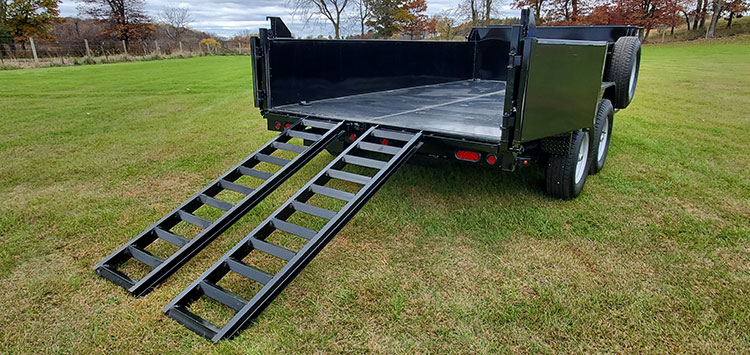

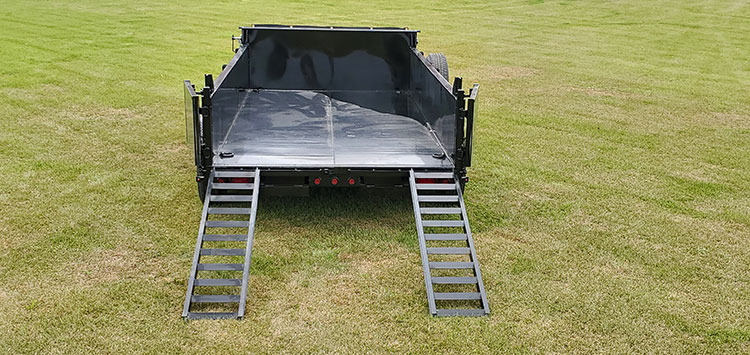

Ramps: 6′ long w/rear storage pockets. 4 5/8 d-rings in box for tie downs

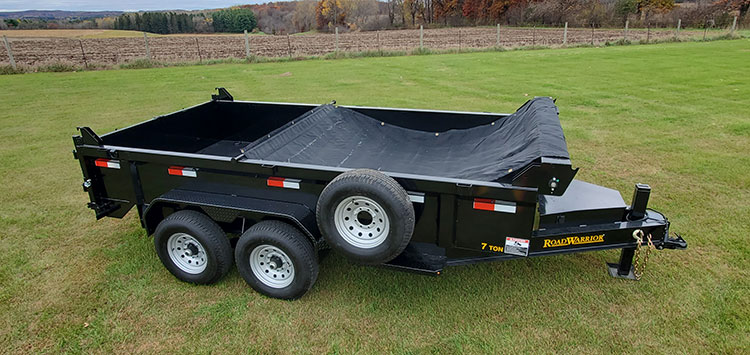

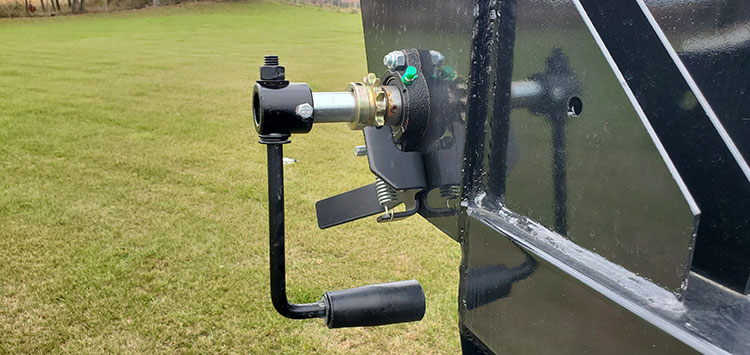

Tarp Kit: Roll-up tarp in protective housing with crank and ratchet

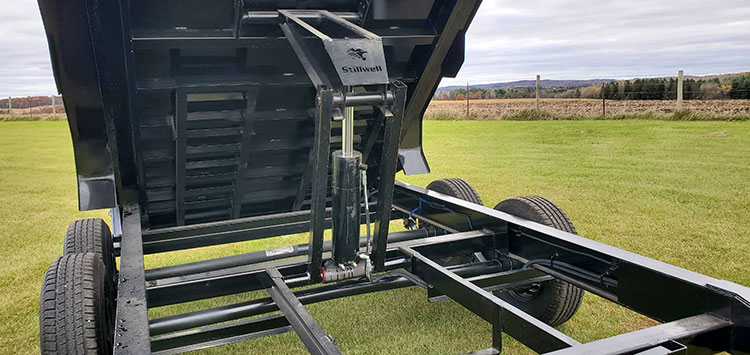

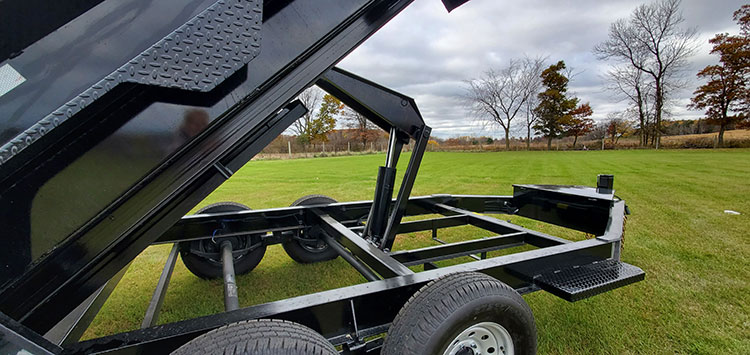

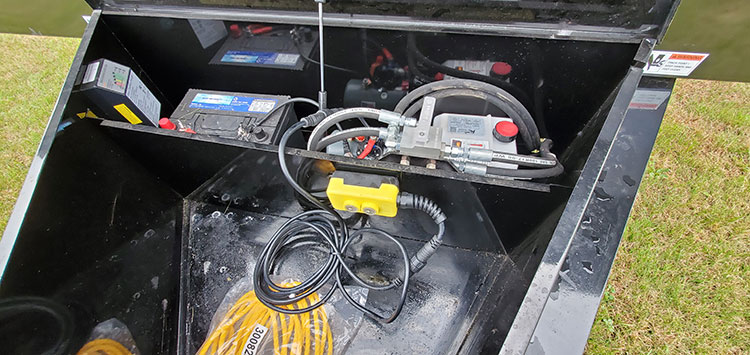

Hydraulic System: 12 volt deep cycle battery w/on board plug in charger. Scissor lift hoist w/power up/down. 45 degree dumping angle.

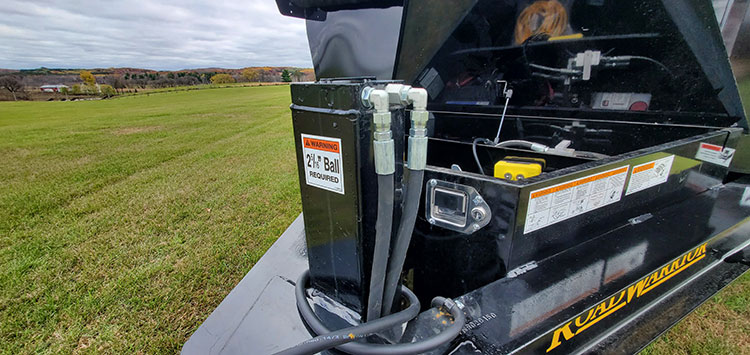

Tongue Box: Large tongue mounted box for hydraulics and separated large storage box
Electrical: All LED rubber mount lights w/sealed factory wiring harness. 7 way connector. Micro prismatic reflective tape
Paint: Phosphate etched pre-treatment with Valspar high performance primer and acrylic finish
Colors Available: Gloss black only
Bed Size & Prices

83″ x 14′: $12,480

83″ x 16′: $13,180


Some Options

8,000 lbs. axles w/16,000 lbs. GVWR w/235×16 LRG tires: $2,010

Gooseneck package: $1,590

Spare tire and wheel: Included w/trailer price

Tarp Kit: Included w/trailer price

Storage box: Included w/trailer price

Ramps w/tie down rings: Included w/trailer price

Hydraulic tongue jack: Included w/trailer price

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
