6 and 7 Ton Hydraulic Dump Trailer



 Save time and money by hauling your own rock, dirt, debris and much more. Some models have skidsteer hauling capability.

Powder Coated Finish 36 Inch Sides Skidsteer Hauling Split & Spreader Gate

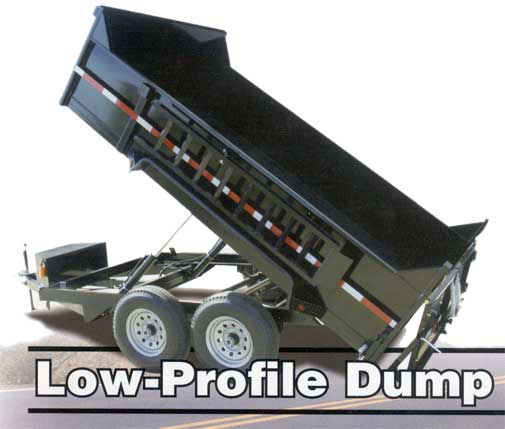

6 & 7 ton Dump Trailer
Twin Hydraulic Cylinders HD Floor HD Steel Floor Power Up & Power Down
Longhorn Trailer

Dump Trailer Dump Trailer Wiring Harness
Split/Spreader gate

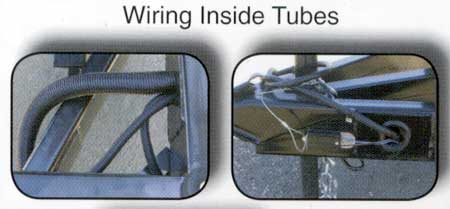

Split/Spreader gate Protected wiring
Dump Trailer Dump Trailer Dump Trailer
Board bracket allows for
extended sides to 36"


12V hydraulic pump in
lockable tongue box
Bolted tailgate hinge &
holdback pins
Dump Trailer Dump Trailer Spare Tire
Ramp kit w/D-rings in floor Full length center main rail Spare tiremount std.
(Spare tire optional)

Standard Features
Plug and Go Sealed Harness Stake Pockets All 4 Corners
Fusible Battery Charge Wire All Weather Remote Control
12V Hydraulic System All Wheel Electric Brakes
One Year Limited Warranty Split/Spreader Tail Gate


6 & 7 Ton Low Profile Dump Specifications
SPECIFICATIONS 8312-12LPXD 8312-14LPXD 8314-14LPXD 8316-14LPXD
Bed width 83" 83" 83" 83"
Bed length 12' 12' 14' 16'
Spring axle w/ez-lube 2-6000# 2-7000# 2-7000# 2-7000#
Tires LT7.5-16F ST235/75R16 ST235/75R16 ST235/75R16
Rims 16" SIL. MOD. 16" SIL. MOD. 16" SIL. MOD. 16" SIL. MOD.
Tire rating LRF 12-PLY BIAS LRE 10-PLY RADIAL LRE 10-PLY RADIAL LRE 10-PLY RADIAL
Coupler size 2-5/16" 2-5/16" 2-5/16" 2-5/16"
Ball height 18" 18" 18" 18"
Floor height 29" 29" 29" 29"
Approx. cubic yard 5.9 6.9 6.9 7.9
G.V.W.R. 12,000# 14,000# 14,000# 14,000#
Curb weight 3,380# 3,480# 3,730# 4,300#
Payload # 8,000# 10,000# 10,000# 10,000#
Frame tube size 2 X 5 7GA. 2 X 5 7GA. 2 X 6 X 1/4" 2 X 6 X 1/4"
Wall & floor gauge 11GA. Steel 11GA. Steel 11GA. Steel 11GA. Steel
Harness Plug & Go Plug & Go Plug & Go Plug & Go
Lights Sealed Sealed Sealed Sealed
Plug 7-Way 7-Way 7-Way 7-Way
Hydraulic power Up/Down Up/Down Up/Down Up/Down
Hydraulic cylinders Twin Twin Twin Twin

6 Ton Bed Size & Prices
Prices Current as of April, 2014

 8312-12LPXD w/ramp kit: $5,482


7 Ton Bed Size & Prices
Prices Current as of April, 2014

 8312-14LPXD w/ramp kit: $5,699

 8314-14LPXD w/ramp kit: $6,049

 8316-14LPXD w/ramp kit: $6,799

Some Options

 Spare silver mod wheel w/o tire 16": $57

 Spare tire & wheel: $175

 Roll up tarp kit (83" x 12' thru 83" x 16'): $295

 Gooseneck hitch (83" wide only): $1400

Gooseneck Dump Trailer
Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)

We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
Down Home Prices & Big City Inventory
