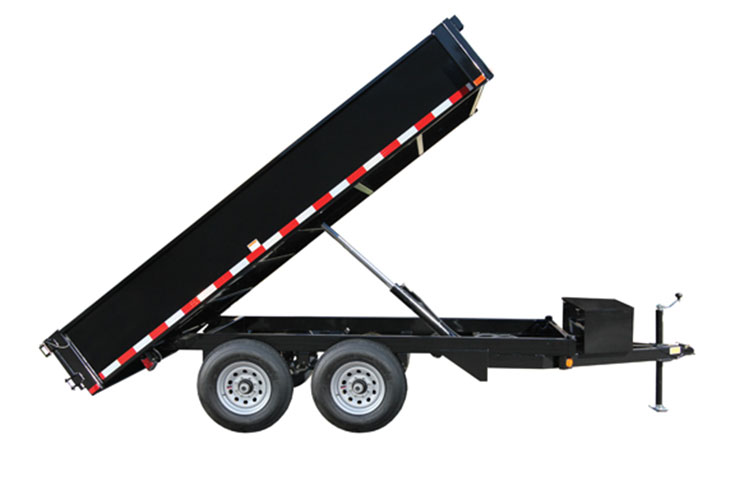

3.5 Ton Hydraulic Dump Trailer
• Save time and money by hauling your own rock, dirt, debris and much more. •
Model 610-7
Model 612-7
Hydraulic system in lockable box
12 volt hydraulic pump
Heavy duty hydraulic system
Protected wiring
Bolted tailgate hinge &
holdback pins
Protected wiring
| Standard Features | Standard Features |
| • Powder Coat Finish | • All Weather Remote control |
| • All Wheel Electric Brakes | • Double Swing Rear Gates |
| • Plug & Go Sealed Harness | • Fusible Battery Charge Wire |
| • One Year Limited Warranty | • 12V Hydraulic System |
3.5 Ton Dump Trailer Specifications
| SPECIFICATIONS | 610-7 | 612-7 |
| Bed width | 72″ | 72″ |
| Bed length | 10′ | 12′ |
| Spring axle w/ez-lube | 2-3500# | 2-3500# |
| Tires | ST225/75 R15 | ST225/75 R15 |
| Rims | 15″ SIL. MOD. | 15″ SIL. MOD. |
| Tire rating | LRC | LRC |
| Coupler size | 2-5/16″ | 2-5/16″ |
| Ball height | 18″ | 18″ |
| Floor height | 30″ | 30″ |
| Approx. cubic yard | 3 | 3.6 |
| G.V.W.R. | 7,000# | 7,000# |
| Curb weight | 1,820# | 1,950# |
| Payload # | 5,000# | 5,000# |
| Harness | Plug & Go | Plug & Go |
| Lights | Sealed | Sealed |
| Plug | 7-Way | 7-Way |
| Hydraulic power | Up/Down | Up/Down |
| Hydraulic cylinders | Single | Single |
Bed Size & Prices
• 610-7 w/High Bulkhead: $5030
• 612-7 w/High Bulkhead: $5335
Some Options
• Spare silver mod wheel w/o tire 15″: $60
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
