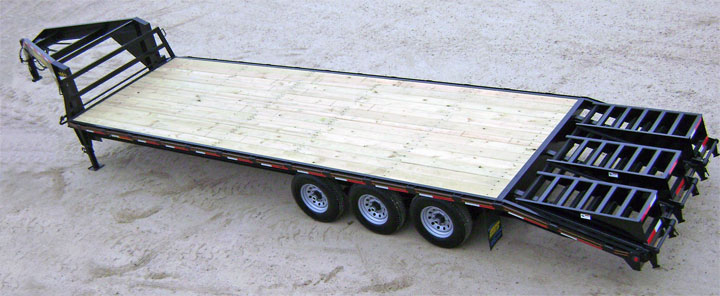

10.5 Ton Gooseneck Trailer

• Load Warrior® gooseneck trailers are not just any trailer.•
• Our quality material and components are combined with pride in workmanship.•
• Load Warrior® is the right choice.•

CHECK OUT ALL THE FEATURES AND ADVANCED DESIGN OF OUR GOOSENECK TRAILERS



Specifications – 10.5 Ton Gooseneck Equipment Trailer

Weight Rating: 21,000 LBS. GVWR w/evenly distributed load

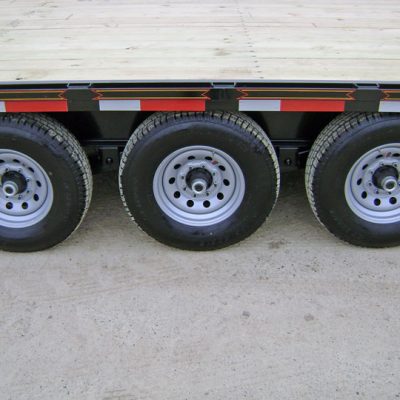

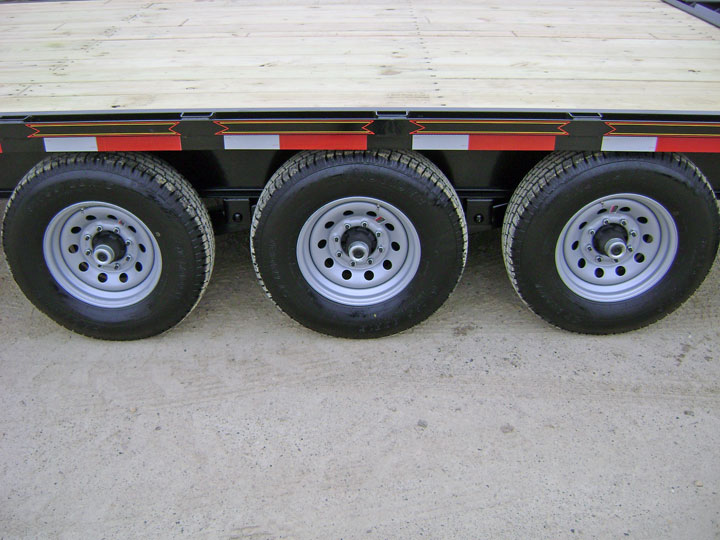

Axles: 3 – 7,000# axles, electric brakes w/ ez lube, safety breakaway w/charger

Suspension: 6-leaf slipper springs

Tires & Wheels: ST 235/80 R16 load range E radial tires, 8 X 6.5 bolt pattern silver mod wheels, mud flaps

Hitch: 2 5/16 adjustable gooseneck or pintle, H.D. safety chains

Jack: 2 – 12,000# dropleg

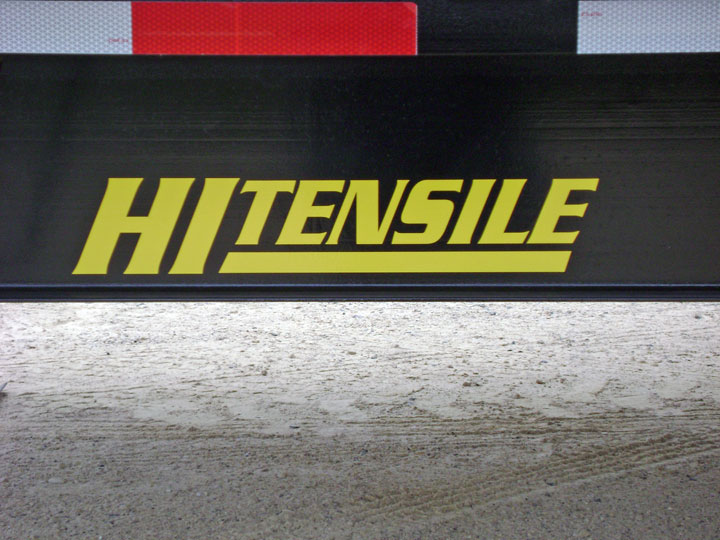

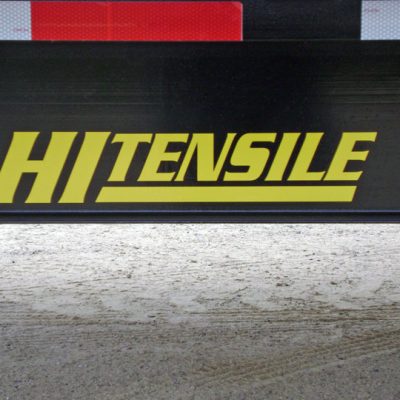

Structural: Hi-tensile 12″ X 14# I-beam main frame and neck, 12″ X 19# on 34′ and longer, 3″ channel cross members (16″ centers), 5″ channel lace rail.

Feature: Widened axles & frame extends tires to outside of trailer bed for improved handling & sway control

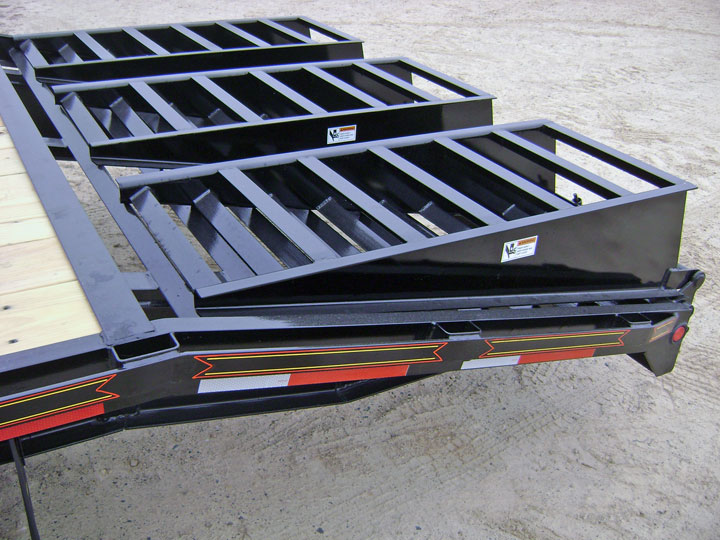

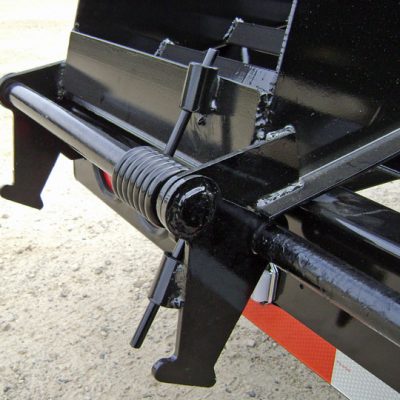

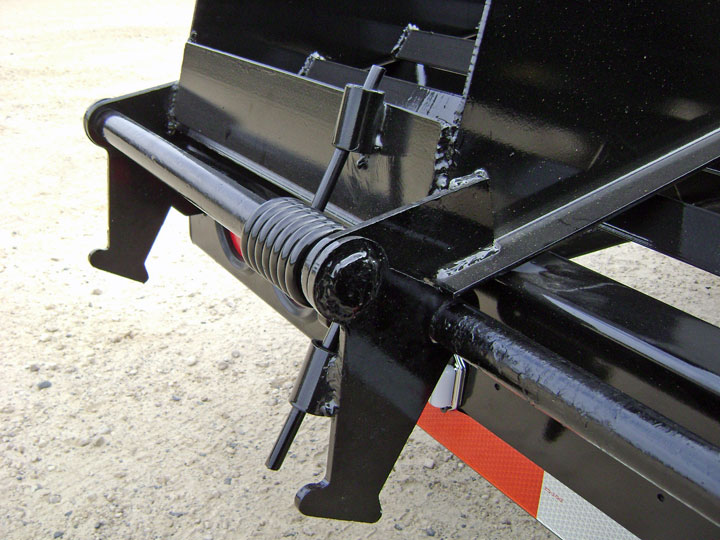

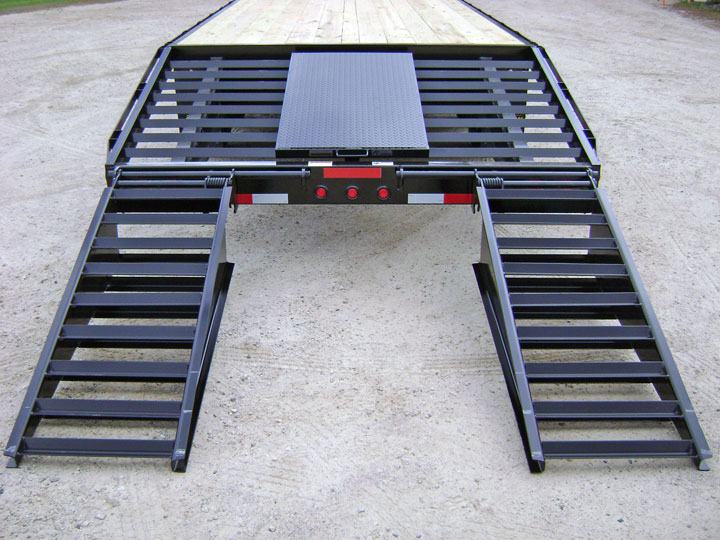

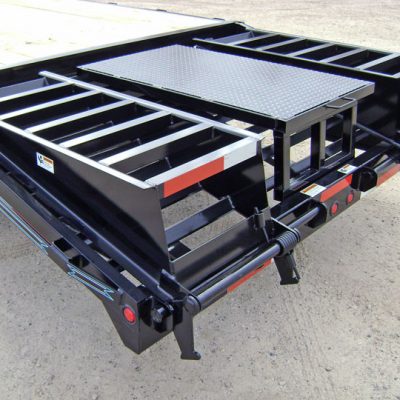

Dove Tail & Ramps: 5′ self cleaning dove tail, w/2 spring assist, double hinged, floor level flip over ramps

Tie Downs: Stake pockets and rub rail

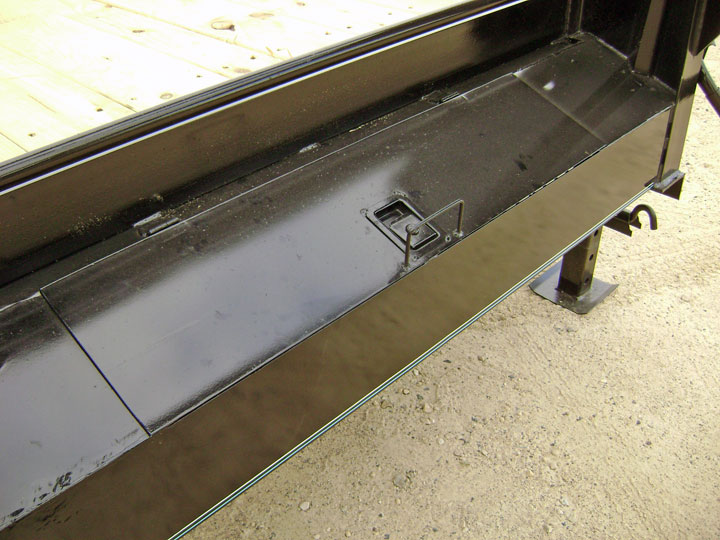

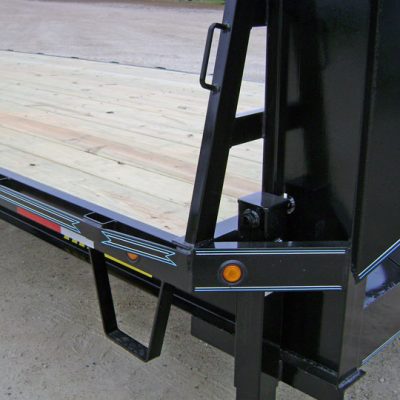

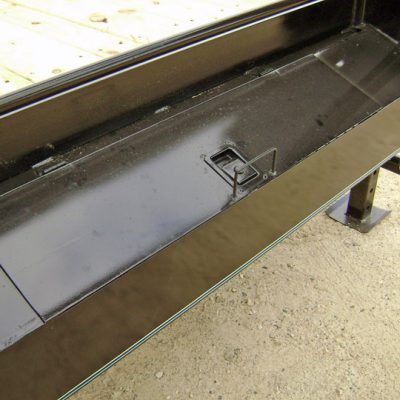

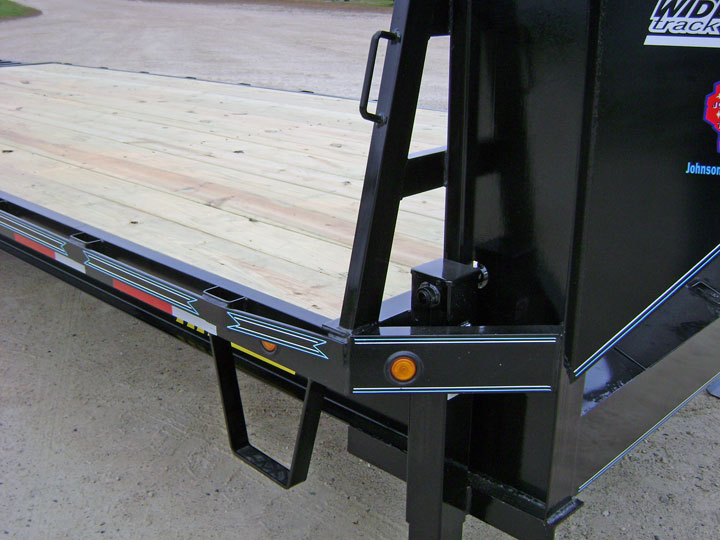

Special Features: Lockable front toolbox, see-thru tubing headache rack, front steps w/grab handles on both sides, spare tire rack in neck

Electrical: LED lights, license light w/bracket, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

Floor: 2 X 8 treated yellow pine decking

Paint: Phosphate etched pretreatment with epoxy primer and acrylic finish

Colors Available: Gloss Black, Victory Red, Charcoal, Bright Blue, Safety Orange, Safety Yellow, Federal Yellow

Note: Trailer length includes dove tail. (Example: 25′ trailer has 20′ flat and 5′ dove tail.)

Bed Size & Prices

• 102″ X 25′ w/5′ Dove & Ramps: $11,370 Now $9,975

• 102″ X 26′ w/5′ Dove & Ramps: $11,505 Now $10,280

• 102″ X 28′ w/5′ Dove & Ramps: $11,765 Now $10,425

• 102″ X 30′ w/5′ Dove & Ramps: $12,055 Now $10,810

• 102″ X 32′ w/5′ Dove & Ramps: $12,360 Now $10,845

• 102″ X 34’* w/5′ Dove & Ramps: $13,295 Now $11,195

• 102″ X 36’* w/5′ Dove & Ramps: $13,550 Now $11,690

• 102″ X 38’* w/5′ Dove & Ramps: $13,965 Now $12,165

• 102″ X 40’* w/5′ Dove & Ramps: $14,320 Now $12,335

* Indicates 12″ X 19# I-beam main frame

• Click to view dual tandem and heavy goosenecks

Some Options

• Spare wheel w/o tire: $75

• Spare wheel w/tire: $210

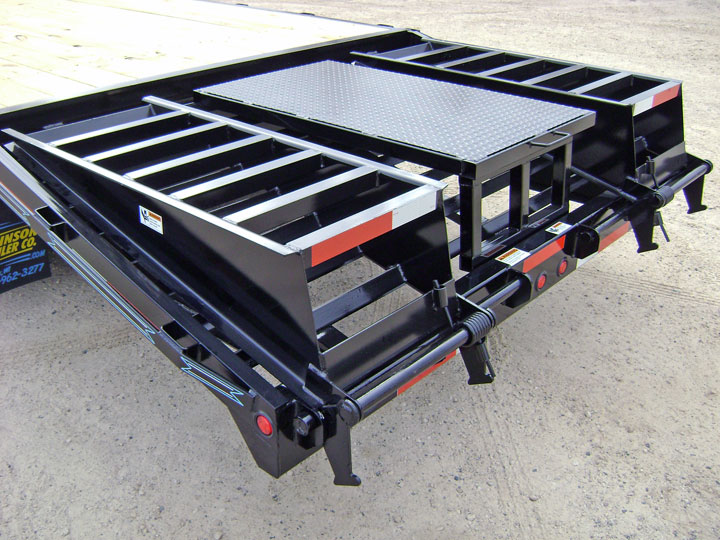

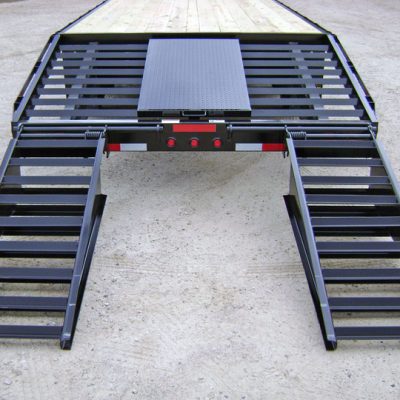

• Pop-up dove tail section: $410 Now $380

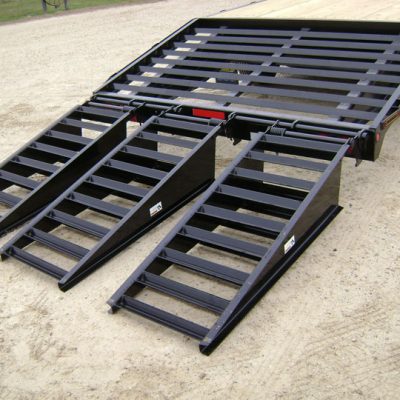

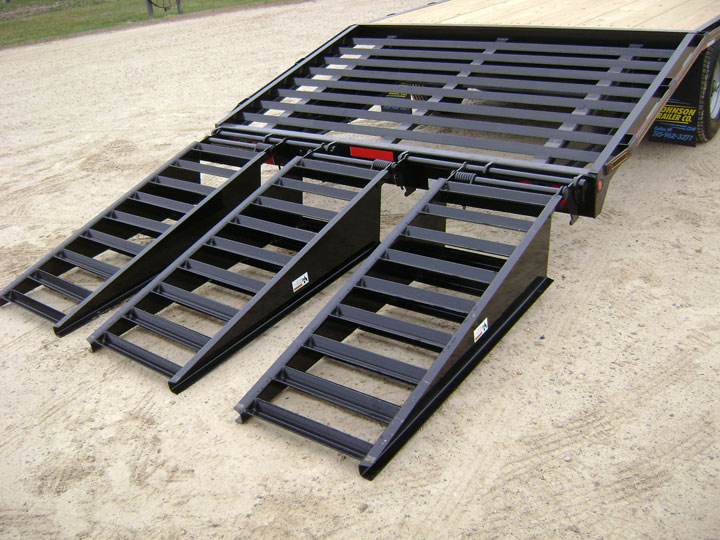

•Third flip over floor level ramp: $410 Now $380

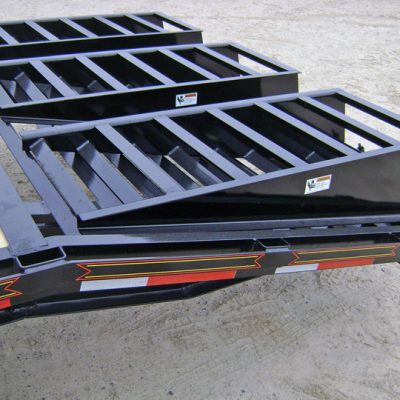

• MAXI ramps (spring assist both ways): $1,150 Now $880

• 6′ X 8′ top deck on neck w/stack pockets & rubrail: $1,585 Now $880

• King pin adapter for gooseneck (in lieu of gooseneck ball coupler): $240

• Stake pocket D-rings: $26 each for 6 or more. $32 each for less than 6. Click to view stake pocket D-rings
