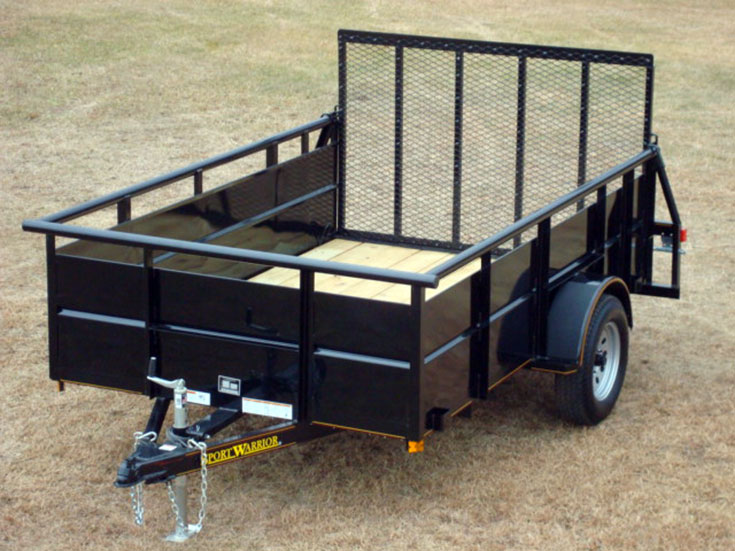

Single Axle Hi-Side Utility Trailer

• Fixed solid steel sides with pipe top rail you can tie your load to. •



Trailer may be shown with optional equipment.

Specifications - Single Axle Hi-Side Utility Trailer

Weight Rating: 2,990 LBS. GVWR w/evenly distributed load

Axle: 1- 3,500#

Dexter Axle w/ez-lube

Suspension: 4 leaf double eye springs

Tires & Wheels: ST205/75 D15 load range C tires, 5x5 bolt pattern silver mod wheels

Fenders: 9"x32" 16 ga. smooth w/stoneguard

Hitch: 2" Atwood A-frame w/safety chains

Jack: 2,000# setback, topwind

Structural: 4" channel tongue, 2 X 3 X 3/16 crossmembers (24" centers), 2 3/8" pipe top rail & 2 X 2 X 3/16" uprights

Tie Downs: 4 tie loops in box

Sides: Pre-formed solid steel panels w/V crimps, 2 3/8" pipe top rail, 30" height overall

Electrical: All required lighting, license bracket w/light, wiring in conduit w/flat 4 way connector

Floor: 2X8 treated yellow pine decking

Paint: Phenolic epoxy ester primer w/acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors - please call)

Bed Size & Prices
Prices Current as of February, 2012

• 5' X 8' w/48" ramp gate: $1,510

• 5' X 10' w/48" ramp gate: $1,560

• 77" X 10' w/48" ramp gate: $1,665

• 77" X 12' w/48" ramp gate: $1,730

• 83" X 12' w/48" ramp gate: $1,760

Some Options

• Spare ST 205/75 D15 LR "C" tire w/silver mod wheel: $109

• Spare silver mod wheel w/o tire: $45

• Electric brakes: $150

• Safety breakaway: $45

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)

We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
