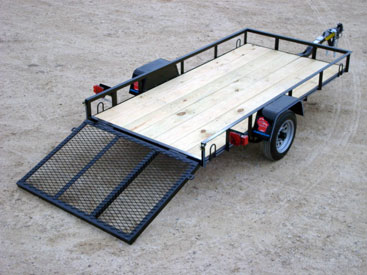

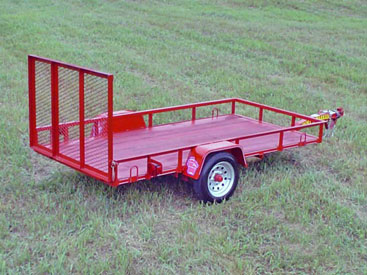

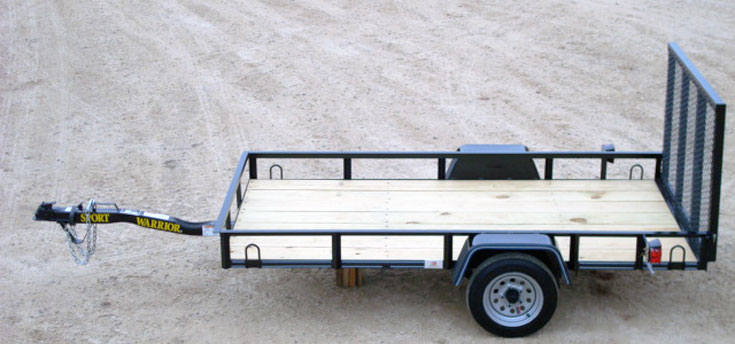

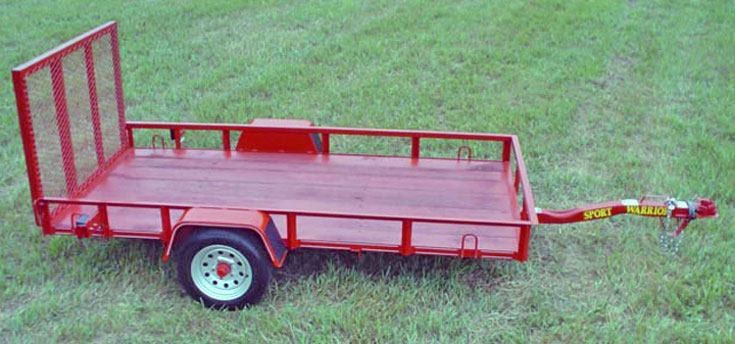

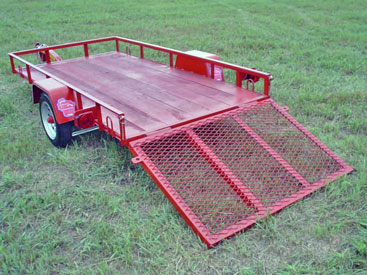

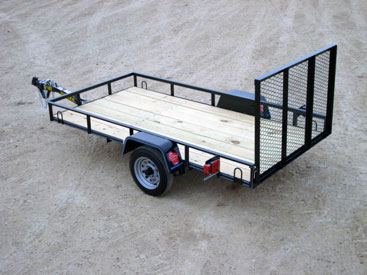

Mini-Single Axle Utility w/Side Rails

• A light duty and handy little trailer •



Trailer may be shown with optional equipment.

Specifications - Mini-Single Axle Utility w/Side Rails

Weight Rating: 1,500 LBS. GVWR w/evenly distributed load

Axle: 1 - 3,500#

Suspension: 3 leaf double eye springs

Tires & Wheels: 4.80 - 12, load range B tires, 5x4.5 bolt pattern silver mod wheels

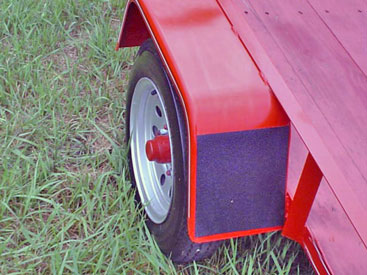

Fenders: 8"x26" 16 ga. smooth w/stoneguard

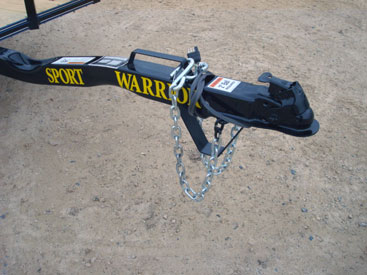

Hitch: 2" Atwood w/safety chains

Structural: 2X2X3/16 frame & crossmembers, 1.5X1.5.X1/8 top rail & upright, 3X3 formed square tubing tongue (w/stand & handle)

Tie Downs: 4 tie loops, tail board brackets on tilt beds

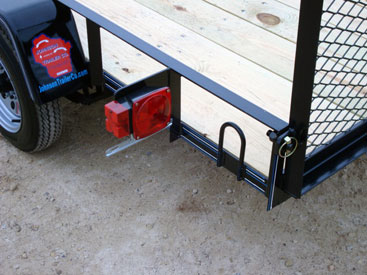

Electrical: All required lighting, license bracket w/light, wiring in conduit w/flat 4 way connector

Floor: 2X8 treated yellow pine decking

Paint: Phenolic epoxy ester primer w/acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors - please call)

Bed Size & Prices
Prices Current as of May, 2013

• 4.5' X 9' w/Tilt Bed: $709

• 4.5' X 6' w/Ramp Gate: $760

• 4.5' X 8' w/Ramp Gate: $760

• 4.5' X 9' w/Ramp Gate: $770

Some Options
Spare 4.80 - 12 LR "B" tire w/5 X 4.5" silver mod wheel: $59

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)

We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
