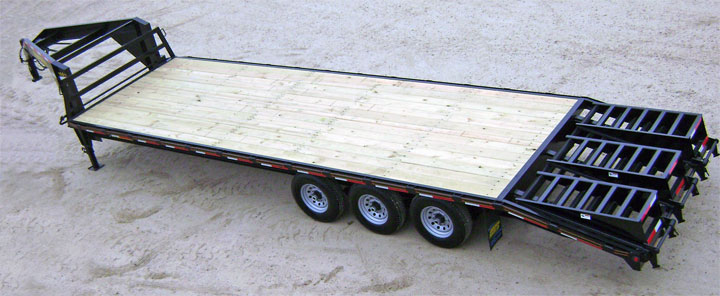

| Specifications - 10.5 Ton Gooseneck Equipment Trailer |
| Weight Rating: 21,000 LBS. GVWR w/evenly distributed load |
Axles: 3 - 7,000#  Dexter axles, electric brakes w/ ez lube, safety breakaway w/charger |
| Suspension: 6-leaf slipper springs |
| Tires & Wheels: ST 235/80 R16 load range E radial tires, 8 X 6.5 bolt pattern silver mod wheels, mud flaps |
| Hitch: 2 5/16 adjustable gooseneck or pintle, H.D. safety chains |
| Jack: 2 - 10,000# dropleg |
| Structural: Hi-tensile 12" X 14# I-beam main frame, 12" X 19# I-beam main frame on 34' and longer, neck uprights are same I-beam as main frame, 10" channel neck, 3" channel crossmembers (18" centers), 5" channel lace rail |
 Feature: Widened axles and frame extends tires to outside of trailer bed for improved handling and sway control |
| Dove Tail & Ramps: 5' self cleaning dove tail, w/2 spring assist, double hinged, floor level flip over ramps
|
| Tie Downs: Stake pockets and rub rail
|
| Special Features: Lockable front toolbox, see-thru tubing headache rack, front steps w/grab handles on both sides, spare tire rack in neck |
| Electrical: All required lighting, sealed beam lights, license light w/bracket, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking |
Paint: Phosphate etched pretreatment with  high performance primer and acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Arizona Biege, Bright Blue Metallic, Amazon Green, Bright Safety Yellow, Cat Yellow |
INTRODUCTORY PRICING FOR A LIMITED TIME!
Note: Trailer length includes dove tail. (Example: 25' trailer has 20' flat and 5' dove tail.)
Bed Size & Prices
Prices Current as of February, 2012
• 102" X 25' w/5' Dove & Ramps: $6,520
• 102" X 26' w/5' Dove & Ramps: $6,595
• 102" X 28' w/5' Dove & Ramps: $6,745
• 102" X 30' w/5' Dove & Ramps: $6,895
• 102" X 32' w/5' Dove & Ramps: $7,045
• 102" X 34'* w/5' Dove & Ramps: $7,595
• 102" X 36'* w/5' Dove & Ramps: $7,845
• 102" X 38'* w/5' Dove & Ramps: $7,995
• 102" X 40'* w/5' Dove & Ramps: $8,195
* Indicates 12" X 19# I-beam main frame
• Click to view dual tandem and heavy goosenecks
Some Options
• Spare wheel w/o tire: $57
• Spare wheel w/tire: $175
• Pop-up dove tail section: $250
•Third flip over floor level ramp: $250
• 8' X 8' top deck on neck w/stack pockets & rubrail: $995
• King pin adapter for gooseneck (in lieu of gooseneck ball coupler): $175
• LED lights: $115
• 36" X 15" X 15" underbody toolbox: $192
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
;)
;)
;)
;)
;)
