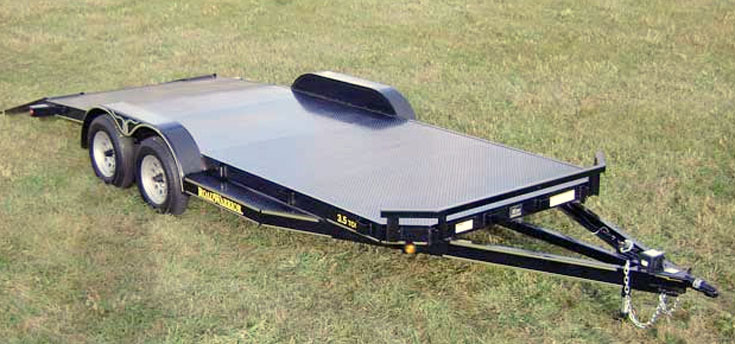

| Specifications - Car Hauler, Steel Floor |
| Weight Rating: 7,000 LBS. GVWR w/evenly distributed load |
Axles:  Dexter axles, 1-3,500# idler, 1-3,500# electric brake, w/ez-lube, safety breakaway w/charger |
| Suspension: 4 leaf double eye springs |
| Tires & Wheels: ST205/75 D15 load range C tires, 5x5 bolt pattern silver mod wheels |
| Fenders: 9"x72" 16 ga. smooth teardrop w/stoneguard |
| Hitch: 2" 7,000# Bulldog w/safety chains |
| Jack: 2,000# setback, swivel |
| Structural: 5" channel frame & tongue, running board steps, 3" channel crossmembers (24" centers)
|
| Tie Downs: 4 - 5,000# recessed D-Rings in floor, 14 stake pockets, 2 x 2 tubing front bump bar |
| Ramps: 2X2 tubing (5'long X 18" wide), slides in from rear |
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector |
| Floor: 1/8" treadplate steel w/45º cut corners in front |
| Dove: 48" long dove tail |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
Note: Trailer length includes dove tail. (Example: 18' trailer with dove tail has an 18' bed including the dove tail.)
Bed Size & Prices
Prices Current as of February, 2012
• 83" X 16': $2,860
• 83" X 18': $2,960
• 83" X 20': $3,080
Some Options
• Spare 205/75 D15 LR "C" tire w/silver mod wheel: $109
• Spare silver mod wheel w/o tire: $45
• Second electric brake axle: $125
• 7,000# drop leg jack (in lieu of standard): $60
• 2 5/16 Bulldog ball coupler (in lieu of standard): $50
• 14 ga. treadplate heavy duty fenders: $100
• 32" X 32" lockable box built into floor of trailer: $275
• Aluminum tongue mounted toolbox: $199
• Poly tongue mounted toolbox: $99
• Additional recessed D-rings in floor (5,000# rating): $10 Each
• 102" wide package w/drive over fenders: $399 Click to view 102 package
• LED lights: $75
• 10,000 lbs. GVWR Pkg: $375
(Includes 2 - 5,200# electric brake axles, 5 leaf double eye springs, crossmembers on 16" centers, 2 5/16 Bulldog coupler)
Aluminum Tongue Mounted Toolbox |
Poly Tongue Mounted Toolbox |
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
;)
;)
