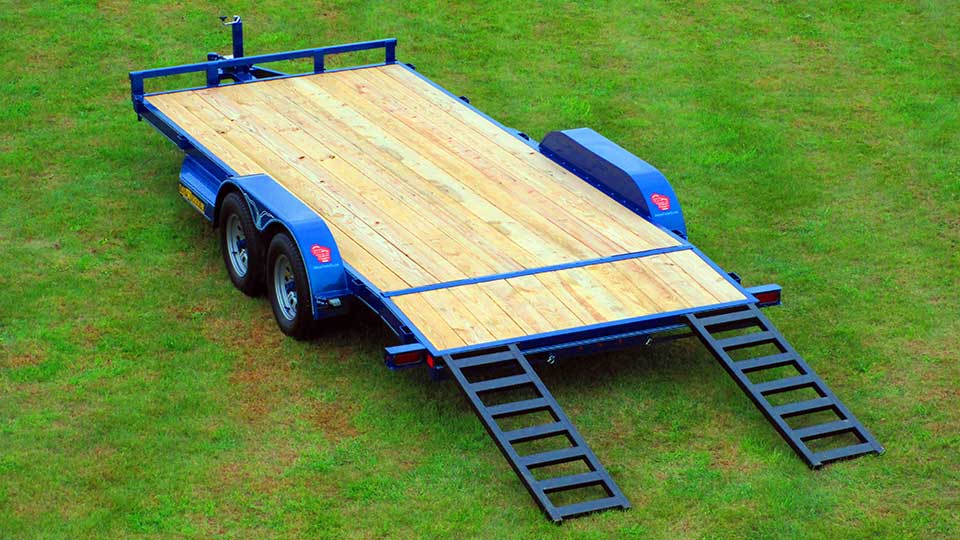

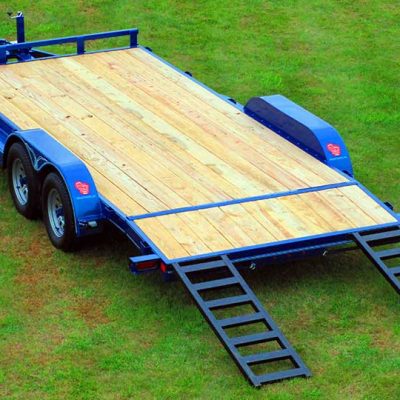

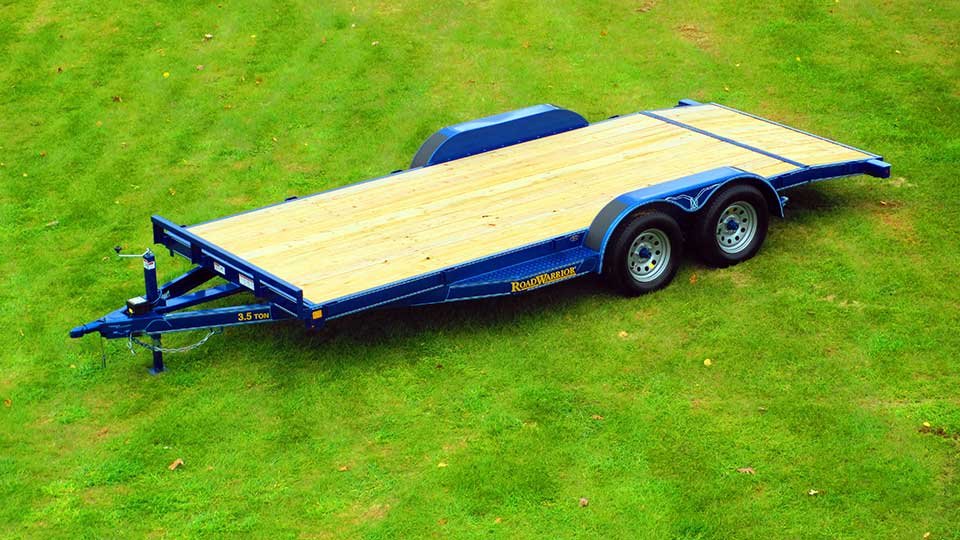

Wood Floor Car Hauler Trailer

Specifications – Car Hauler Trailer, Wood Floor

Weight Rating: 7,000 LBS. GVWR w/evenly distributed load

Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger

Suspension: 4 leaf double eye springs

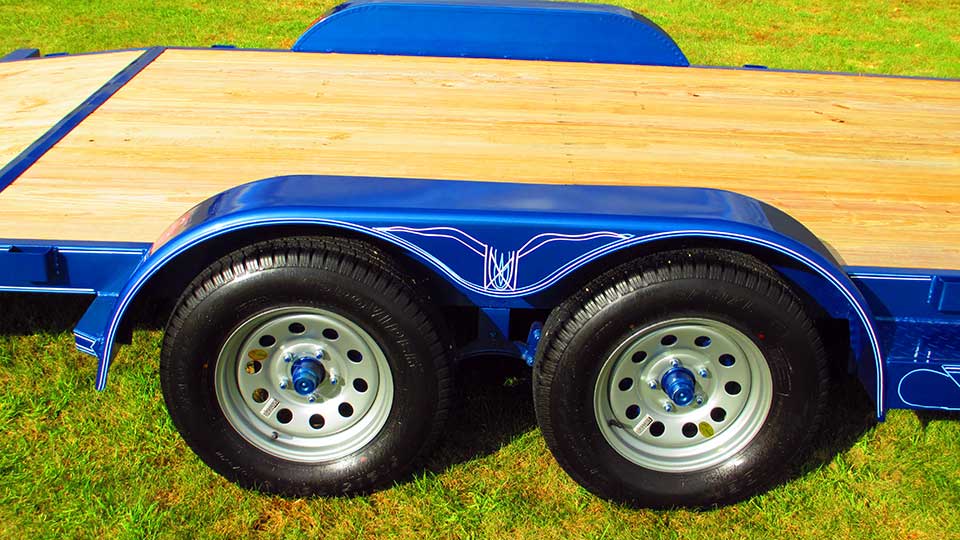

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels

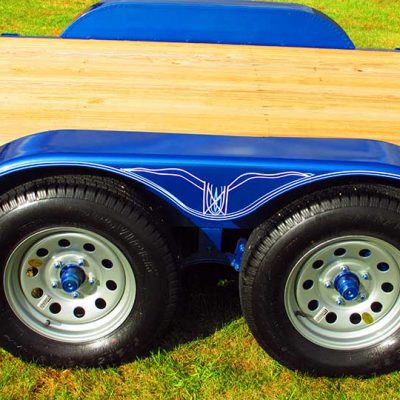

Fenders: 9″x72″ 16 ga. smooth teardrop w/stoneguard

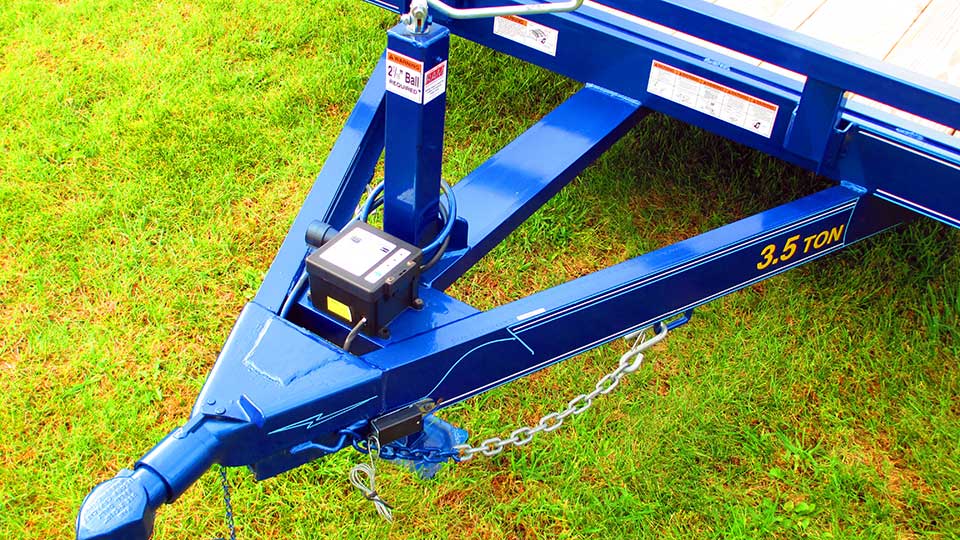

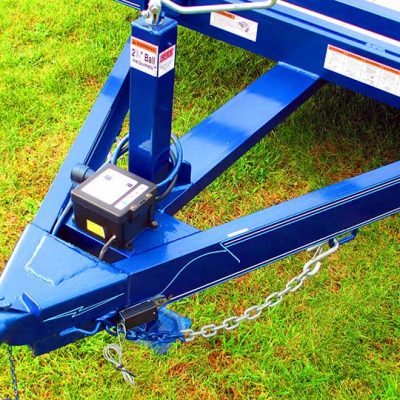

Hitch: 2″ 7,000# Bulldog w/safety chains

Jack: 2,000# topwind Rapid Jack

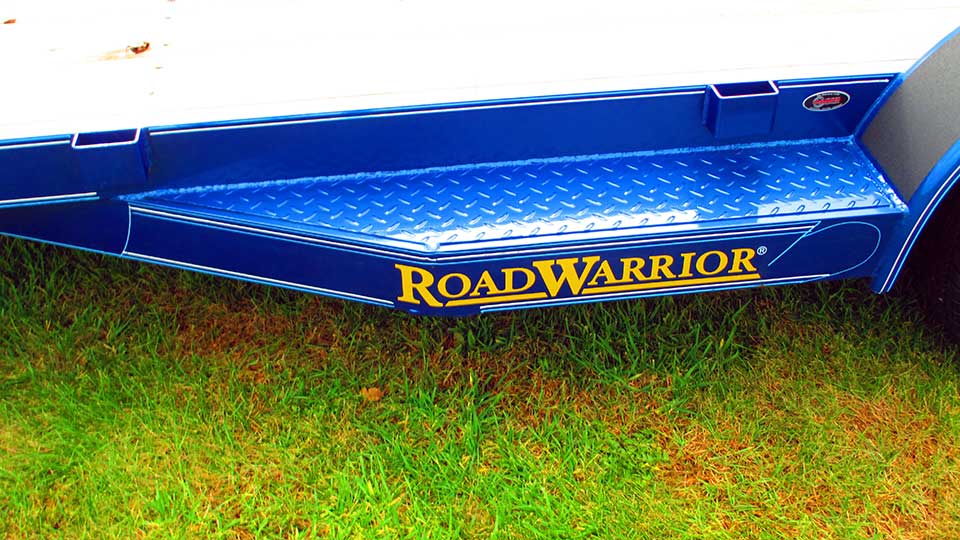

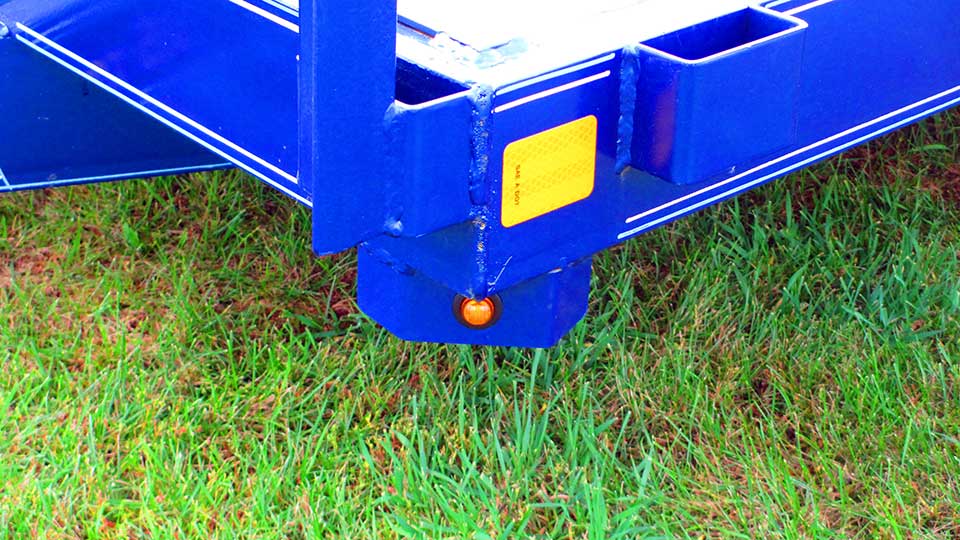

Structural: 5″ channel frame and tongue, running board steps, 3″ channel crossmembers (24″ centers)

Tie Downs: 14 stake pockets, 2 X 2 tubing bump bar

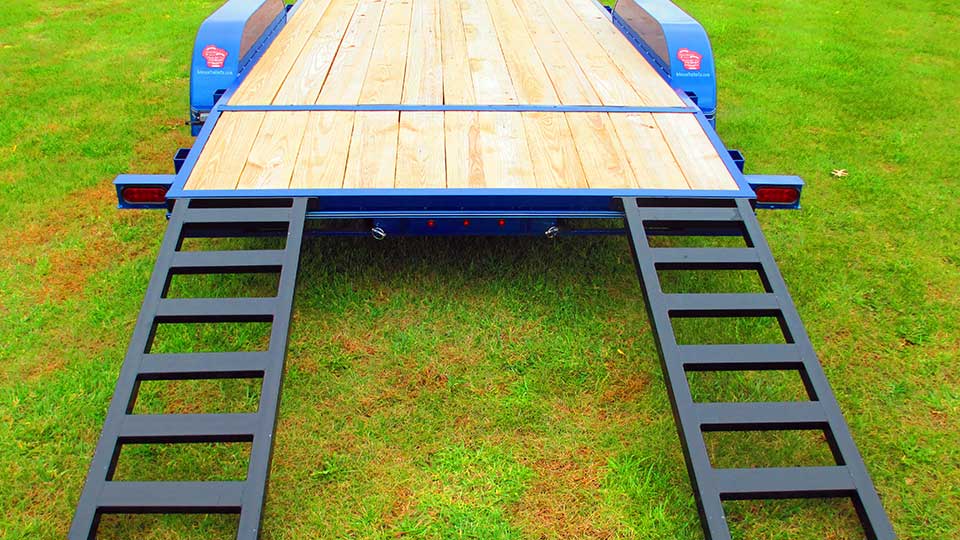

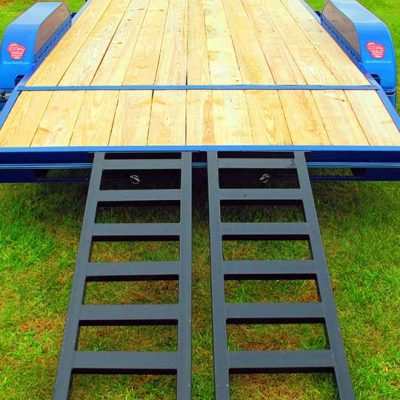

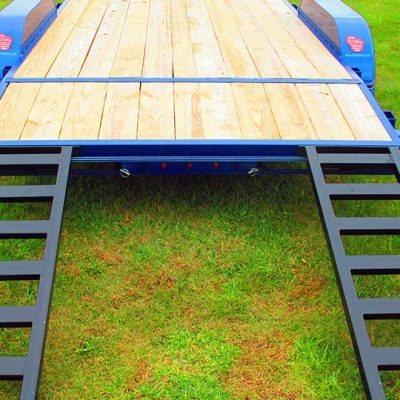

Ramps: 2X2 tubing (5’long X 18″ wide), slides in from rear

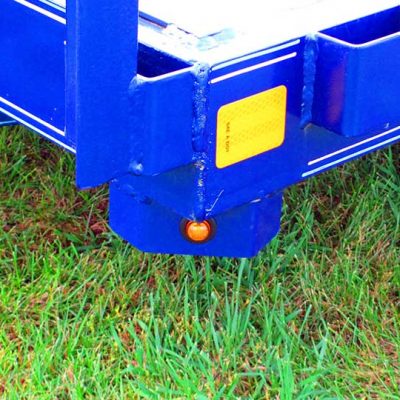

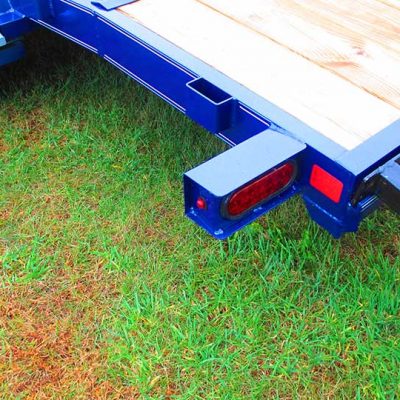

Electrical: All required lighting, license bracket w/light, sealed factory wiring harness w/7 way connector

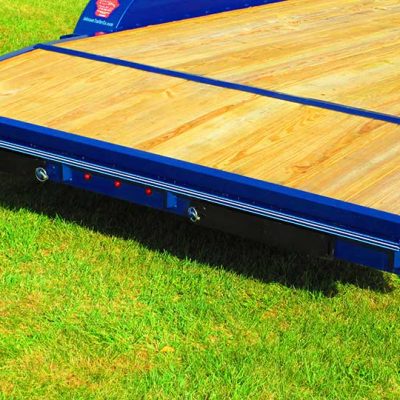

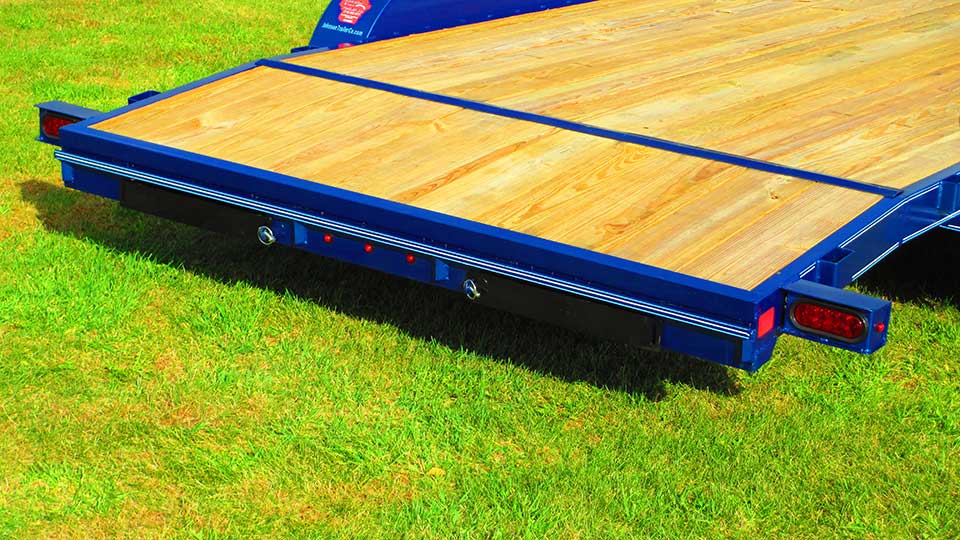

Floor: 2X8 treated yellow pine decking

Paint: Phenolic epxoy ester primer w/acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)

Note: Trailer length includes dove tail. (Example: 18′ trailer with dove tail has an 18′ bed including the dove tail.)

• 83″ X 16′: $2,576
• 83″ X 16′ w/dovetail: $2,634
• 83″ X 18′: $2,697
• 83″ X 18′ w/dovetail: $2,714
• 83″ X 20′: $2,777
• 83″ X 20′ w/dovetail: $2,787

Some Options
• Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $135

• Spare silver mod wheel w/o tire: $45

• Second electric brake: N/C (Incl. as standard equipment)

• 1/8″ steel treadplate floor (in lieu of treated wood): $30/Lin. Foot

• 48″ standard ramp gate (in lieu of standard ramps): $75

• 5′ standard ramp gate(in lieu of standard ramps): $100

• 48″ split tractor ramp gate w/knees & spring (in lieu of standard ramps): $225

• 5′ split tractor ramp gate w/knees & spring (in lieu of standard ramps): $275

• 5′ stand up knee ramps (in lieu of standard ramps): $100

• Side rails added to trailer (2 X 2 X1/8 angle top rail): $125

• Side rails added to trailer (2 3/8 pipe top rail): $150

• 102″ wide car hauler trailer package w/drive over fenders: $399  Click to view 102 package

• 102″ wide car hauler trailer deck over tires:  Click to view 102 deck over package

• 7,000# drop leg jack (in lieu of standard): $60

• 2 5/16 Bulldog ball coupler (in lieu of standard): $50

• Adjustable pintle hitch (in lieu of standard): $50

• 14 ga. treadplate heavy duty fenders: $100

• Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box

• LED lights: $75

• Ramp Extenders (for low clearance vehicles): $149 Click to view ramp extenders

• Bolt-on spare tire mount: $50 Click to view spare mount

• Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings
