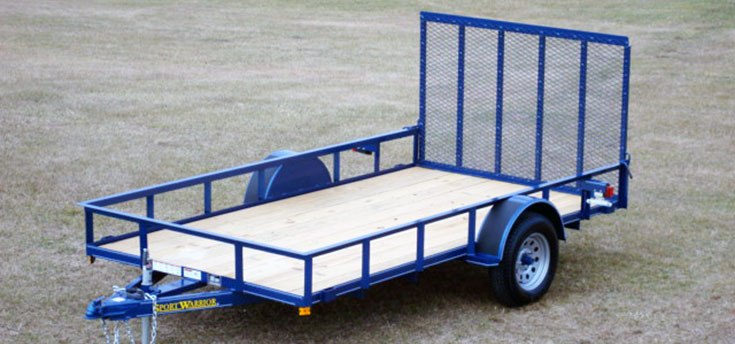

| Specifications- Single Axle Utility w/Side Rails |
| Weight Rating: 2,990 LBS. GVWR w/evenly distributed load |
Axle: 1 - 3,500#  Dexter Axle w/EZ Lube |
| Suspension: 4 leaf double eye springs |
| Tires & Wheels: ST205/75 D15 load range C tires, 5x5 bolt pattern silver mod wheels |
| Fenders: 9"x32" 16 ga. smooth w/stoneguard |
| Hitch: 2" Atwood A-frame w/safety chains |
| Jack: 2,000# setback, topwind |
| Structural: 2X3X3/16 frame & crossmembers (24" centers), 2X2X1/8 top rail & uprights, 4" channel tongue
|
| Tie Downs: 4 stake pocket tie downs, tail board brackets on tilts |
| Electrical: All required lighting, license bracket w/light, wiring in conduit w/flat 4 way connector |
| Floor: 2X8 treated yellow pine decking |
| Paint: Phenolic epoxy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors - please call) |
Bed Size & Prices
Prices Current as of February, 2012
• 5' X 8' w/tilt bed: $1,099
• 5' X 10' w/tilt bed: $1,119
• 5' X 8' w/48" ramp gate: $1,159
• 5' X 10' w/48" ramp gate: $1,179
• 5' X 14' w/48" ramp gate: $1,254
• 5' X 12' w/48" ramp gate: $1,260
• 77" X 10' w/48" ramp gate: $1,285
• 77" X 12' w/48" ramp gate: $1,320
• 77" X 14' w/48" ramp gate: $1,343
• 83" X 12' w/48" ramp gate: $1,395
• 83" X 14' w/48" ramp gate: $1,420
• 83" X 12' w/48" ramp gate: Special ATV hauling option #1 - Special ATV hauling option #2
• 83" X 14' w/48" ramp gate: Special ATV hauling option #1 - Special ATV hauling option #2
Some Options
• Spare ST 205/75 D15 LR "C" tire w/silver mod wheel: $109
• Spare silver mod wheel w/o tire: $45
• Electric brakes: $150
• Safety breakaway: $45
• Side ramp package
• ATV package
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
