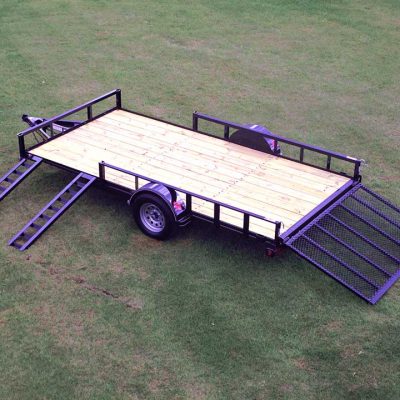

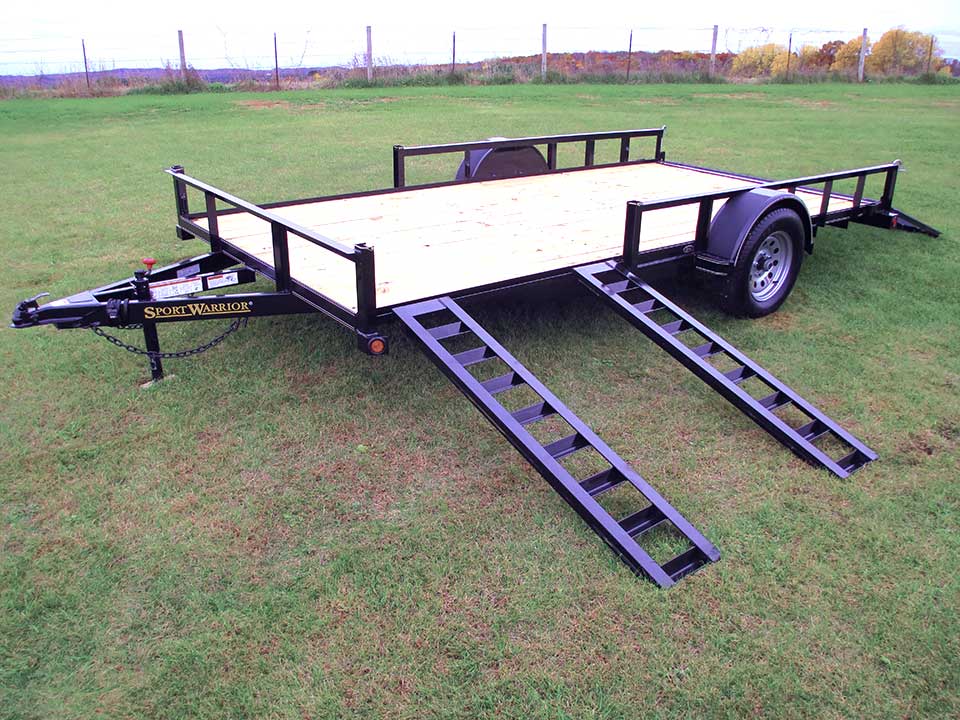

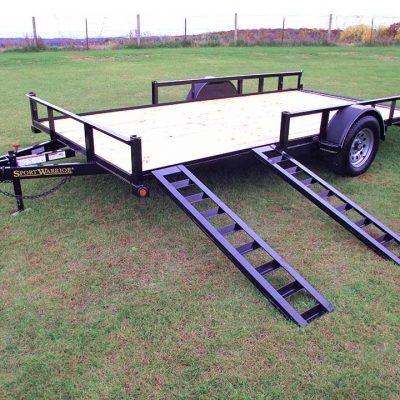

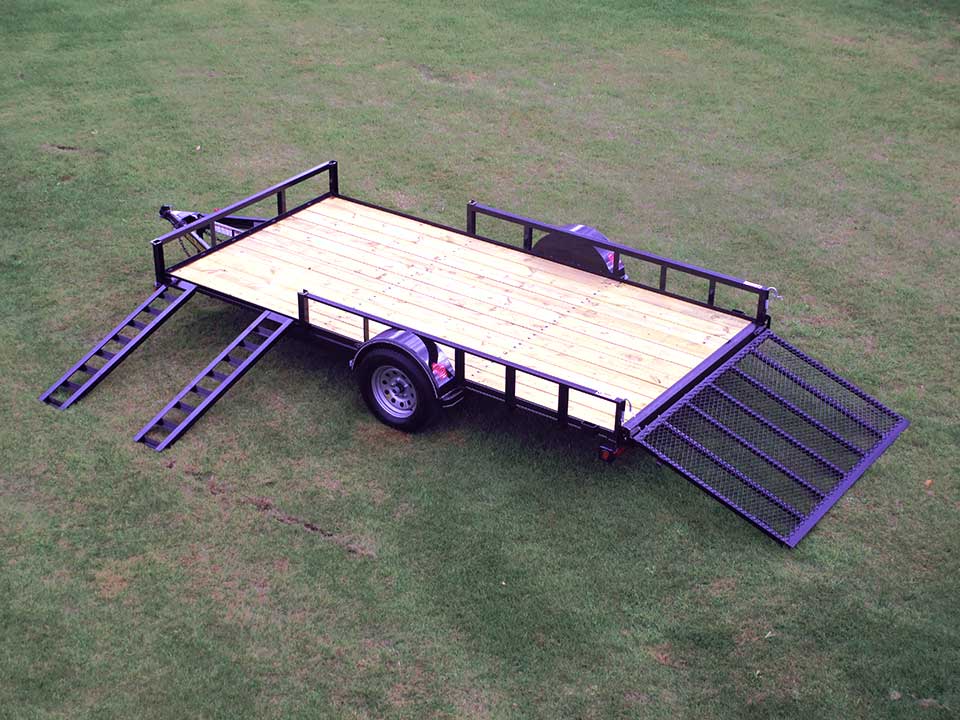

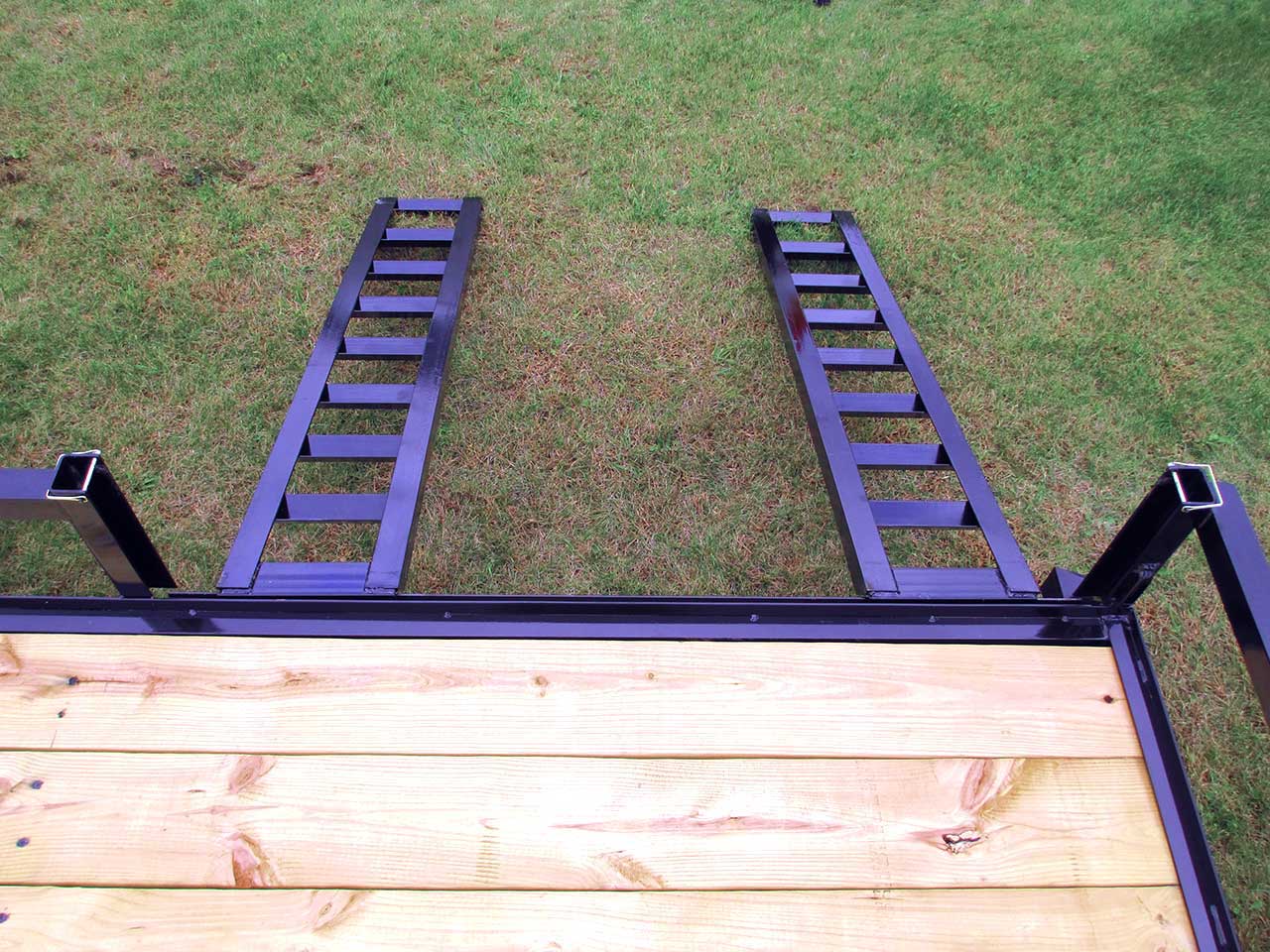

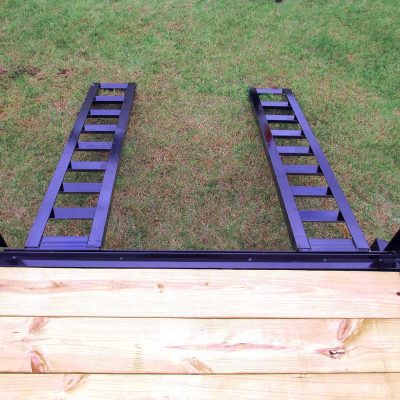

This ATV trailer has ramps on the side and rear for quick & simple loading.

Expoxy Ester Primer

Wiring in Conduit

Dexter Axles

15 inch tires

Single Axle Trailer with ATV PAckage

2x8 Treated Pine Floor

Gravel Guard

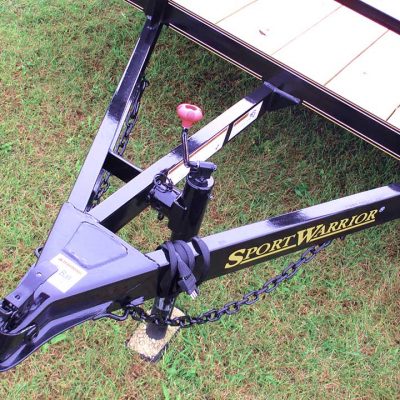

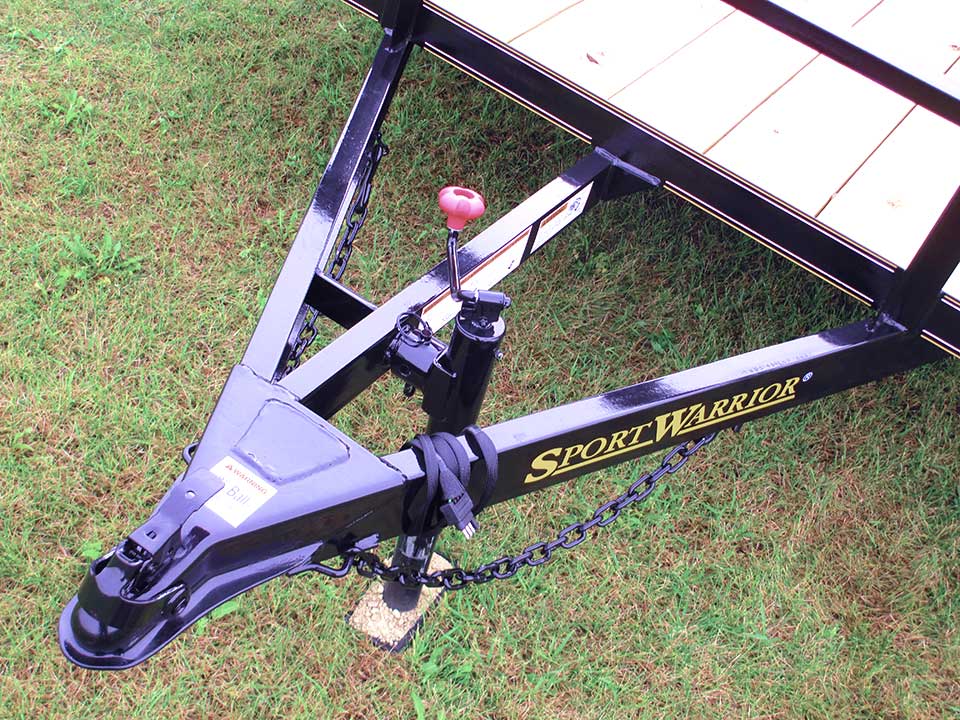

A-Frame Tongue

Set Back Tongue Jack

Trailer may be shown with optional equipment.
Sport Warrior Trailer
Trailer may be shown with optional equipment.
Specifications- Single Axle Utility w/Side Rails and ATV Package
Weight Rating: 2,990 LBS. GVWR w/evenly distributed load
Axle: 1-3,500# w/ez-lube
Suspension: 4 leaf double eye springs

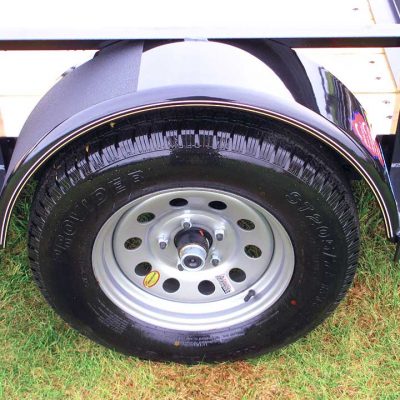

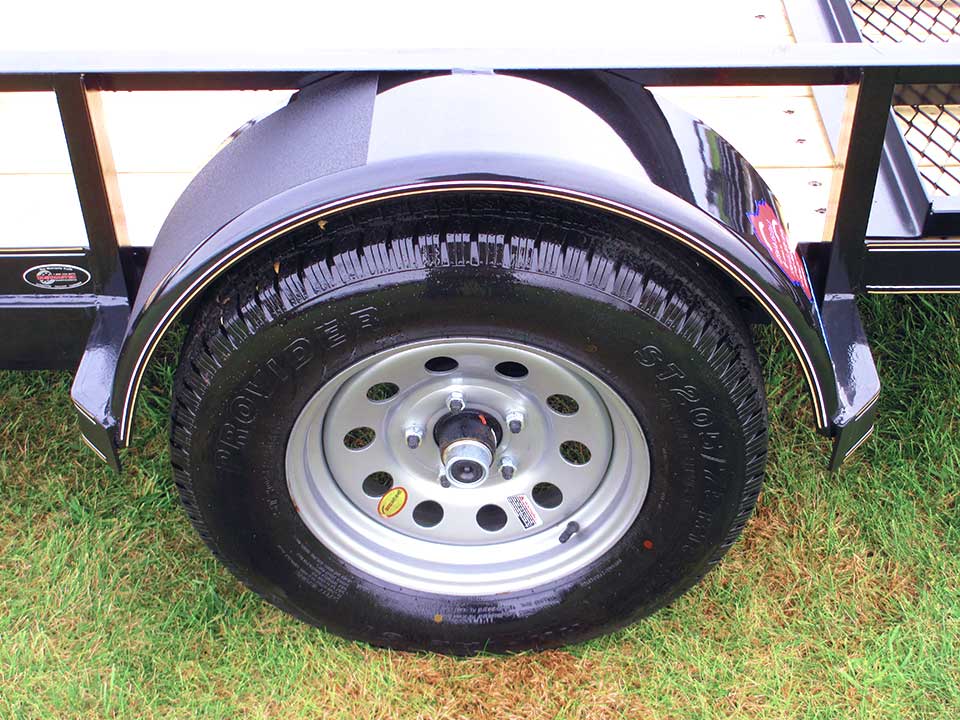

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels
Fenders: 9″x32″ 16 ga. smooth w/stoneguard
Hitch: 2″ Atwood A-frame w/safety chains
Jack: 2,000# topwind Rapid Jack
Structural: 2X3X3/16 frame & crossmembers (24″ centers), 2X2X1/8 top rail & uprights, 4″ channel tongue

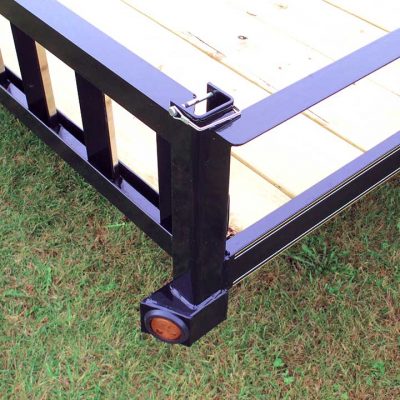

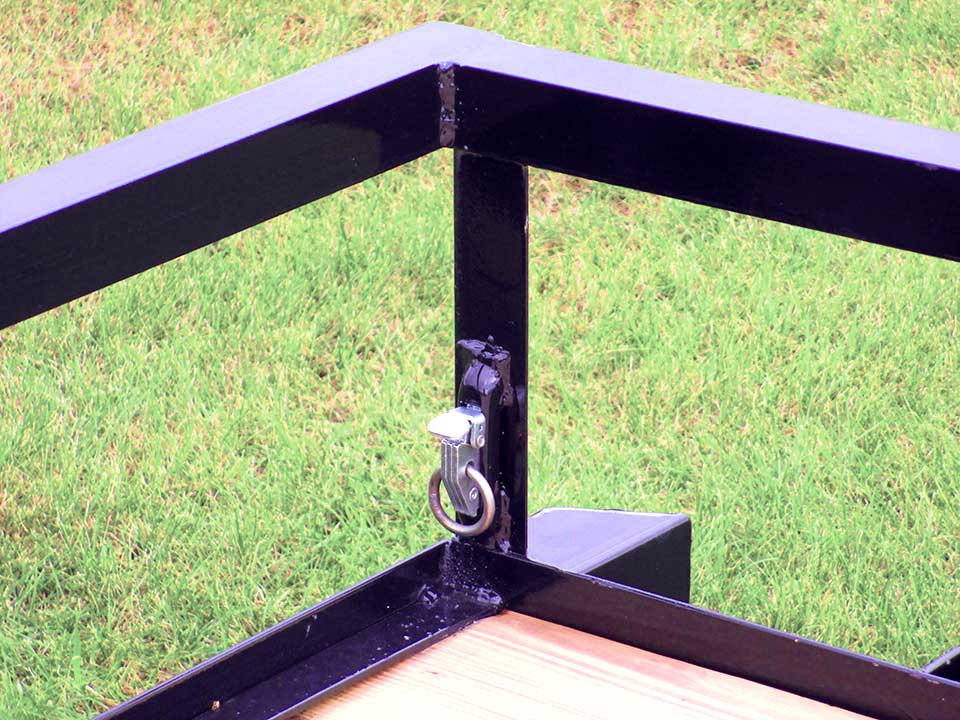

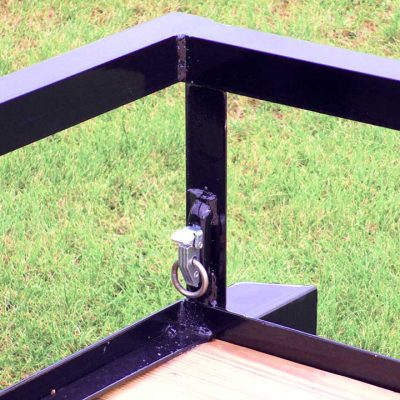

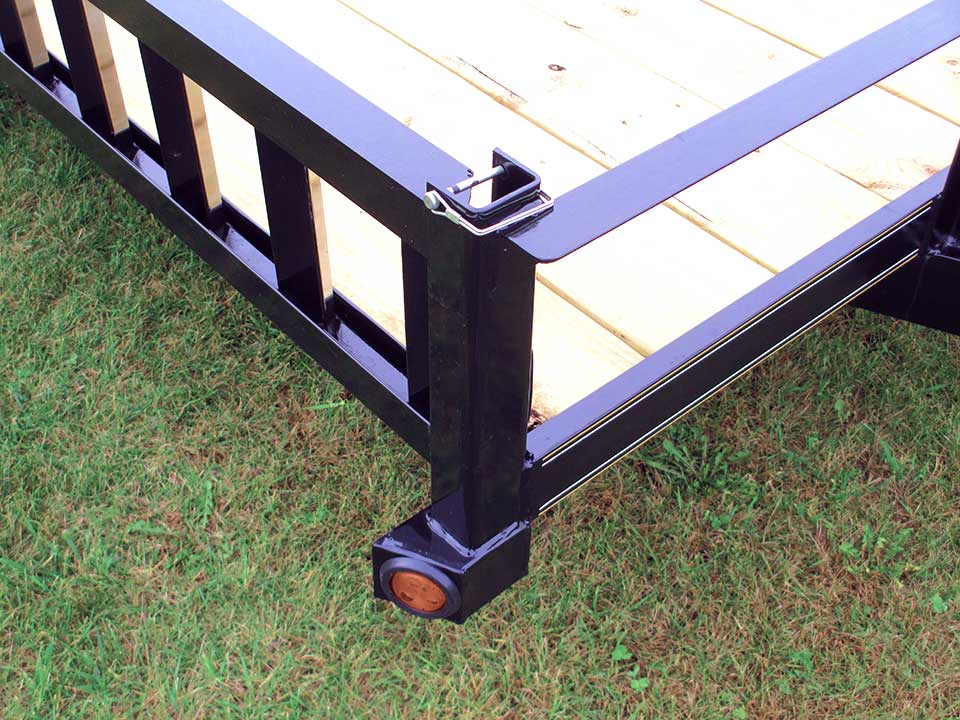

Tie Downs: 4 stake pocket tie downs, tail board brackets

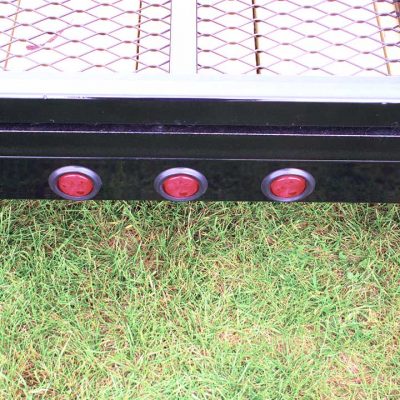

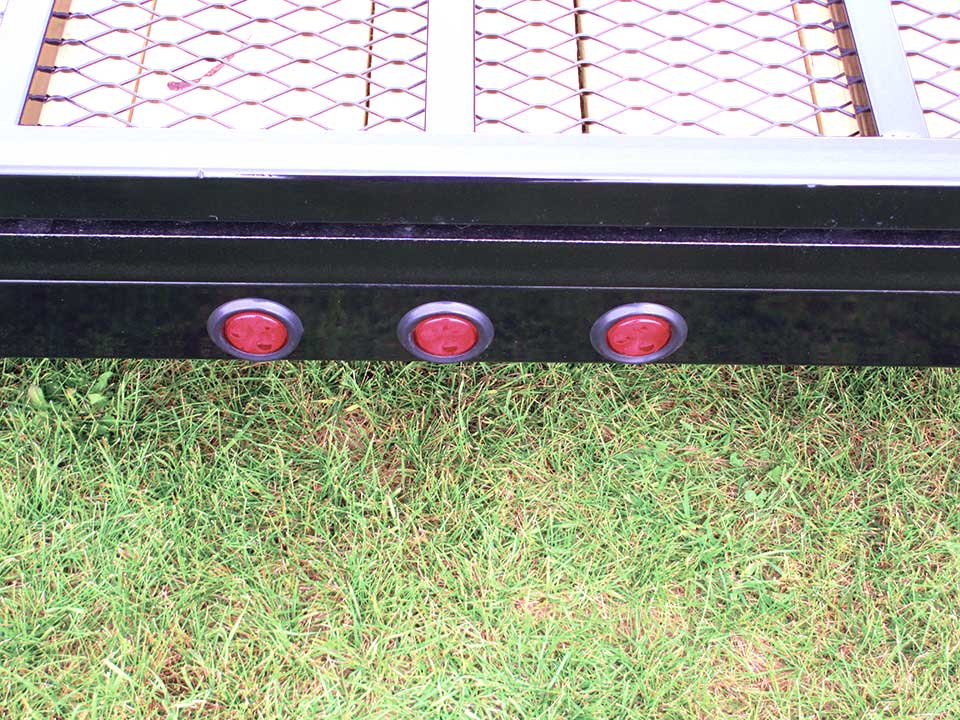

Electrical: All required lighting, license bracket w/light, wiring in conduit w/flat 4 way connector
Floor: 2X8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange, (Some custom colors – please call)



ATV Package Includes:

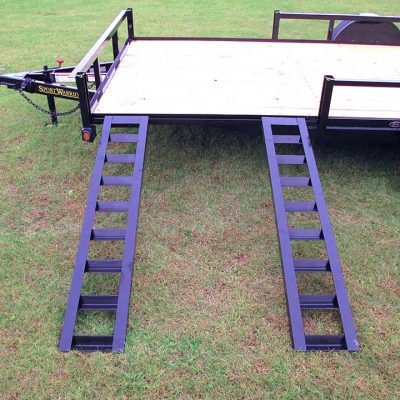

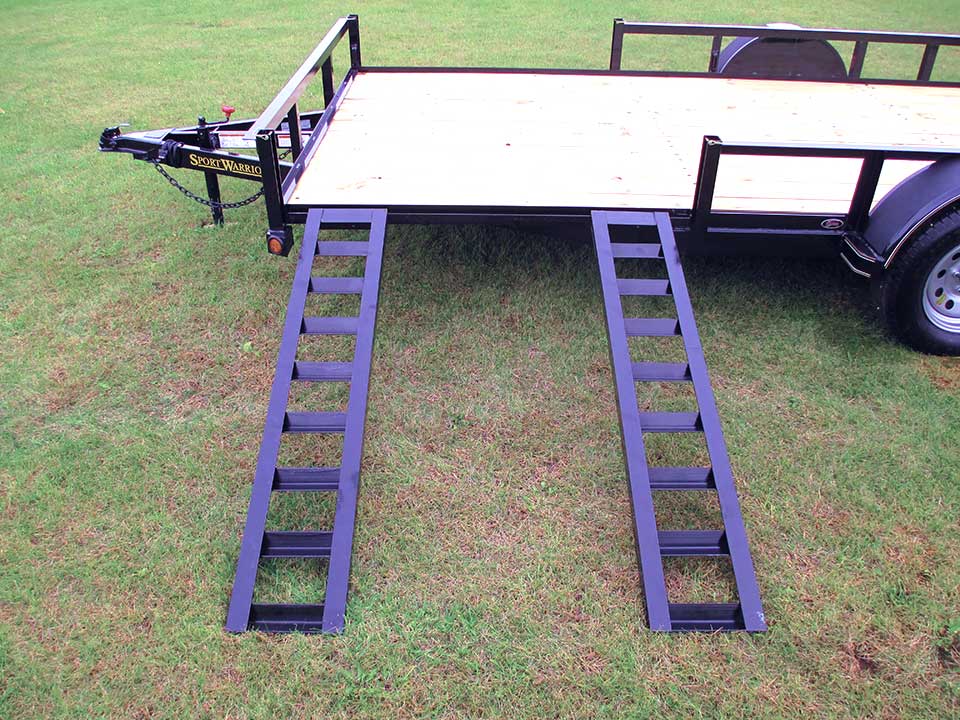

 2 side pockets w/ramp lip & ramps and rear tail board holder w/ramp lip. Has re-enforced tongue structure

Bed Size & Prices
Prices Current as of December, 2017

 83″ X 12′ w/ATV package: $1,491

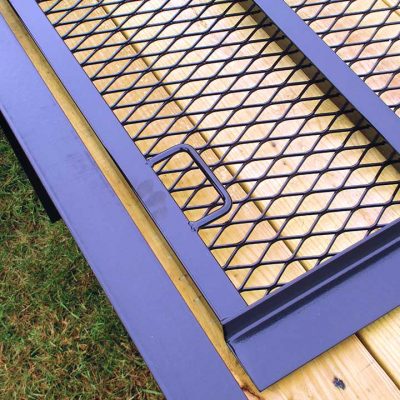

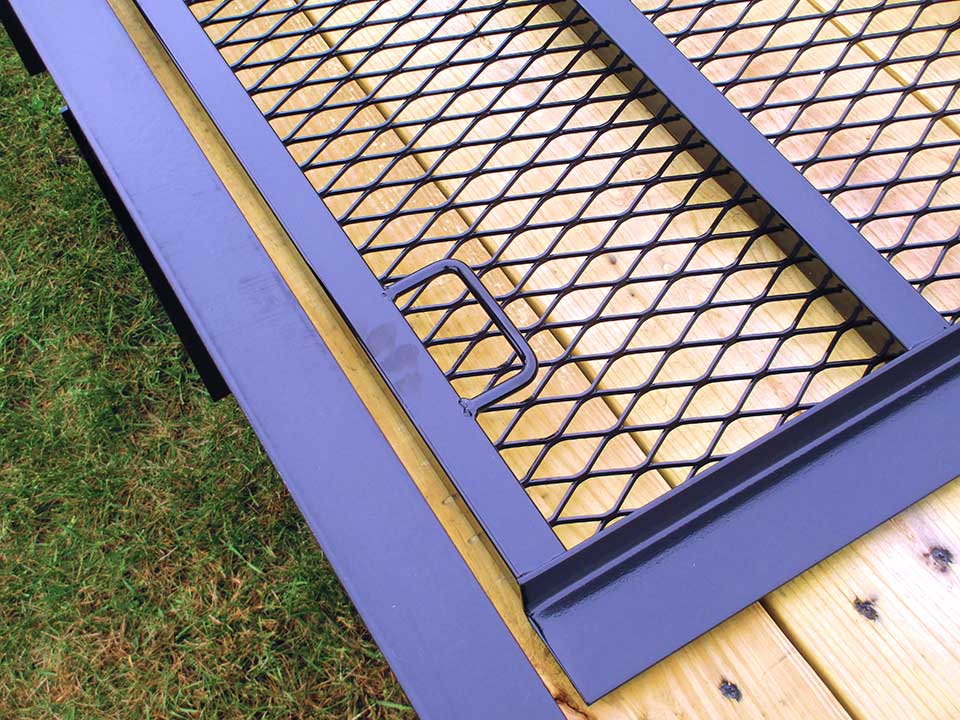

 83″ X 12′ w/ATV package and 48″ rear ramp gate: $1,611

 83″ X 14′ w/ATV package and 48″ rear ramp gate: $1,636

printable-brochure-button-250px

Some Options

 Spare ST 205/75 R15 LR “C” tire w/silver mod wheel: $135

 Spare silver mod wheel w/o tire: $45

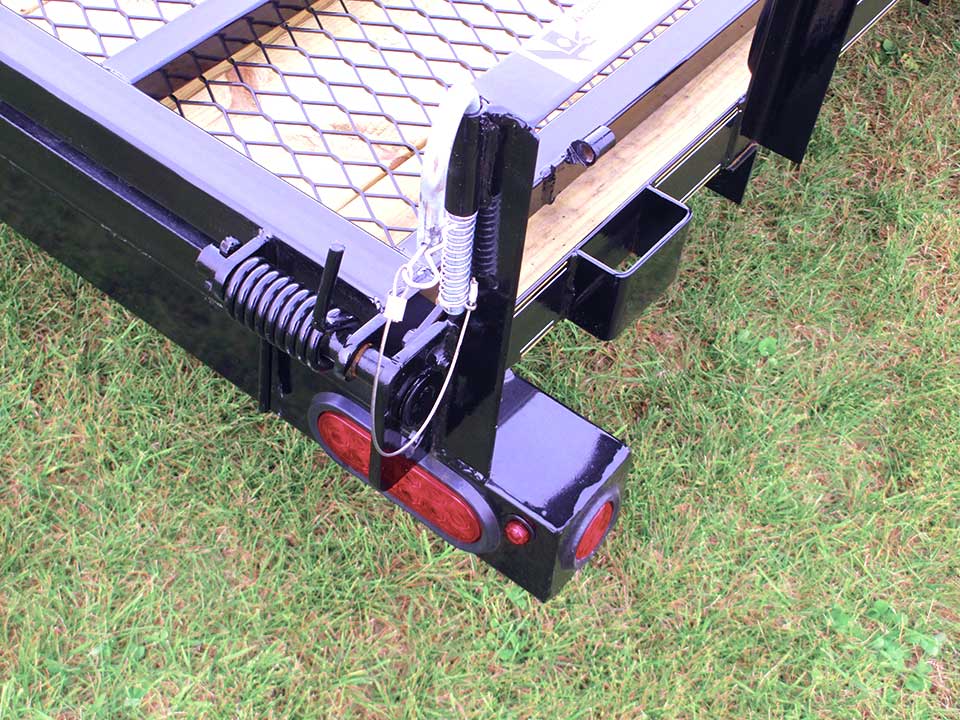

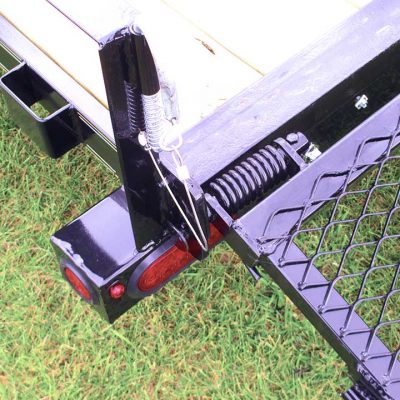

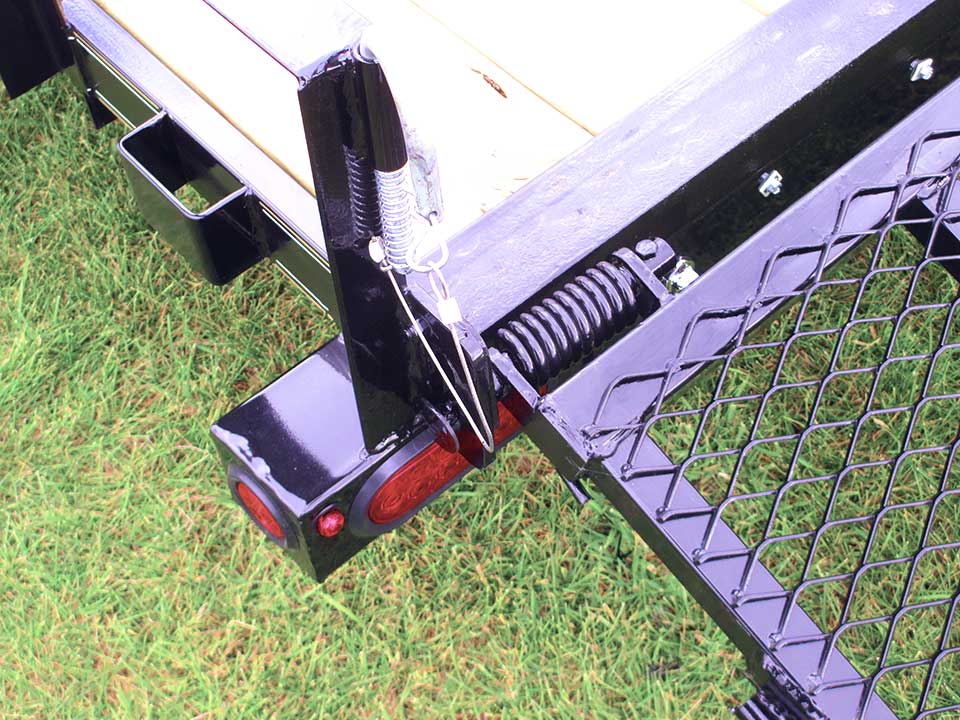

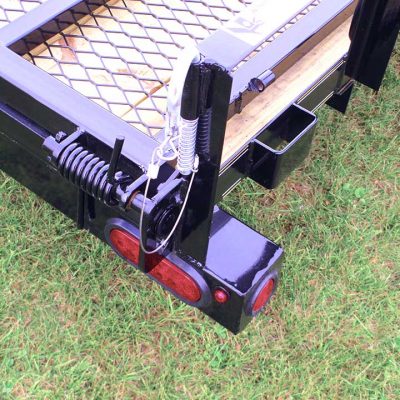

 Ramp gate spring assist: $20 each
Note: Two springs required for 83″ wides

 Side ramp package

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
