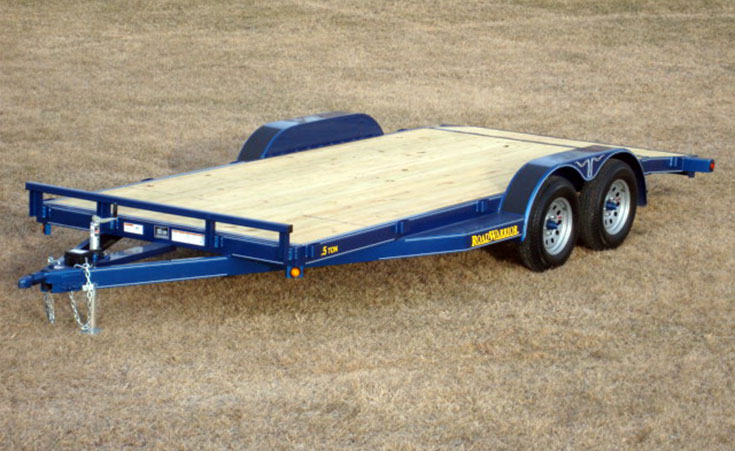

| Specifications - Car Hauler, Wood Floor |
| Weight Rating: 7,000 LBS. GVWR w/evenly distributed load |
| Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger |
| Suspension: 4 leaf double eye springs |
| Tires & Wheels: ST205/75 D15 load range C tires, 5x5 bolt pattern silver mod wheels |
| Fenders: 9"x72" 16 ga. smooth teardrop w/stoneguard |
| Hitch: 2" 7,000# Bulldog w/safety chains |
| Jack: 2,000# topwind Rapid Jack |
| Structural: 5" channel frame and tongue, running board steps, 3" channel crossmembers (24" centers)
|
| Tie Downs: 14 stake pockets, 2 X 2 tubing bump bar |
| Ramps: 2X2 tubing (5'long X 18" wide), slides in from rear |
| Electrical: All required lighting, license bracket w/light, sealed factory wiring harness w/7 way connector |
| Floor: 2X8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
Note: Trailer length includes dove tail. (Example: 18' trailer with dove tail has an 18' bed including the dove tail.)
Bed Size & Prices
Prices Current as of May, 2013
• 83" X 16': $2,461
• 83" X 16' w/dovetail: $2,519
• 83" X 18': $2,582
• 83" X 18' w/dovetail: $2,599
• 83" X 20': $2,662
• 83" X 20' w/dovetail: $2,672
Some Options
• Spare ST 205/75 D15 LR "C" tire w/silver mod wheel: $109
• Spare silver mod wheel w/o tire: $45
• Second electric brake: N/C (Incl. as standard equipment)
• 1/8" steel treadplate floor (in lieu of treated wood): $30/Lin. Foot
• 48" standard ramp gate (in lieu of standard ramps): $75
• 5' standard ramp gate(in lieu of standard ramps): $100
• 48" split tractor ramp gate w/knees & spring (in lieu of standard ramps): $225
• 5' split tractor ramp gate w/knees & spring (in lieu of standard ramps): $275
• 5' stand up knee ramps (in lieu of standard ramps): $100
• Side rails added to trailer (2 X 2 X1/8 angle top rail): $125
• Side rails added to trailer (2 3/8 pipe top rail): $150
• 102" wide package w/drive over fenders: $399 Click to view 102 package
• 102" wide deck over tires: Click to view 102 deck over package
• 7,000# drop leg jack (in lieu of standard): $60
• 2 5/16 Bulldog ball coupler (in lieu of standard): $50
• Adjustable pintle hitch (in lieu of standard): $50
• 14 ga. treadplate heavy duty fenders: $100
• Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box
• Poly tongue mounted toolbox: $99 Click to view poly tongue box
• LED lights: $75
• Ramp Extenders (for low clearance vehicles): $149 Click to view ramp extenders
• Bolt-on spare tire mount: $50 Click to view spare mount
• Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
;)
;)
