No ramps necessary with the 7 Ton Equipment Tilt Bed Trailer

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

Industrial

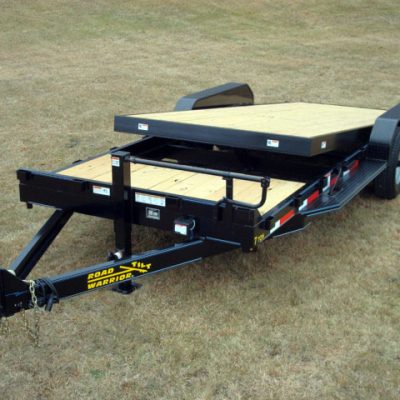

7 Ton Equipment Tilt Bed Trailer

Gravity Tilt

No Ramps - Tilt Bed

10,000 Pound Jack

Steel Treadplate Fenders

Trailer may be shown with optional equipment.

Road Warrior Tilt Trailer

Specifications – 7 Ton Equipment Tilt Bed Trailer
Weight Rating: 14,000 LBS. GVWR w/evenly distributed load
Axles: 2 – 7,000# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 6 leaf slipper springs
Tires & Wheels: ST235/80 R16 load range E radial tires, 8×6.5 bolt pattern silver mod wheels
Fenders: 9″x72″ 14 ga. treadplate fenders

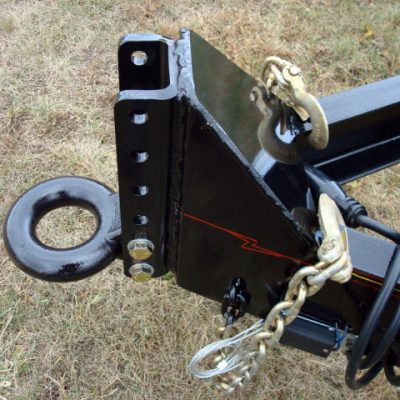

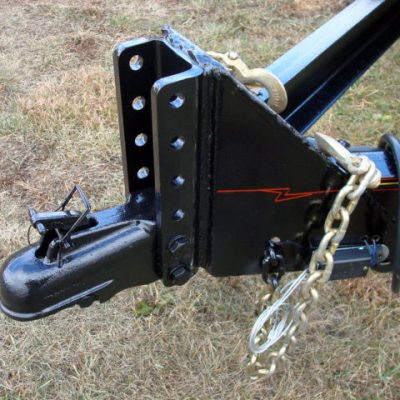

Hitch: Adjustable 2 5/16 ball or pintle (14,000# rated), H.D. safety chains
Jack: 10,000# dropleg

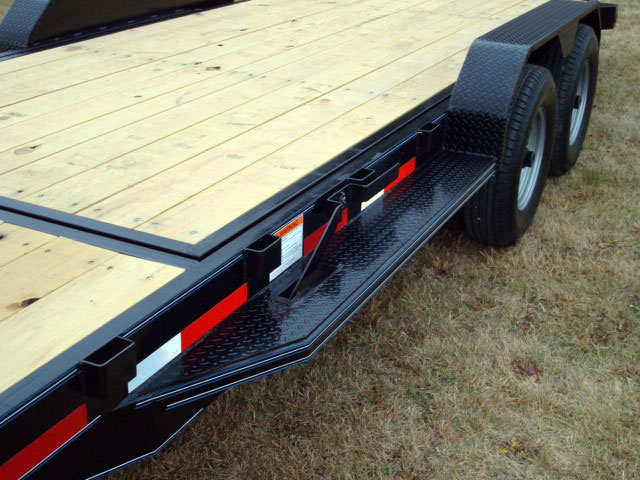

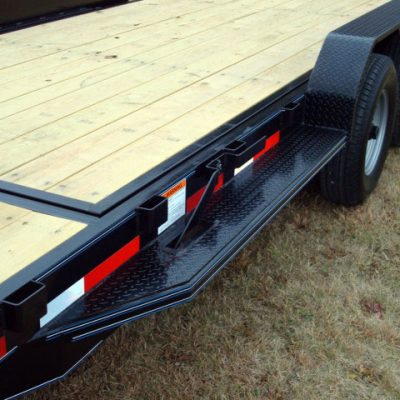

Structural: Heavy 6″ x 10.5 lbs. per foot channel main frame, 6″ channel inner frame and tongue, 3″ channel crossmembers (16″ centers), special 1/8″ treadplate tail section & running board steps

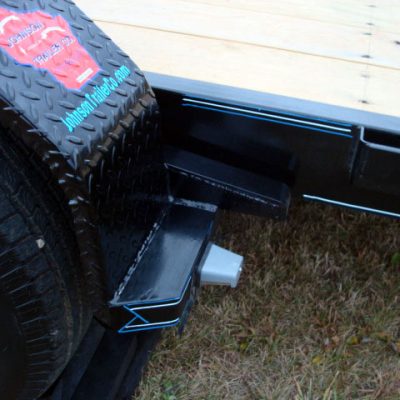

Tie Downs 14 stake pockets w/rubrail behind fenders, 5″ solid bump bar

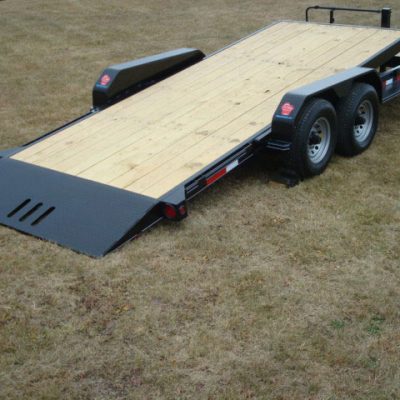

Tilt: 4′ fixed deck & 18′ tilting deck, special cam lock bed latch system, hydraulic cushion cylinder, hinge for tilt is 2 3/8 I.D. X 2 7/8 O.D. heavy wall pipe w/grease zerks
Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape
Floor: 2 X 8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)
Bed Size & Prices
Prices Current as of August, 2017

 83″ X 22′ w/4′ fixed deck and tilting 18′ deck: $4,854

printable-brochure-button-250px

Some Options

 Now standard with LED lights

 Spare ST 235/80 R16 LR “E” tire w/silver mod wheel: $175

 Adjustable 2 5/16 ball coupler or pintle hitch: N/C

 Gooseneck package: $1250

 Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box
Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings

Bolt-on spare tire mount: $50 Click to view spare mount

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
