Commercial and industrial quality. These trailers are built to take it.

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

Industrial

7 ton Equipment Trailer

Treadplate Fenders

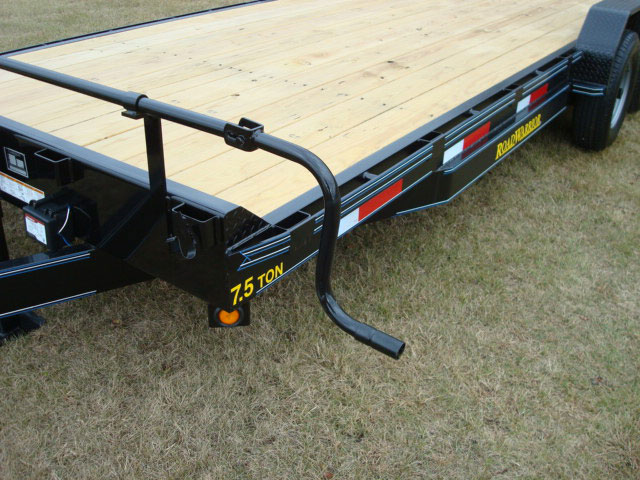

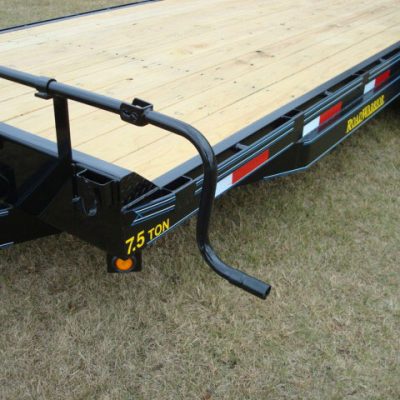

Bump Bar

10,000 Pound Jack

7" Channel Main Frame

Trailer may be shown with optional equipment.
Road Warrior Trailer
Specifications – 7.5 Ton Equipment
Weight Rating: 15,000 LBS. GVWR w/evenly distributed load
Axles: 2 – 7,000# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 6 leaf slipper springs
Tires & Wheels: ST235/80 R16 load range E radial tires, 8×6.5 bolt pattern silver mod wheels
Fenders: 9″x72″ 14 ga. treadplate fenders
Hitch: Adjustable 2 5/16″ ball or pintle (14,000# rated), H.D. safety chains
Jack: 10,000# dropleg
Structural: 7″ channel frame & 6″ Channel tongue, 3″ channel crossmembers (16″ centers)
Tie Downs 14 stake pockets, 5″ solid bump bar

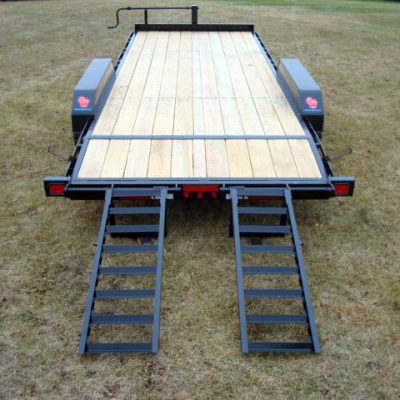

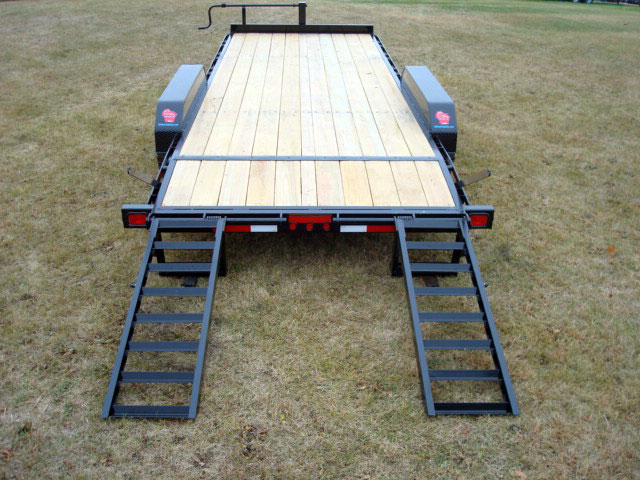

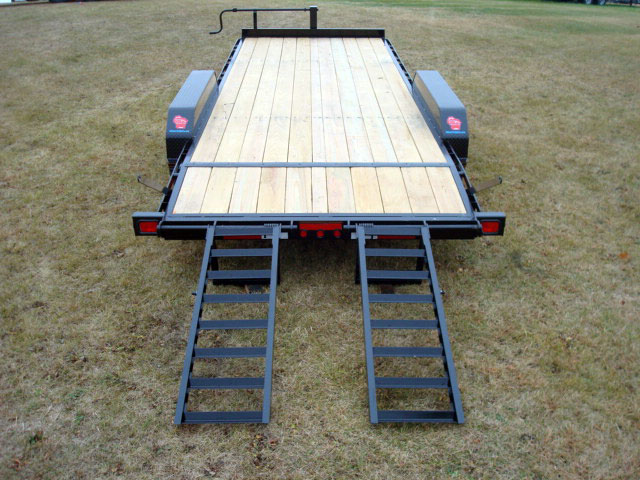

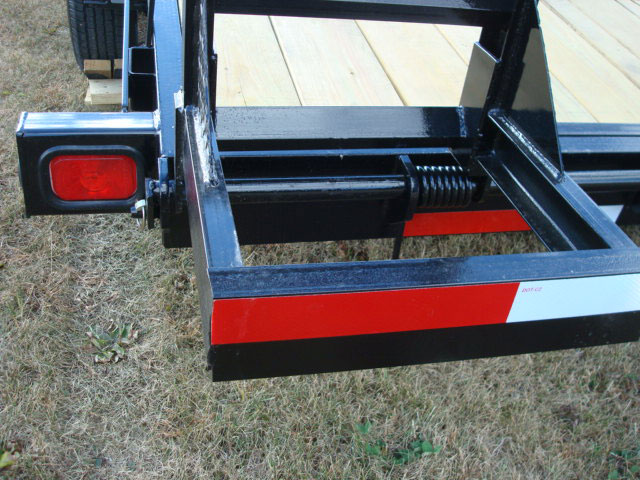

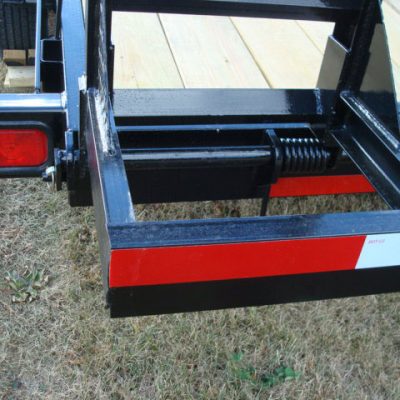

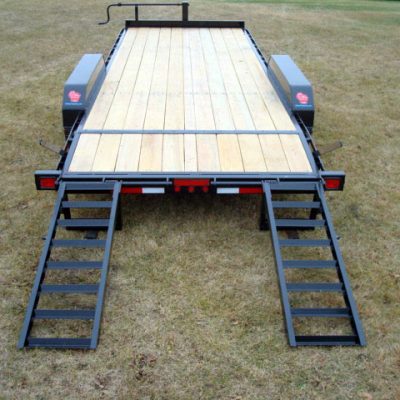

Ramps Spring assist stand up knee ramps, 5′ tall x 18″ wide
Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape
Floor: 2 X 8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)

Note: Trailer length includes dove tail. (Example: 18′ trailer with dove tail has an 18′ bed including the dove tail.)

Bed Size & Prices
Prices Current as of October, 2017

 83″ X 16′ w/32″ dove tail & knee ramps: $3,715

 83″ X 18′ w/32″ dove tail & knee ramps: $3,815

 83″ X 20′ w/32″ dove tail & knee ramps: $3,915

 83″ X 22′ w/32″ dove tail & knee ramps: $4,015

83″ X 24′ w/32″ dove tail & knee ramps: $4,115

 83″ x 22′ 7 ton tilt bed: Click to view 7 ton tilt bed equipment

printable-brochure-button-250px

Some Options

 Spare ST 235/80 R16 LR “E” tire w/silver mod wheel: $175

 Spare silver mod wheel w/o tire: $57

Rubrail w/pipespools: $75

 5′ slide in ramps w/storage pockets in rear : N/C

 2 5/16 ball coupler or pintle hitch: N/C

 Gooseneck package: $1250

 15,000# GVWR:  Click to view 7.5 ton equipment trailer

 102″ wide package w/drive over fenders: $399  Click to view 102″ package

 Tilt bed: Click to view 7 ton tilt bed equipment

 Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box

Bolt-on spare tire mount: $50 Click to view spare mount

Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
