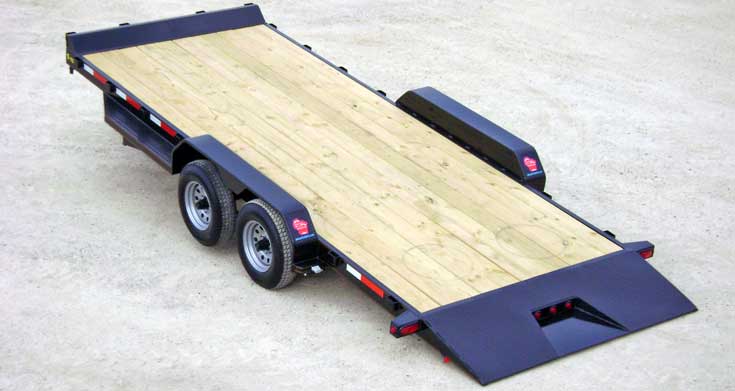

5 Ton Tilt Bed Trailer

• No ramps necessary!•



Trailer may be shown with optional equipment.

Specifications - 5 Ton Tilt Bed Equipment

Weight Rating: 10,000 LBS. GVWR w/evenly distributed load

Axles:

Dexter axles, 2 - 5,200# electric brakes, w/ez-lube, safety breakaway w/charger

Suspension: 5 leaf double eye springs

Tires & Wheels: ST225/75 D15 load range D tires, 6x5.5 bolt pattern silver mod wheels

Fenders: 9"x72" 14 ga. treadplate teardrop w/stoneguard

Hitch: 2 5/16" Bulldog with H.D. safety chains

Jack: 7,000# topwind, drop leg

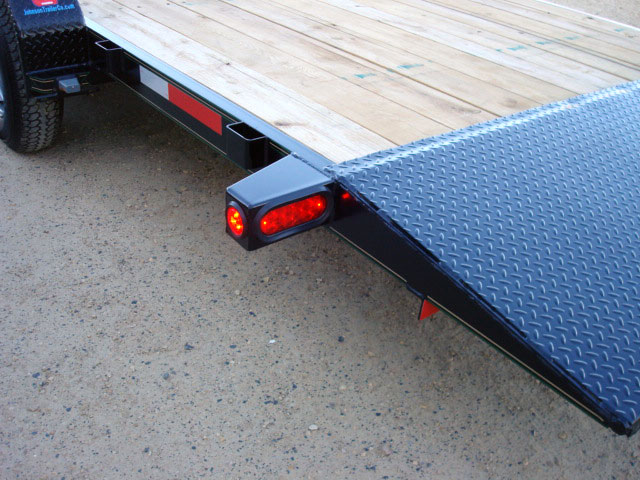

Structural: 6" channel frame & tongue, 3" channel crossmembers (16" centers), special 1/8" treadplate tail section & running board steps

Tie Downs 14 stake pockets, special formed bump bar in front

Tilt: Special 2 speed hand hydraulic pump w/cylinder, pump handle storage, special cam lock bed latch system

Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

Floor: 2 X 8 treated yellow pine decking

Paint: Phenolic epxoy ester primer w/acrylic finish

Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call)

Bed Size & Prices
Prices Current as of February, 2012

• 83" X 20': $3,825

• 83" X 22": $3,925

• Click to view 3.5 ton tilt bed trailer

• Click to view 7 ton tilt bed trailer

Some Options

• Spare ST 225/75 D15 LR "D" tire w/silver mod wheel: $129

• Spare silver mod wheel w/o tire: $45

• 2 5/16 ball coupler or pintle hitch: N/C

• 102" wide package w/drive over fenders: $399 Click to view 102 package

• 14,000# GVWR tilt bed: Click to view 7 ton tilt bed trailer

• LED lights: $75

• Electric/hydraulic lift (in lieu of hand operated): $525

Custom built trailers and other options are available. Call us with your needs.

Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)

We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
