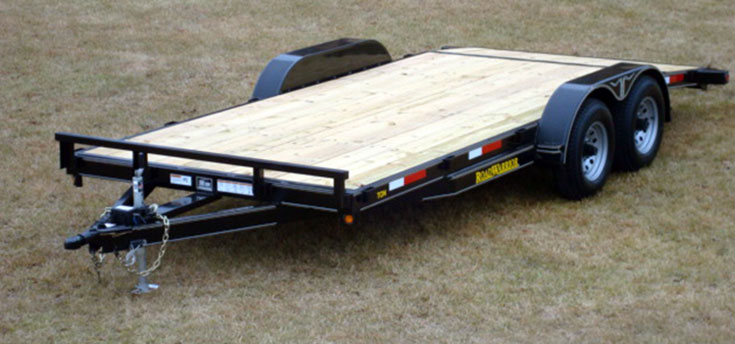

| Specifications - 5 Ton Car Hauler |
| Weight Rating: 10,000 LBS. GVWR w/evenly distributed load |
Axles: 2 - 5200#  Dexter electric brake axles w/ez lube, safety breakaway w/charger |
| Suspension: 5 leaf double eye springs |
| Tires & Wheels: ST225/75 D15 load range D tires, 6x5.5 bolt pattern silver mod wheels |
| Fenders: 9"x72" 16 ga. smooth teardrop w/stoneguard |
| Hitch: 2 5/15"Bulldog H.D. w/safety chains |
| Jack: 2,000# setback, topwind |
| Structural: 5" channel frame and tongue, running board steps, 3" channel crossmembers (16" centers)
|
| Tie Downs: 14 stake pockets, 2 X 2 tubing bump bar |
| Ramps: 2X2 tubing (5'long X 18" wide), slides in from rear |
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2X8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
Note: Trailer length includes dove tail. (Example: 18' trailer with dove tail has an 18' bed including the dove tail.)
Bed Size & Prices
Prices Current as of February, 2012
• 83" X 16': $2,775
• 83" X 16' w/dovetail: $2,833
• 83" X 18': $2,896
• 83" X 18' w/dovetail: $2,913
• 83" X 20' : $2,976
• 83" X 20' w/dovetail: $2,986
Some Options
• Spare ST 225/75 D15 LR "D" tire w/silver mod wheel: $129
• Spare silver mod wheel w/o tire: $45
• Bolt on spare tire mount: $50
• 1/8" steel treadplate floor (in lieu of treated wood): $30/Lin. Foot
• 102" wide package w/drive over fenders: $399 Click to view 102 package
• 7,000# drop leg jack (in lieu of standard): $60
• Adjustable pintle hitch (in lieu of standard): $50
• Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box
• Poly tongue mounted toolbox: $99 Click to view poly tongue box
• LED lights: $75
• Ramp Extenders (for low clearance vehicles): $149 Click to view ramp extenders
• Bolt-on spare tire mount: $50 Click to view spare mount
• Stake pocket D-rings: $25 each or 5 for $100 Click to view stake pocket D-rings
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
;)
;)
