| Specifications - 5 Ton Deckover Flatbed |
| Weight Rating: 10,000 LBS. GVWR w/evenly distributed load |
Axles:  Dexter axles, 2 - 5,200# electric brakes, w/ez-lube, safety breakaway, w/charger |
| Suspension: 5 leaf slipper springs |
| Tires & Wheels: 7.50-16 load range E tires, 6 X 5 1/2 bolt pattern silver mod wheels |
| Hitch: Adjustable 2 5/16 ball or pintle, H.D. safety chains |
| Jack: 7,000# topwind, dropleg |
| Structural: 10" I-beam frame & tongue, 5" channel lace rail, 3" channel crossmembers (16" centers)
|
| Tie Downs Stake pockets and rubrail, 5" solid bump bar w/4 stake pockets
|
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
6 Ton Deckover Flatbed
| Specifications - 6 Ton Deckover Flatbed |
| Weight Rating: 12,000 LBS. GVWR w/evenly distributed load |
| Axles: Dexter axles, 2 - 6,000# electric brakes, w/ez-lube, safety breakaway, w/charger |
| Suspension: 6 leaf slipper springs |
| Tires & Wheels: ST 235/80 R16 load range E radial tires, (3520 # rated), 8 X 6 1/2 bolt pattern silver mod wheels |
| Hitch: Adjustable 2 5/16 ball or pintle, H.D. safety chains |
| Jack: 10,000# dropleg |
| Structural: 10" I-beam frame & tongue, 5" channel lace rail, 3" channel crossmembers (16" centers)
|
| Tie Downs Stake pockets and rubrail, 5" solid bump bar w/4 stake pockets
|
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
7 Ton Deckover Flatbed
| Specifications - 7 Ton Deckover Flatbed |
| Weight Rating: 14,000 LBS. GVWR w/evenly distributed load |
| Axles: Dexter axles, 2 - 7,000# electric brakes, w/ez-lube, safety breakaway, w/charger |
| Suspension: 6 leaf slipper springs |
| Tires & Wheels: ST 235/80 R16 load range E radial tires, (3520 # rated), 8 X 6 1/2 bolt pattern silver mod wheels |
| Hitch: Adjustable 2 5/16 ball or pintle, H.D. safety chains |
| Jack: 10,000# dropleg |
| Structural: 10" I-beam frame & tongue, 5" channel lace rail, 3" channel crossmembers (16" centers) |
| Tie Downs Stake pockets and rubrail, 5" solid bump bar w/4 stake pockets
|
| Electrical: All required lighting, sealed beam lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call) |
Note: Prices shown are for a straight flat bed. If a dove tail w/ramps is desired choose from the options below and add to the base price.
(Adding a dove tail does not increase bed length. Example: 20' trailer with a 5' dove tail is 15' flat and 5' dove tail.)
5 Ton
Bed Size & Prices
Prices Current as of February, 2012
• 96" X 16': $3,675
• 102" X 16': $3,725
• 96" X 18': $3,745
• 102" X 18': $3,795
• 96" X 20': $3,875
• 102" X 20': $3,925
• 96" X 22': $3,975
• 102" X 22': $4,025
• 96" X 24': $4,075
• 102" X 24': $4,125
|
6 Ton
Bed Size & Prices
Prices Current as of February, 2012
• 96" X 16': $3,865
• 102" X 16': $3,915
• 96" X 18': $3,965
• 102" X 18': $4,015
• 96" X 20': $4,065
• 102" X 20': $4,115
• 96" X 22': $4,165
• 102" X 22': $4,215
• 96" X 24': $4,265
• 102" X 24': $4,315
|
7 Ton
Bed Size & Prices
Prices Current as of February, 2012
• 96" X 16': $4,095
• 102" X 16': $4,145
• 96" X 18': $4,195
• 102" X 18': $4,245
• 96" X 20': $4,295
• 102" X 20': $4,345
• 96" X 22': $4,395
• 102" X 22': $4,445
• 96" X 24': $4,495
• 102" X 24': $4,545
|
Some Options
• Spare silver mod wheel w/o tire (specify 6 or 8 bolt): $57
• Spare 7.50 - 16 LR "E" tire w/silver mod wheel: $150
• Spare ST 235/80 R16 LR "E" tire w/silver mod wheel: $175
• 2 5/16 ball coupler or pintle hitch: N/C

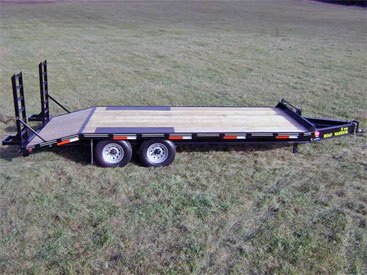

• 4' Dove tail W/2-5' high X 16" wide stand up knee ramps: $300

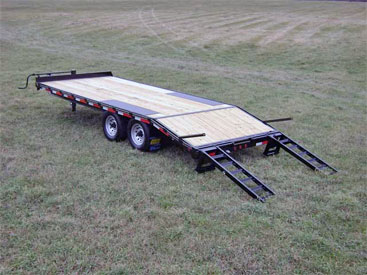

• 5' Dove tail W/2 postion floor level ramps: $325
• 7,000# GVWR: Click to view deckover ATV trailer
• 21,000# GVWR: Click to view 10.5 ton gooseneck & pintle trailer
• 24,000# GVWR: Click to view 12 ton gooseneck & pintle trailer
• LED lights: $75

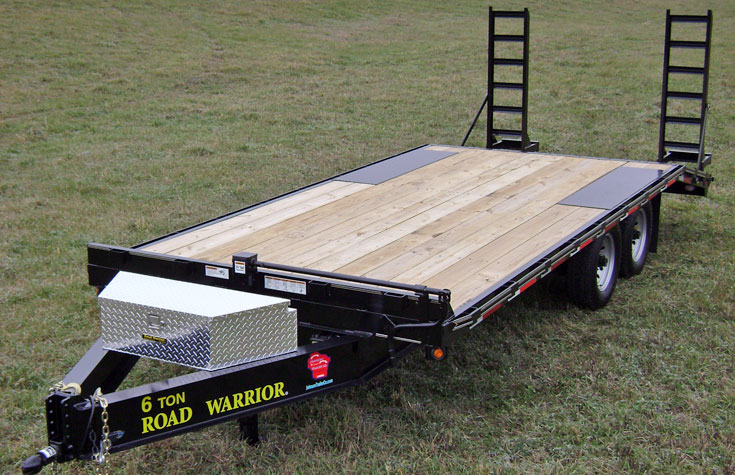

• Aluminum tongue mounted toolbox: $199
• Poly tongue mounted toolbox: $99
Aluminum Tongue Mounted Toolbox |
Poly Tongue Mounted Toolbox |
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
We at Johnson Trailer Co. are constantly striving to bring you the latest and most innovative designs at competitive prices. We are commited to updating and improving the performance of our products. Johnson Trailer Co. intends that the information, specifications, and prices available on this website be as accurate and up-to-date as possible. We cannot guarantee complete accuracy of information on this website.
|
|
;)
;)
;)
;)
;)
;)
;)
;)
