Commercial and industrial quality. These trailers are built to take it.

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

Industrial

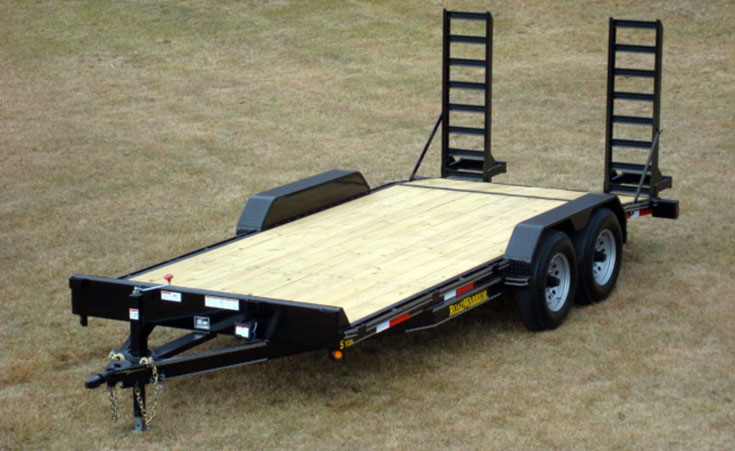

5 Ton Equipment Trailer

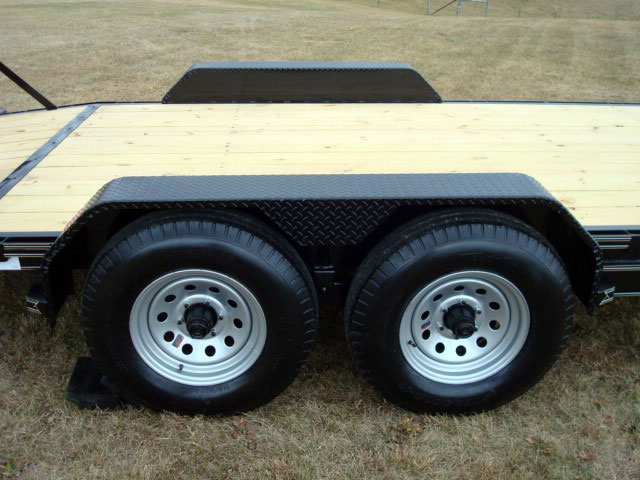

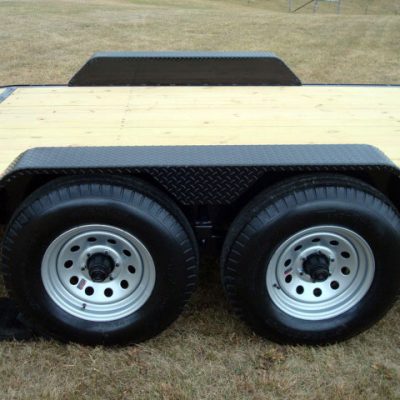

Treadplate Fenders

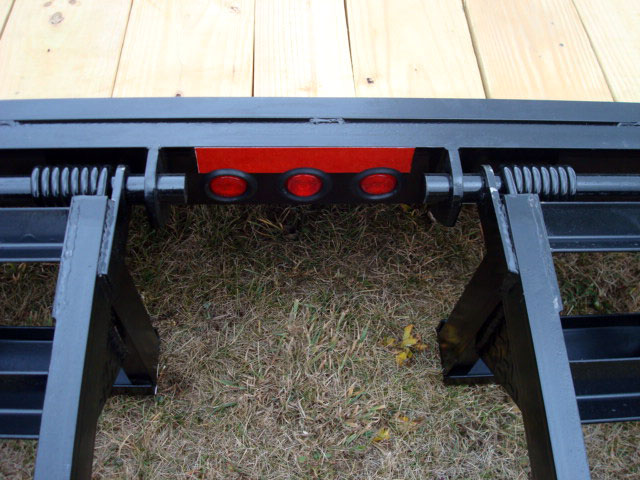

Bump Bar

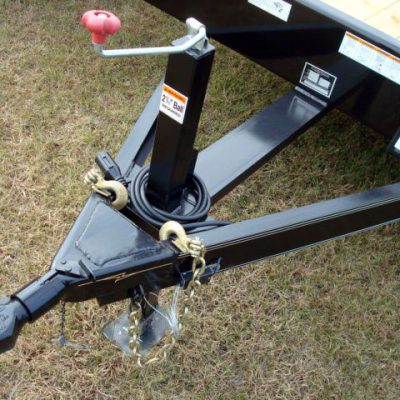

7,000 Pound Dropleg Jack

6 Inch Main Frame



Trailer may be shown with optional equipment.
Road Warrior Trailer
Specifications – 5 Ton Equipment
Weight Rating: 10,000 LBS. GVWR w/evenly distributed load
Axles: 2 – 5,200# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 5 leaf slipper springs
Tires & Wheels: ST235/80 R16 load range E tires,6 x 5 1/2 bolt pattern silver mod wheels

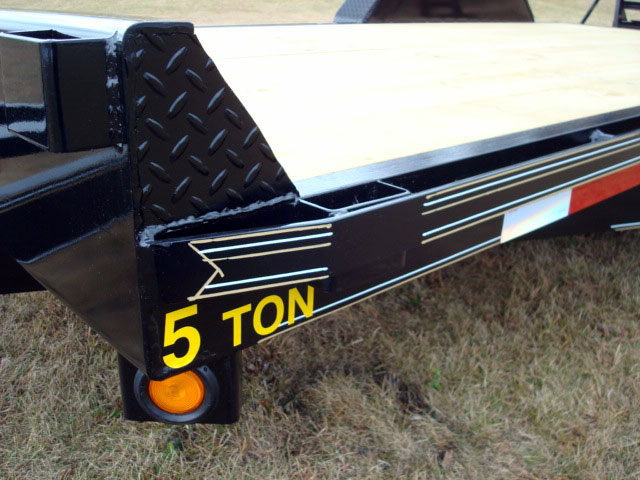

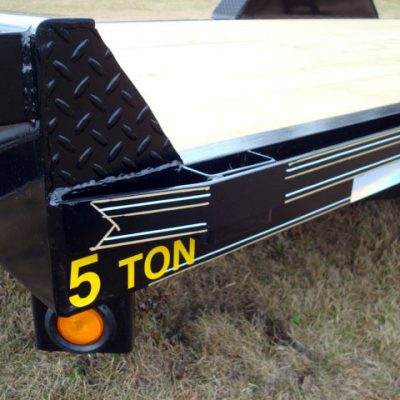

Fenders: 9″x72″ 14 ga. treadplate teardrop

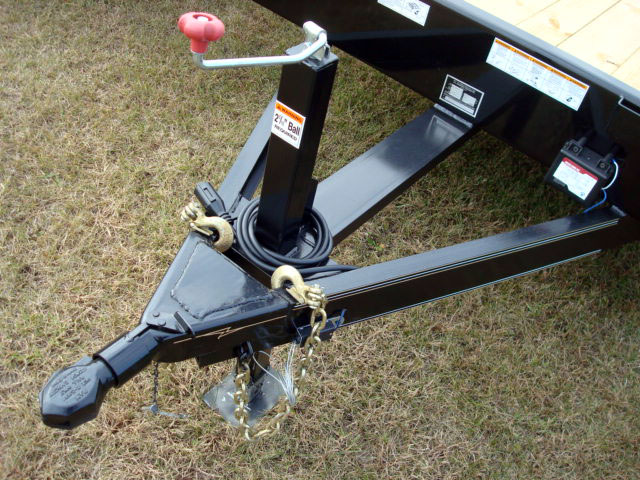

Hitch: 2 5/16″ Bulldog with H.D. safety chains
Jack: 7,000# topwind, dropleg
Structural: 5″ channel frame & tongue, 3″ channel crossmembers (16″ centers)
Tie Downs: 14 stake pockets, 5″ solid bump bar

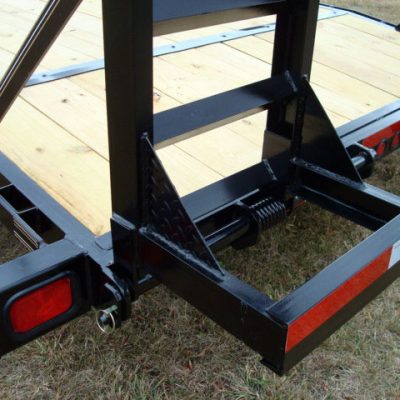

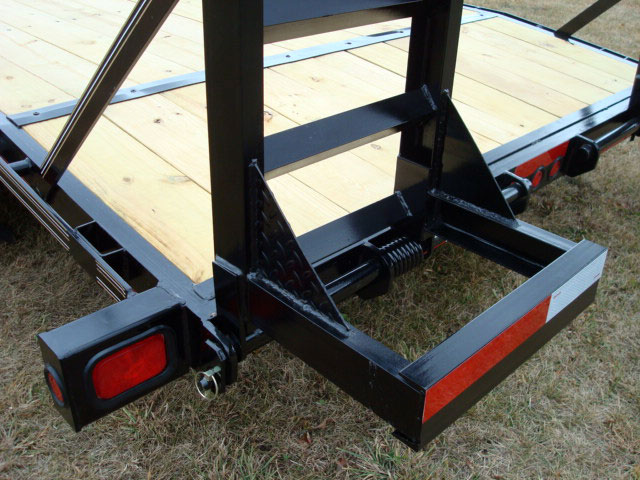

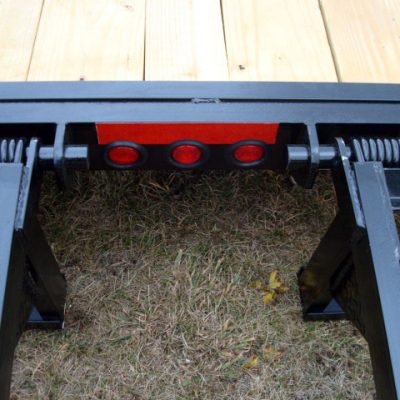

Ramps: Spring assist stand up knee ramps, 5′ tall x 18″ wide

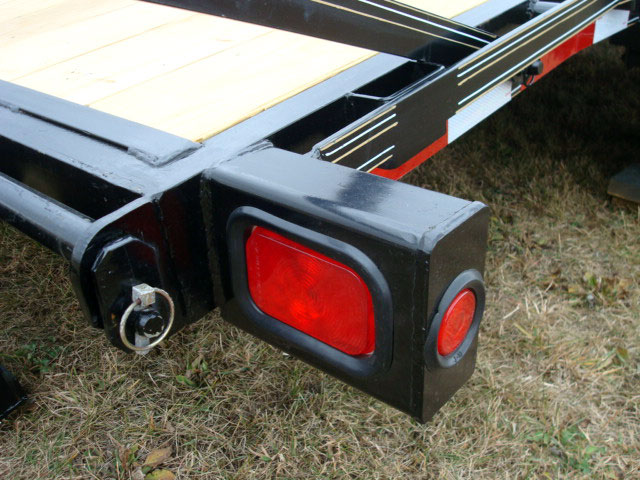

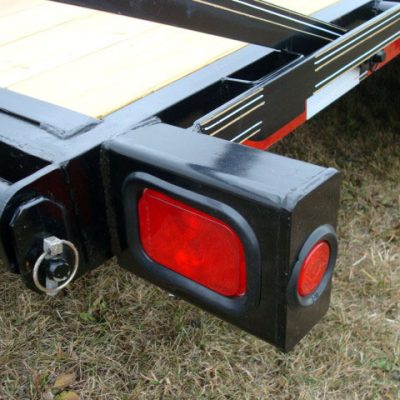

Electrical: LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape
Floor: 2 X 8 treated yellow pine decking
Paint: Phosphate etched pre-treatment with epoxy primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call.)

Note: Trailer length includes dove tail. (Example: 18′ trailer with dove tail has an 18′ bed including the dove tail.)

Bed Size & Prices
Prices Current as of December, 2017

 83″ X 16′ w/32″ dove & knee ramps: $3,400

 83″ X 18′ w/32″ dove & knee ramps: $3,500

 83″ X 20′ w/32″ dove & knee ramps: $3,600

printable-brochure-button-250px

Some Options

 Spare ST 235/80 R16 “E” tire w/silver mod wheel: $175

 Spare silver mod wheel w/o tire: $57

 2 5/16 ball coupler or pintle hitch: N/C

Rubrail w/pipespools: $75

 5′ slide in ramps w/storage pockets in rear: N/C

 10,000 # drop leg jack (in lieu of standard): $75

 Gooseneck package: $1250

 12,000# GVWR:  Click to view 6 ton equipment trailer

 14,000# GVWR:  Click to view 7 ton equipment trailer

 102″ wide package w/drive over fenders: Click to view 102″ package

 10,000# GVWR Tilt bed:  Click to view 5 ton tilt bed trailer

 14,000# GVWR Tilt bed:  Click to view 7 ton tilt bed trailer

 Aluminum tongue mounted toolbox: $199 Click to view aluminum tongue box

Bolt-on spare tire mount: $50 Click to view spare mount

Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
