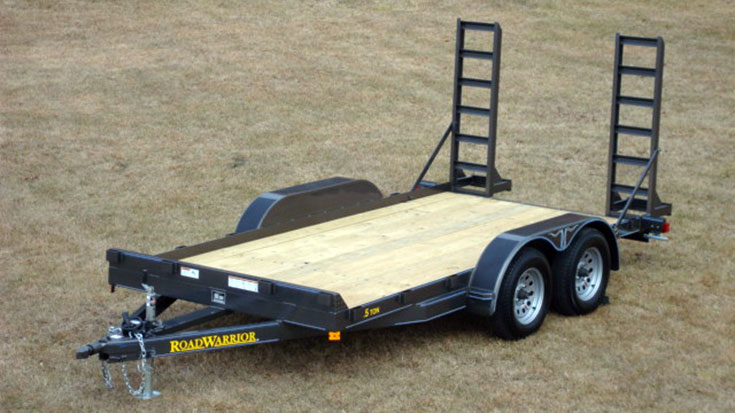

| Specifications - 3.5 Ton Skidsteer Trailer |
| Weight Rating: 7,000 LBS. GVWR w/evenly distributed load |
Axles:  Dexter axles, 1-3,500# idler, 1-3,500# electric brake, w/ez-lube, safety breakaway w/charger |
| Suspension: 4 leaf double eye springs |
| Tires & Wheels: ST205/75 D15 load range C tires, 5x5 bolt pattern silver mod wheels |
| Fenders: 9"x72" 16 ga. smooth teardrop w/stoneguard |
| Hitch: 2" 7,000# Bulldog w/safety chains |
| Jack: 2,000# setback, topwind |
| Structural: 5 X 3 X 1/4 frame, 5" channel tongue, 3" channel crossmembers (24" centers)
|
| Tie Downs: 10 stake pockets, 5" solid bump bar |
| Ramps: 3" channel, 5' high X 16" wide, stand up knee ramps |
| Electrical: All required lighting, license bracket w/light, wiring in conduit w/7 way connector |
| Floor: 2X8 treated yellow pine decking |
| Paint: Phenolic epxoy ester primer w/acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors - please call. |
Bed Size & Prices
Prices Current as of February, 2012
• 77" X 12' w/knee ramps: $2,159
• 77" X 14' w/knee ramps: $2,259
Some Options
• Spare ST 205/75 D15 LR "C" tire w/silver mod wheel: $109
• Spare silver mod wheel w/o tire: $45
• Second electric brake axle: $125
• 1/8" steel treadplate floor (in lieu of treated wood)$30/lin. foot
• 83" bed width (in lieu of 77"): $100
• 7,000# dropleg jack (in lieu of standard): $60
• 2 5/16 Bulldog ball coupler (in lieu of standard): $50
• Adjustable pintle hitch (in lieu of standard): $50
• 14 ga. treadplate heavy duty fenders: $100
• Aluminum tongue mounted toolbox: $199
• Poly tongue mounted toolbox: $99
Aluminum Tongue Mounted Toolbox |
Poly Tongue Mounted Toolbox |
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
