No ramps necessary!

Expoxy Ester Primer

Sealed Factory Wire Harness

Dexter Axles

Running Boards

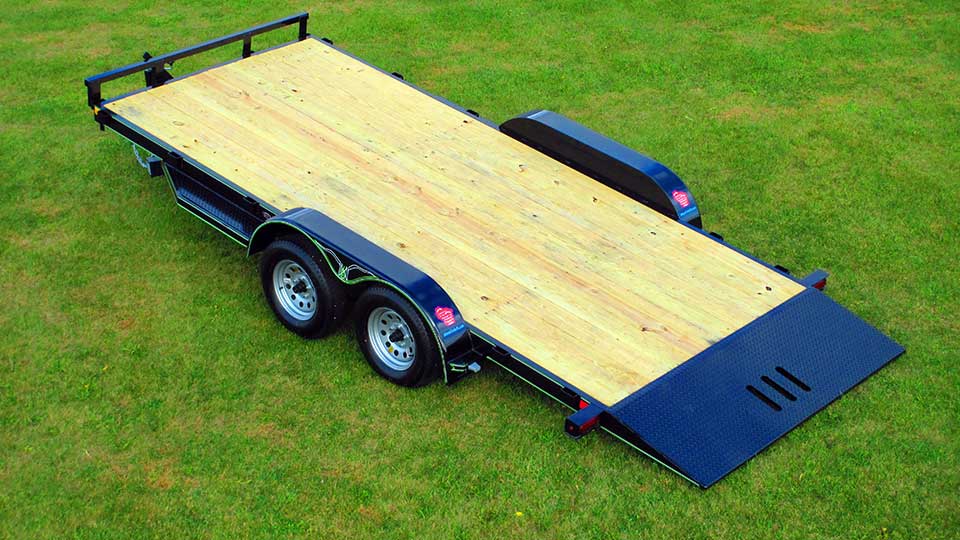

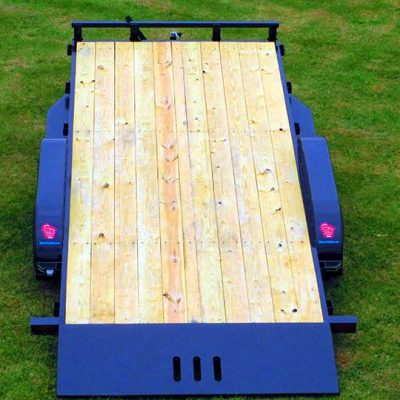

Car Hauler Tilt Bed

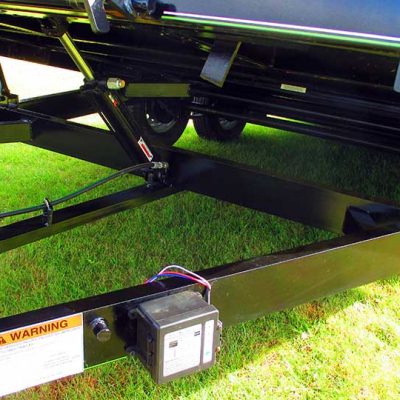

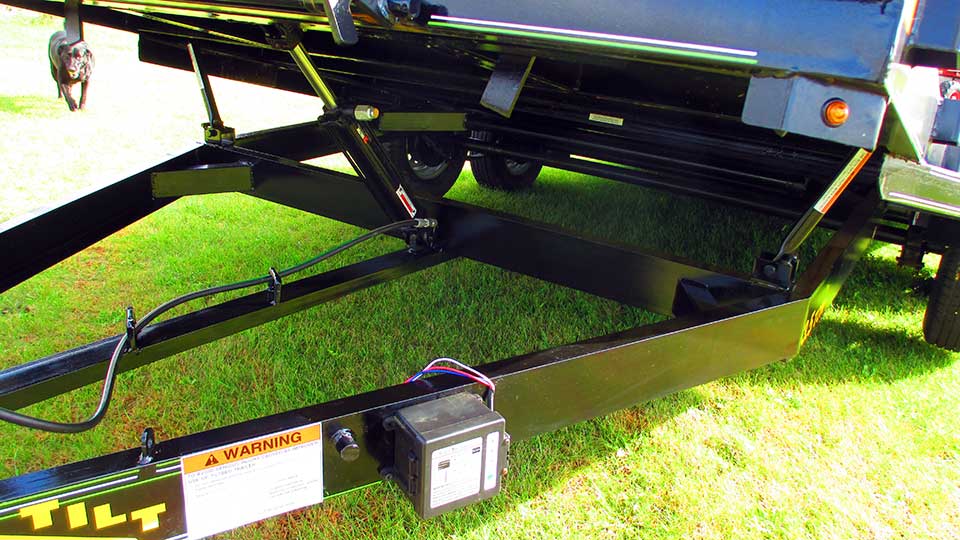

2 speed cylinder

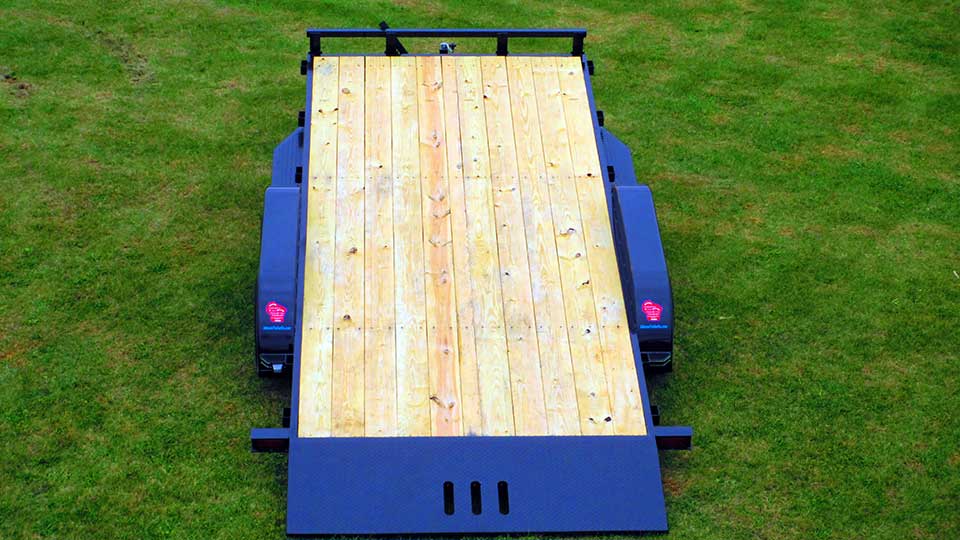

No Ramps

Bulldog Coupler

Setback Jack



Trailer may be shown with optional equipment.

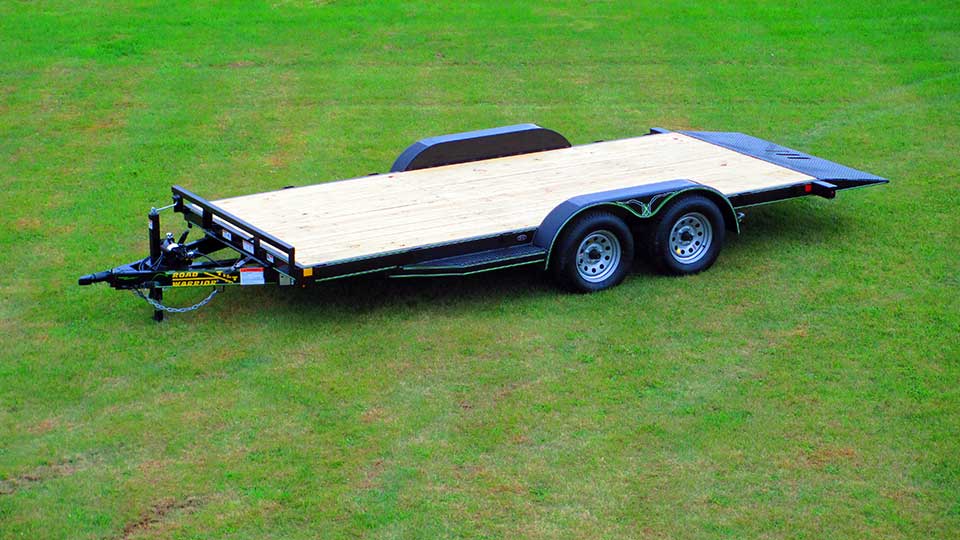

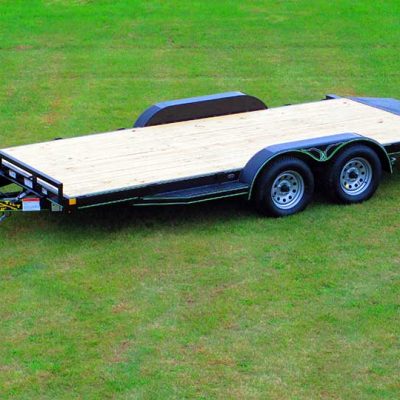

Road Warrior Tilt Trailer

Specifications – Car Hauler, Tilt Bed
Weight Rating: 7,000 LBS. GVWR w/evenly distributed load
Axles: 2- 3,500# electric brakes, w/ez-lube, safety breakaway w/charger
Suspension: 4 leaf double eye springs

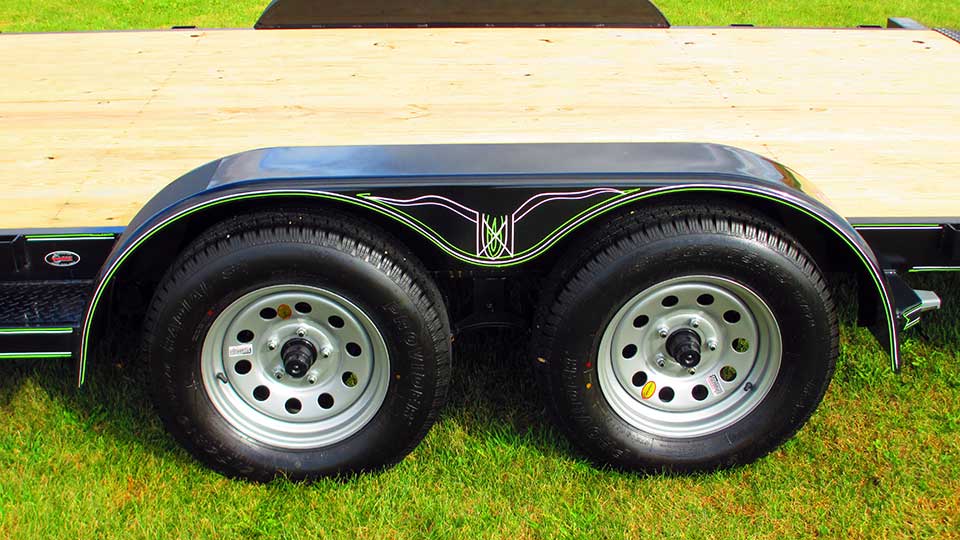

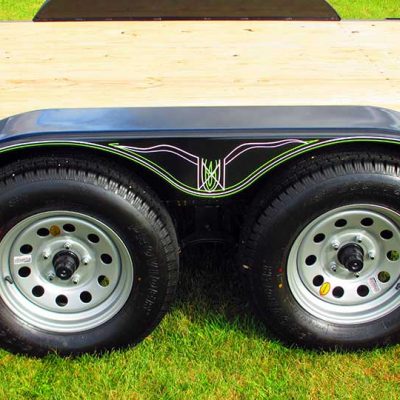

Tires & Wheels: ST 205/75 R15 load range C tires, 5×5 bolt pattern silver mod wheels
Fenders: 9″x72″ 16 ga. smooth teardrop w/stoneguard
Hitch: 2″ 7,000# Bulldog w/safety chains
Jack: 2,000# topwind Rapid Jack

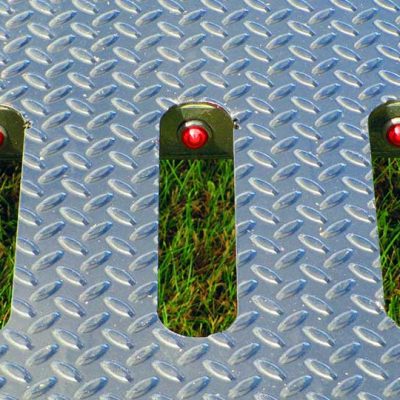

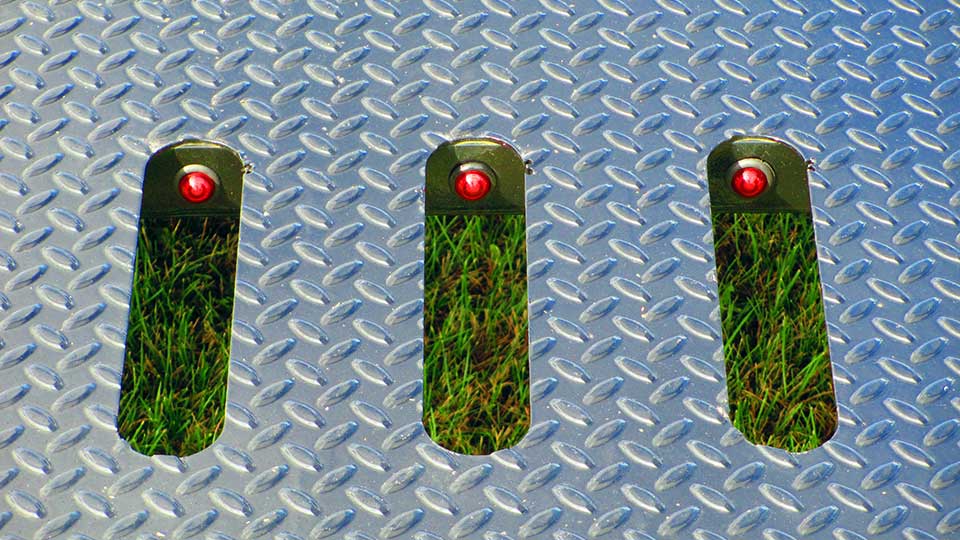

Structural: 5″ channel frame & tongue, 3″ channel crossmembers (24″ centers), 1/8″ treadplate tail section & running board steps

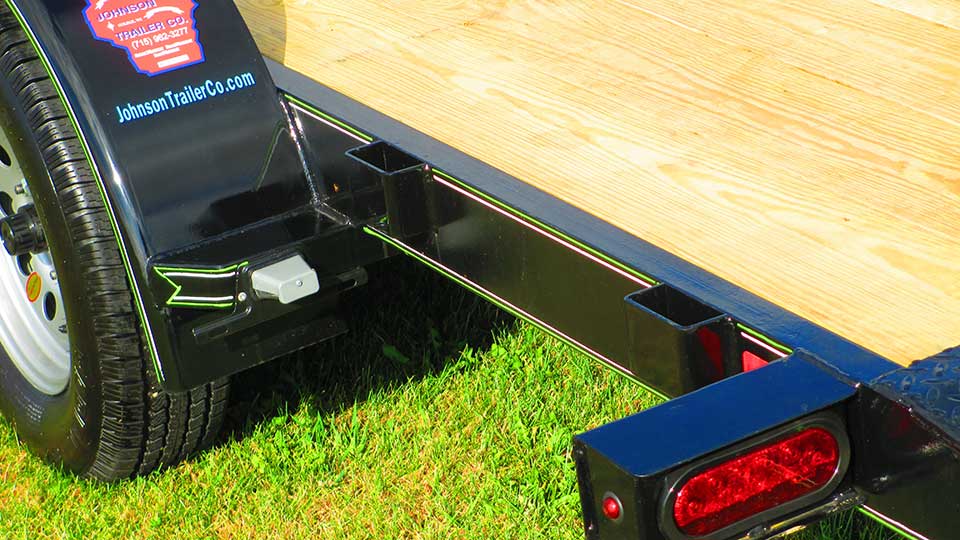

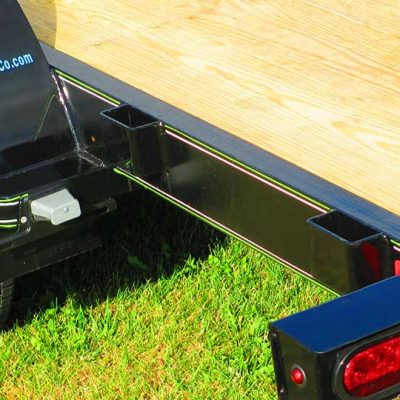

Tie Downs: 14 stake pockets

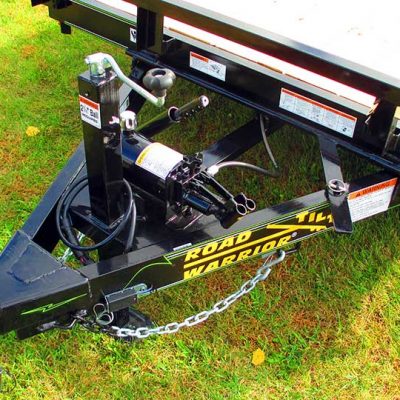

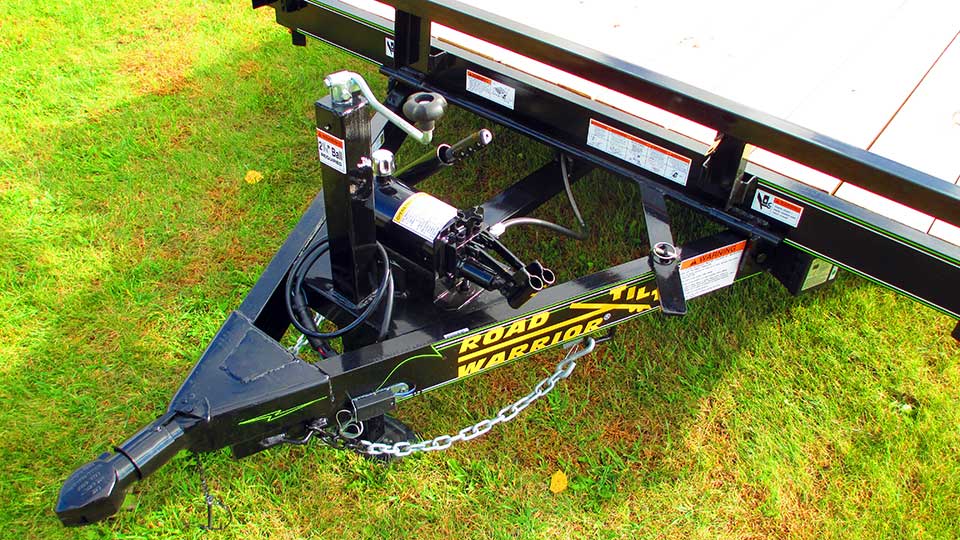

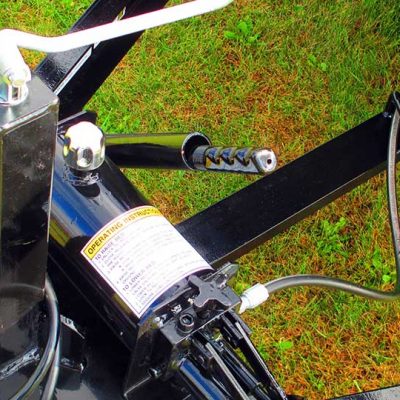

Tilt: Special 2 speed hand hydraulic pump w/cylinder, pump handle storage, special cam lock bed latch system
Electrical: All required lighting, LED lights, license bracket w/light, sealed factory wiring harness w/7 way connector
Paint: Phenolic epxoy ester primer w/acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Silver Metallic, Bright Blue Metallic, Emerald Green Metallic, Federal Yellow, Bright Safety Yellow, Safety Orange (Some custom colors – please call)



Bed Size & Prices
Prices Current as of December, 2016

 83″ X 18′: $3,310

 83″ X 20′: $3,410

 83″ X 20′ 5 ton tilt equipment:  Click to view 5 ton tilt bed equipment trailer

 83″ X 22′ 7 ton tilt equipment:  Click to view 7 ton tilt bed equipment trailer

printable-brochure-button-250px

Some Options

 Now standard with LED lights

 Spare 205/75 R15 LR “C” tire w/silver mod wheel: $135

 Spare silver mod wheel w/o tire: $45

 Second electric brake: N/C (Incl. as standard equipment)

 7,000# drop leg jack (in lieu of standard): $60

 2 5/16 Bulldog ball coupler (in lieu of standard): $50

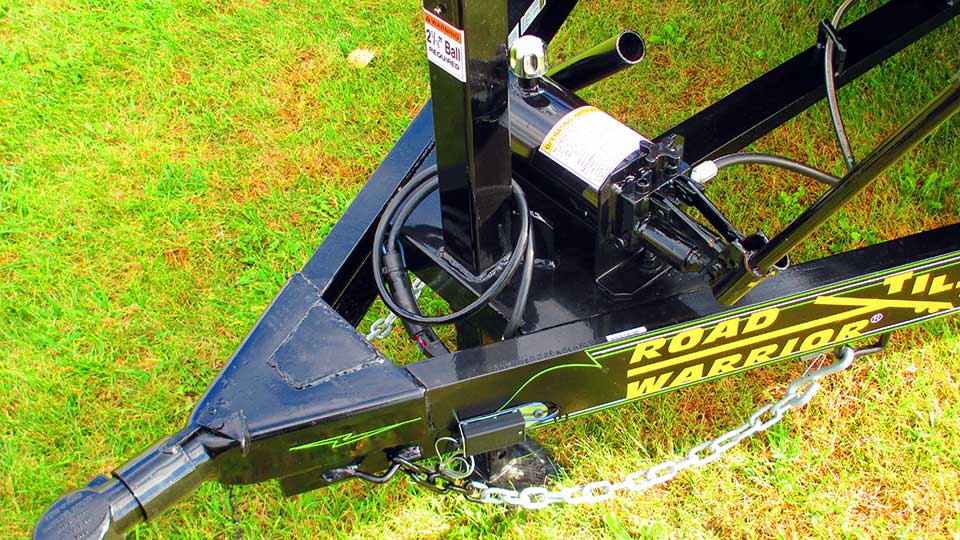

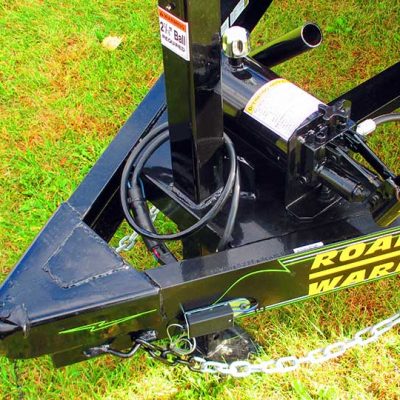

 Electric/hydraulic lift (in lieu of hand operated): $525

 14 ga. treadplate heavy duty fenders: $100

 102″ wide package w/drive over fenders: $399  Click to view tilt bed 102 package

 10,000# GVWR:   Click to view 5 ton tilt bed equipment trailer

Ramp Extenders (for low clearance vehicles): $149 Click to view ramp extenders

Bolt-on spare tire mount: $50 Click to view spare mount

Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
