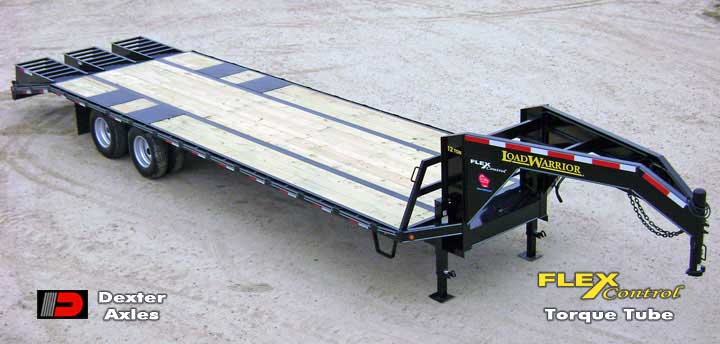

| Specifications - 12 Ton Gooseneck Equipment Trailer |
| Weight Rating: 24,000 LBS. GVWR w/evenly distributed load |
Axles: 2  Dexter dual wheel axles, self-adjusting electric brakes, oil bath hubs, safety breakaway w/charger |
| Suspension: 5-leaf slipper springs |
| Tires & Wheels: ST 235/80 R16 Load range E radial tires, 8 X 6.5 bolt pattern silver dually wheels, mud flaps |
| Hitch: 2 5/16 adjustable gooseneck or pintle, H.D. safety chains |
| Jack: 2 - 10,000# dropleg |
| Structural: Hi-Tensile 12" X 19# I-beam main frame, 12" X 22# I-beam main frame on 38' & 40 'lengths, neck uprights are same I-beam as main frame, 10" channel neck, 3" channel crossmembers pierced though frame (18" centers) |
 Feature: 5 1/2" torque tube between I-beams from front of trailer to front axle for improved handling and sway control
|

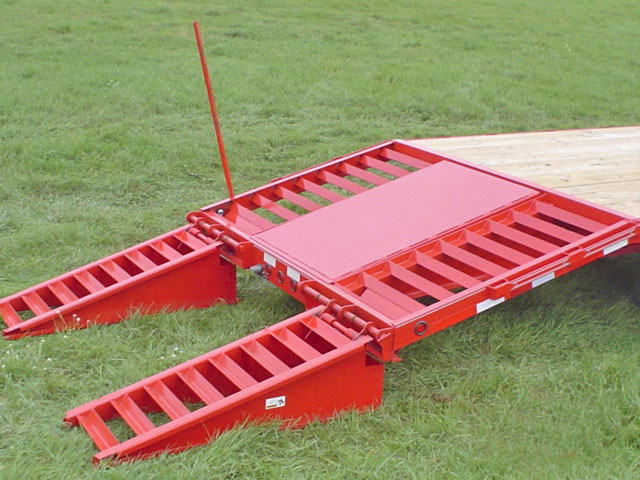

| Dove tail & Ramps: 5' self-cleaning dove tail w/2 spring assist, double hinged, floor level flip over ramps
|
| Tie Downs: Stake pockets and rub rail
with pipe spools between stake pockets |
| Special Features: Lockable front toolbox, see-thru tubing headache rack, front steps w/grab handles on both sides, spare tire rack in neck |
| Electrical: All required lighting, sealed beam lights w/mid-turn signals, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape |
| Floor: 2 X 8 treated yellow pine decking w/ 1/8" treadplate steel pans over tires, I-beam frame flush with deck lumber |
Paint: Phosphate etched pretreatment with  high performance primer and acrylic finish |
| Colors Available: Black, Victory Red, Charcoal Metallic, Arizona Biege, Bright Blue Metallic, Amazon Green, Bright Safety Yellow, Cat Yellow |
INTRODUCTORY PRICING FOR A LIMITED TIME!
Note: Trailer length includes dove tail. (Example: 25' trailer has 20' flat and 5' dove tail.)
Bed Size & Prices
Prices Current as of February, 2012
• 102" X 20' w/5' Dove & Ramps: $7,320
• 102" X 22' w/5' Dove & Ramps: $7,320
• 102" X 24' w/5' Dove & Ramps: $7,320
• 102" X 25' w/5' Dove & Ramps: $7,420
• 102" X 26' w/5' Dove & Ramps: $7,495
• 102" X 28' w/5' Dove & Ramps: $7,645
• 102" X 30' w/5' Dove & Ramps: $7,895
• 102" X 32' w/5' Dove & Ramps: $8,045
• 102" X 34' w/5' Dove & Ramps: $8,295
• 102" X 36' w/5' Dove & Ramps: $8,545
• 102" X 38'* w/5' Dove & Ramps: $8,995
• 102" X 40'* w/5' Dove & Ramps: $9,245
* With 12" X 22# I-beam main frame & easy adjust axle alignment feature
Note: Pintle hitch tag trailer is the same price as a gooseneck.
Some Options
• Spare wheel w/o tire: $99
• Spare wheel w/tire: $195

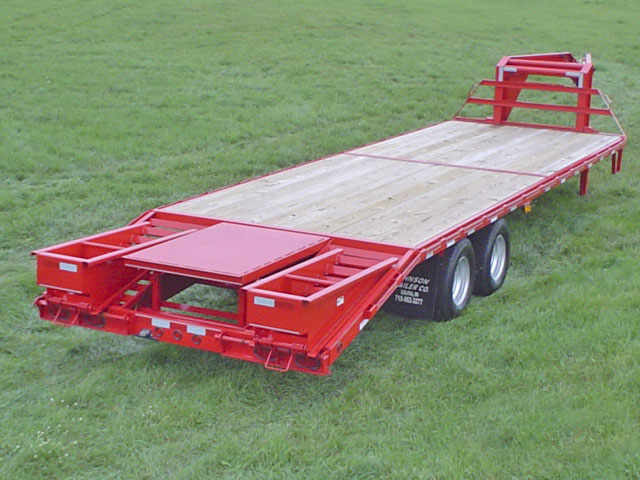

• Pop-up dove tail center section: $250
• Third flip over floor level ramp: $250
• 8' X 8' top deck on neck w/stake pockets and rub rail: $995
• Pair 2 speed jacks (in lieu of single speed): $395
• Adjustable pintle hitch (in lieu of gooseneck): N/C
• King pin adapter for gooseneck (in lieu of gooseneck ball coupler): $175
• LED lights (except mid-turns): $115
• 36" X 15" X 15" underbody toolbox: $192
For heavier axles w/frame upgrades - please call us.
Custom built trailers and other options are available. Call us with your needs.
Note: The price you see is the cash price!
F.O.B. Colfax, WI
(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
|
