A Load Warrior® Gooseneck Trailer is not just any trailer.

Our quality material and components are combined with pride in workmanship.

CHECK OUT ALL THE FEATURES AND ADVANCED DESIGN ON OUR 12 TON GOOSENECK TRAILER

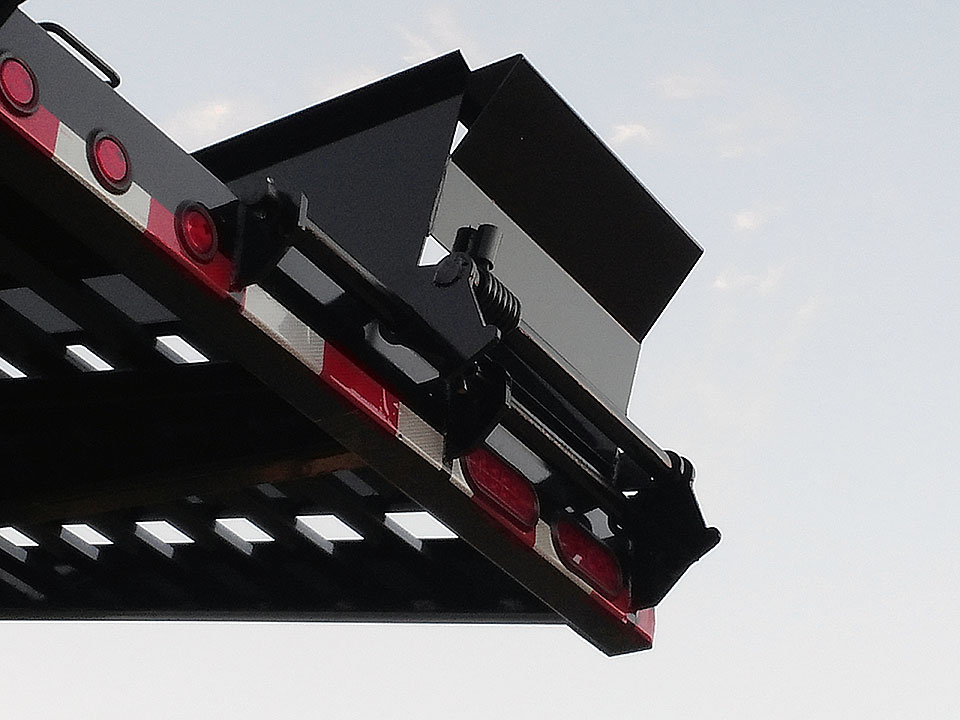

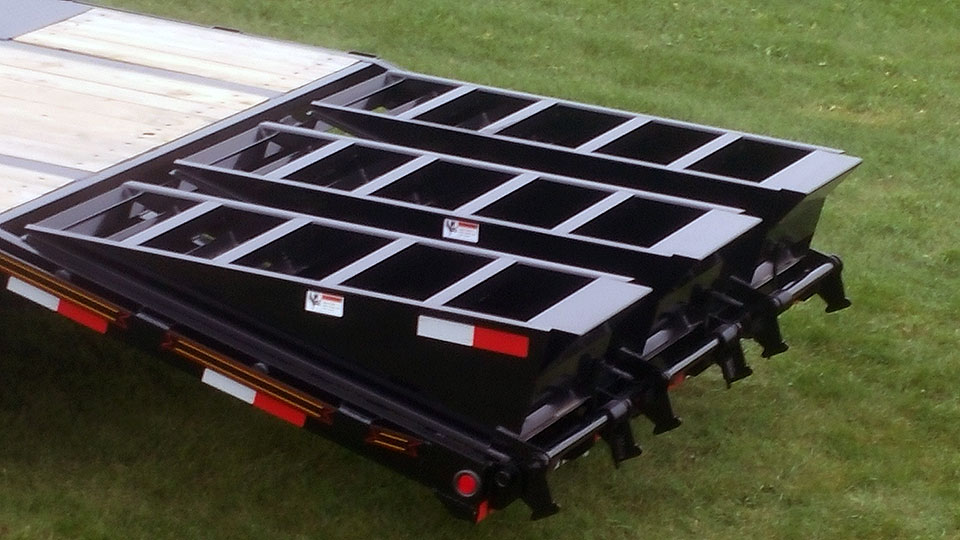

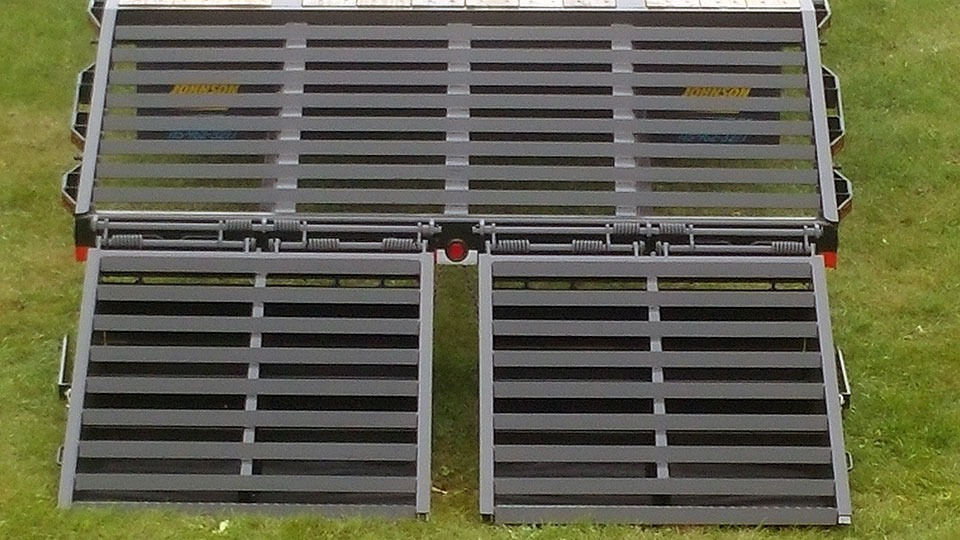

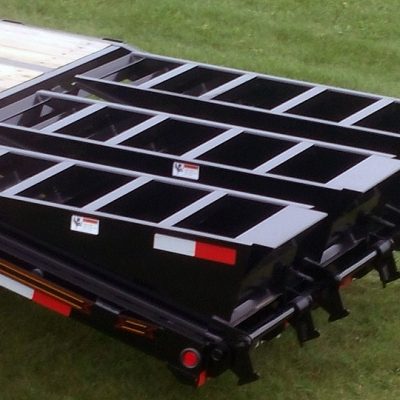

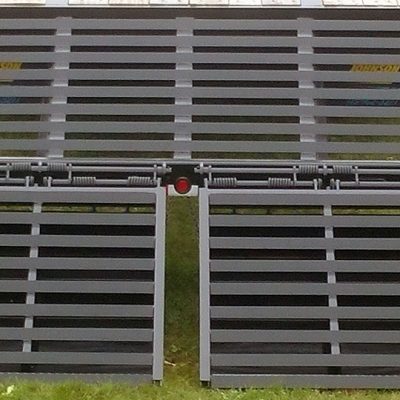

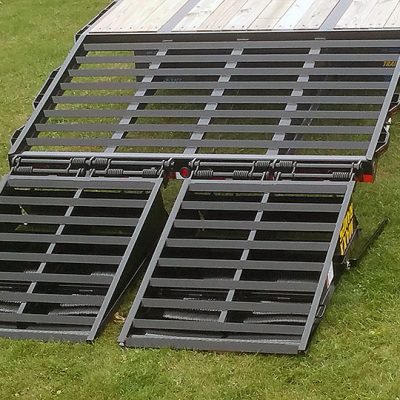

Spring Assisted Ramps

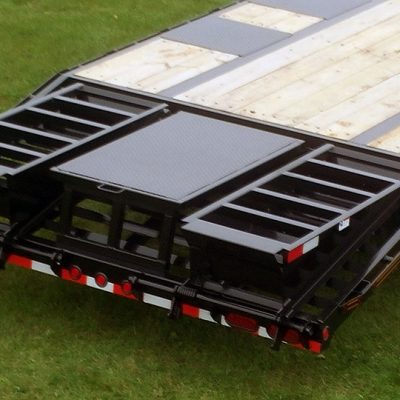

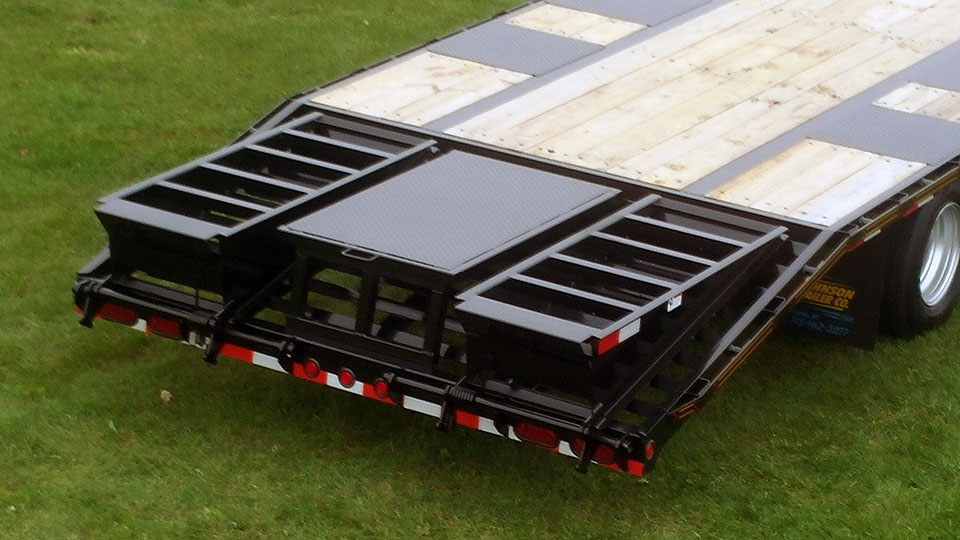

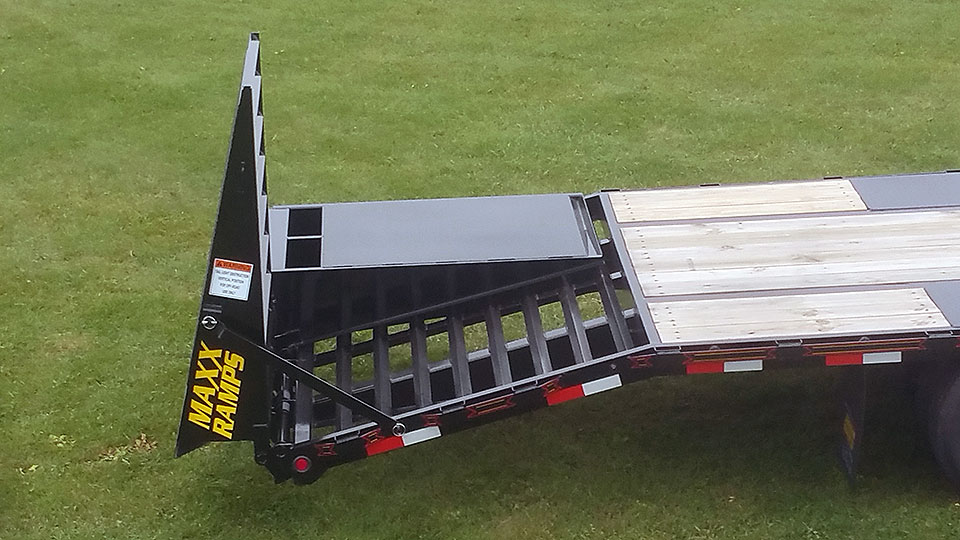

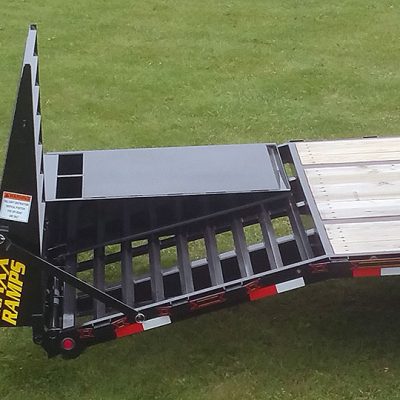

Pop Up Third Ramp

Pipe Spools

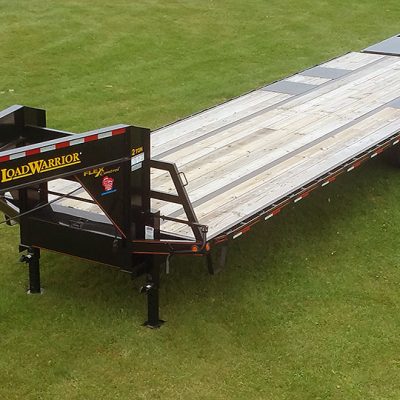

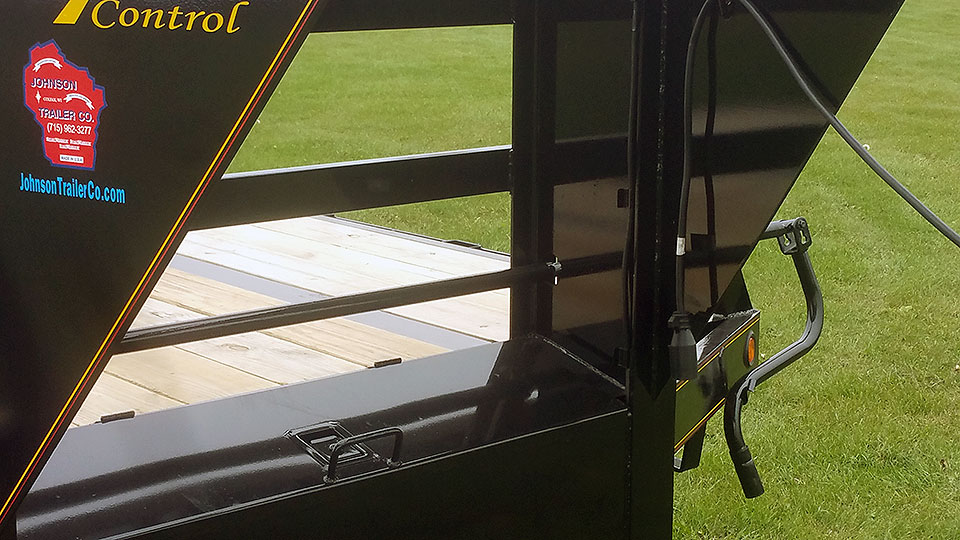

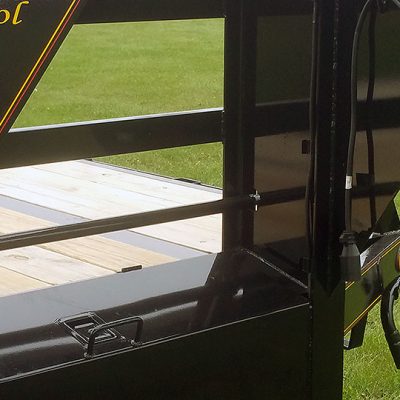

See Thru Headache Rack

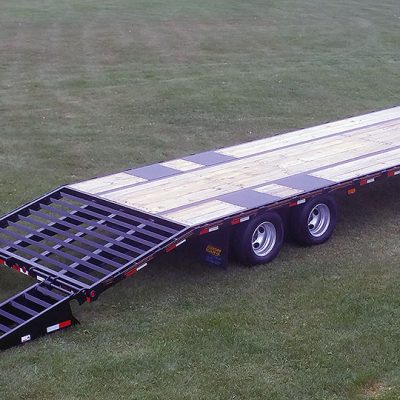

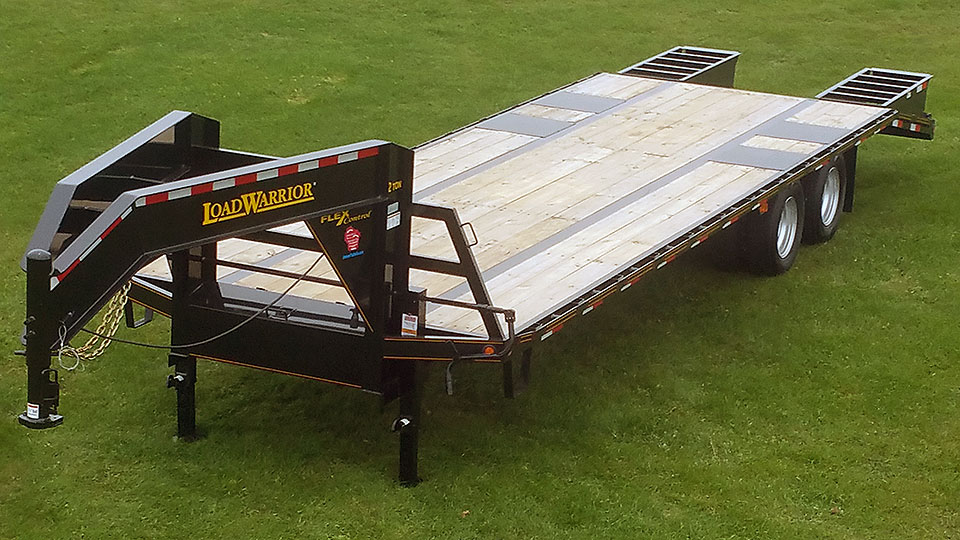

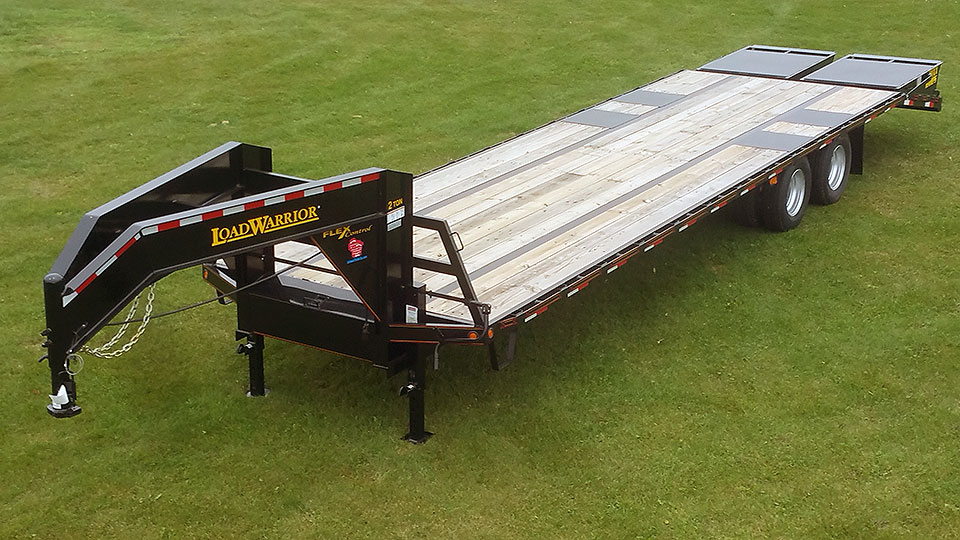

12 Ton Gooseneck Trailer



33 Inch Deck Height

Hi-Tensile I Beam

Sealed Factory Wire Harness

Lockable Toolbox

Trailer may be shown with optional equipment.
Load Warrior Trailer
Specifications – 12 Ton Gooseneck Equipment Trailer
Weight Rating: 24,000 LBS. GVWR w/evenly distributed load

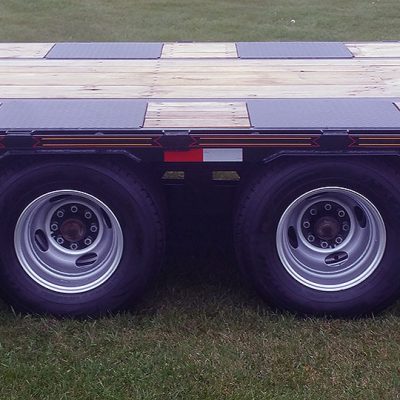

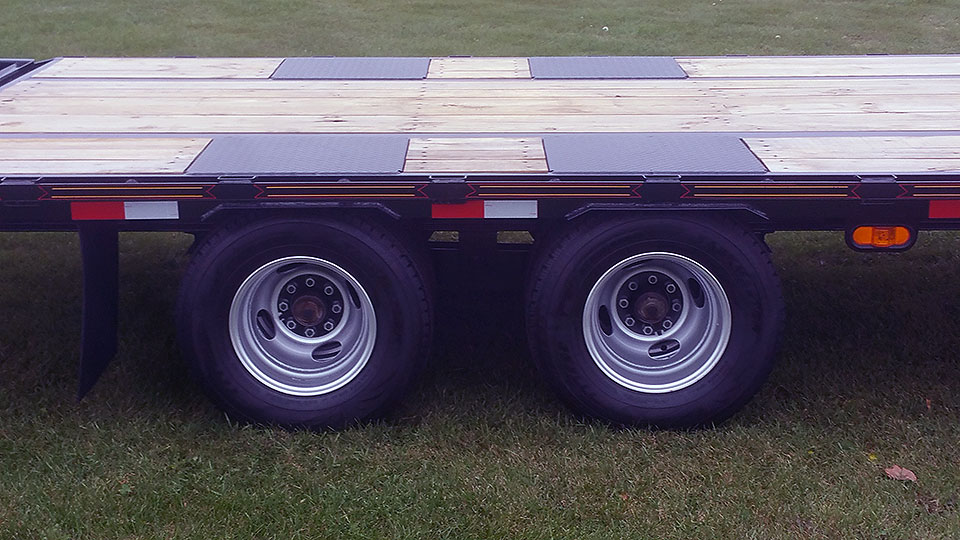

Axles: 2 Dexter AxlesDexter dual wheel axles, self-adjusting electric brakes, oil bath hubs, safety breakaway w/charger
Suspension: 5-leaf slipper springs
Tires & Wheels: ST 235/80 R16 Load range E radial tires, 8 X 6.5 bolt pattern silver dually wheels, mud flaps

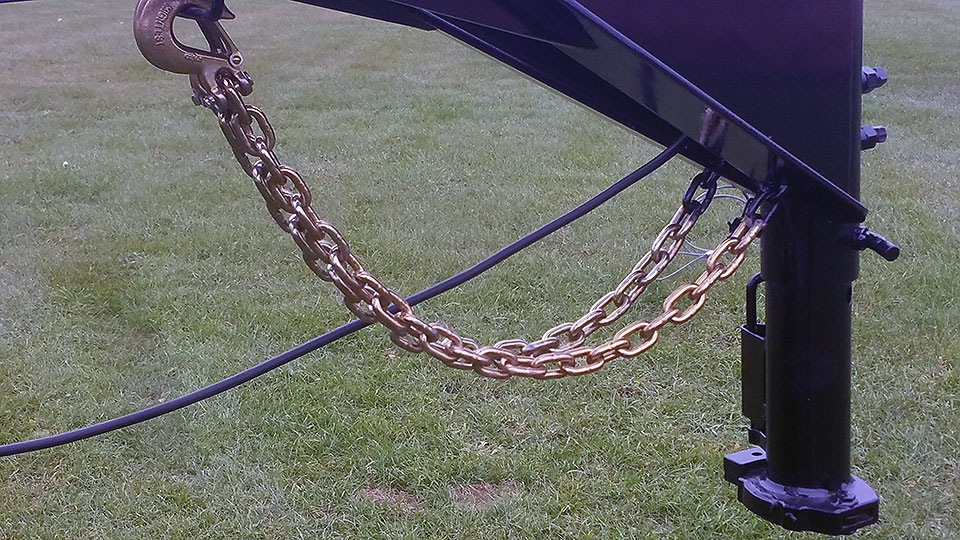

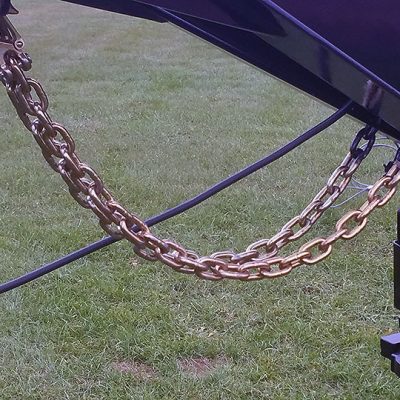

Hitch: 2 5/16 adjustable gooseneck or pintle, H.D. safety chains
Jack: 2 – 10,000# dropleg
Structural: Hi-Tensile 12″ X 19# I-beam main frame and neck, 12″ X 22# on 38′ & 40′ lengths, 3″ channel cross members (16″ centers) pierced though frame, 5″ channel lace rail

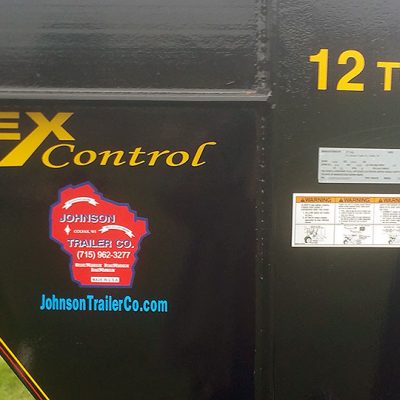

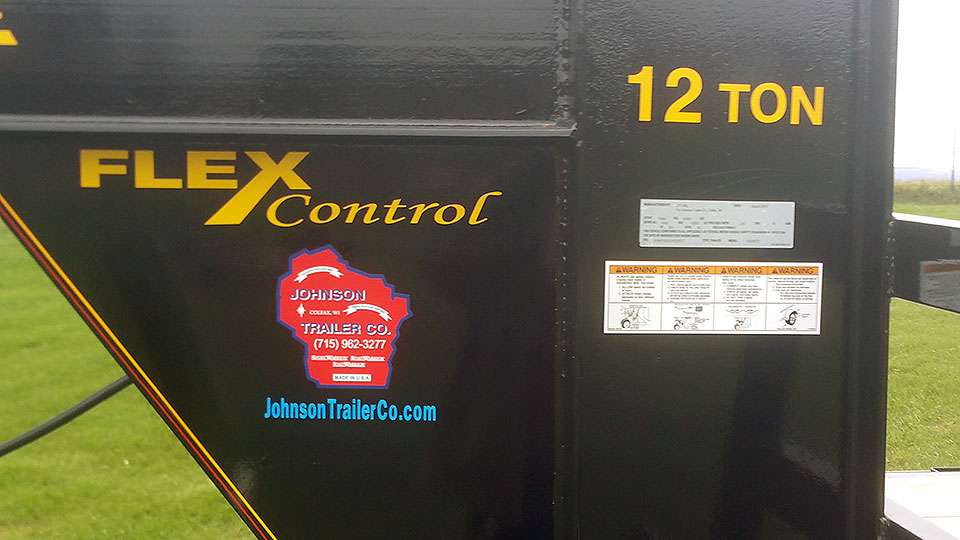

Feature: 5 1/2″ torque tube between I-beams from front of trailer to front axle for improved handling and sway control  Flex Control

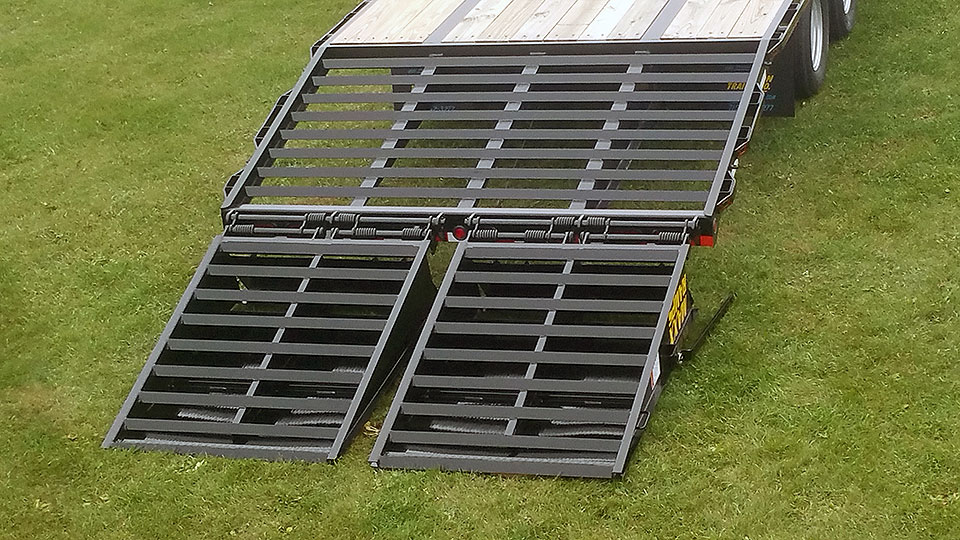

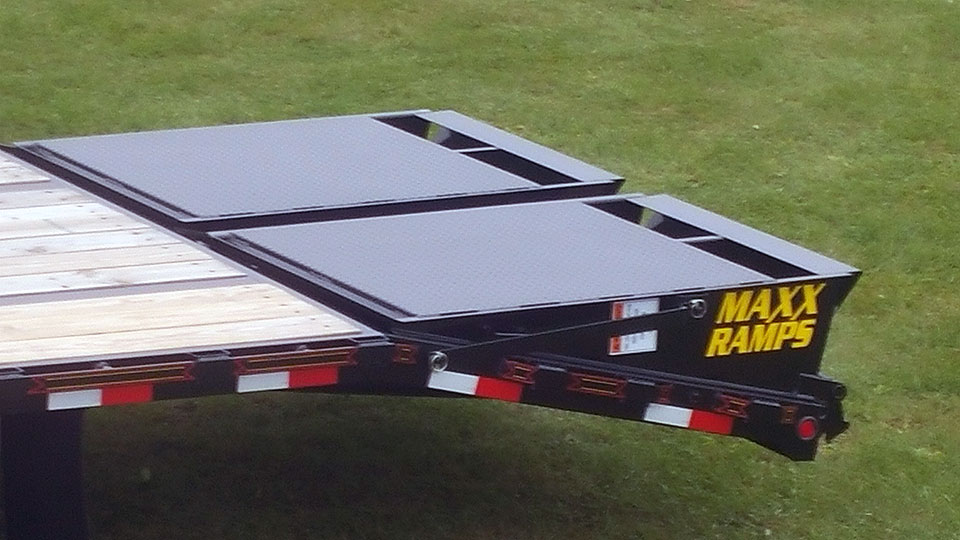

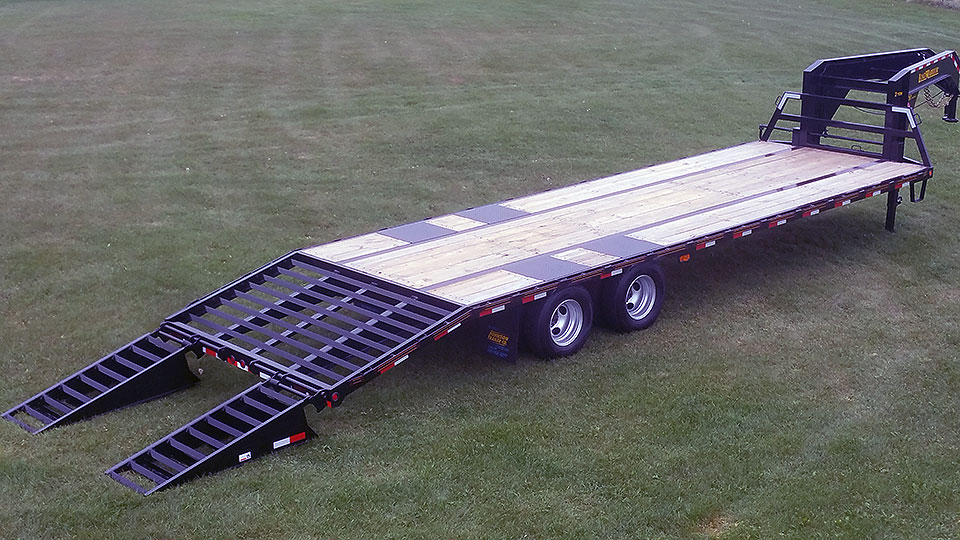

Dove tail & Ramps: 5′ self-cleaning dove tail w/2 spring assist, double hinged, floor level flip over ramps
Tie Downs: Stake pockets and rub rail
with pipe spools between stake pockets

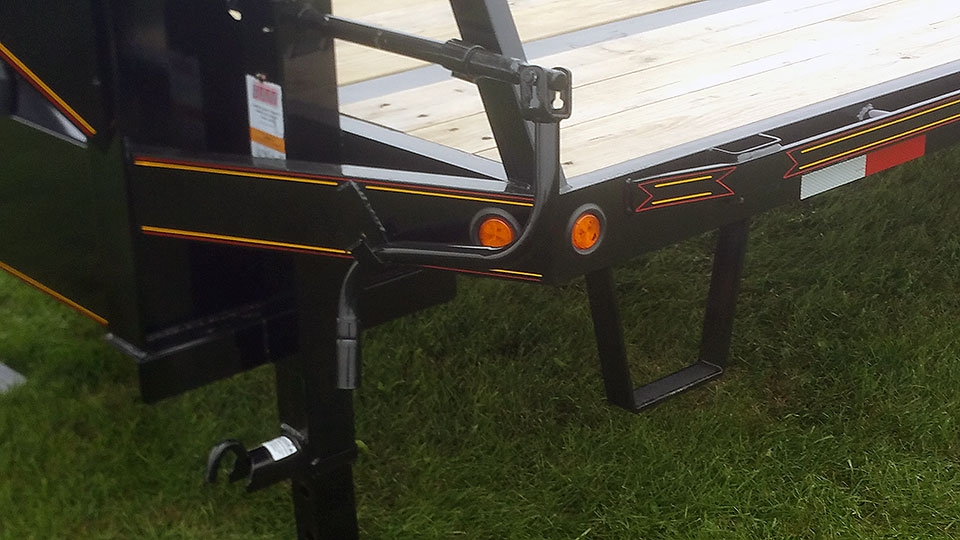

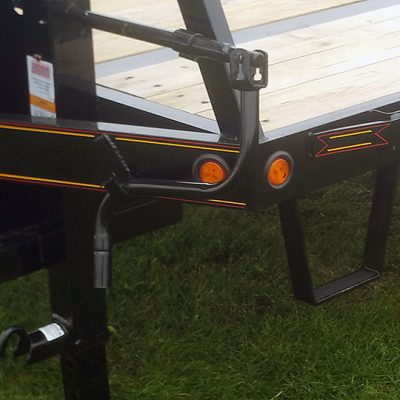

Special Features: Lockable front toolbox, see-thru tubing headache rack, front steps w/grab handles on both sides, spare tire rack in neck

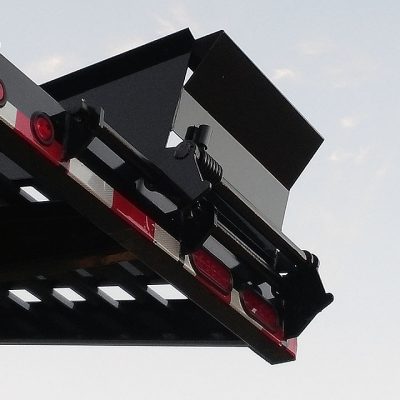

Electrical: All required lighting, sealed beam lights w/mid-turn signals, license bracket w/light, sealed factory wiring harness w/7 way connector, microprismatic reflective tape

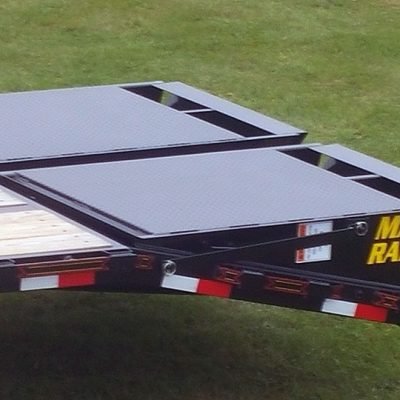

Floor: 2 X 8 treated yellow pine decking w/ 1/8″ treadplate steel pans over tires, I-beam frame flush with deck lumber
Paint: Phosphate etched pretreatment withValspar high performance primer and acrylic finish
Colors Available: Black, Victory Red, Charcoal Metallic, Arizona Biege, Bright Blue Metallic, Amazon Green, Bright Safety Yellow, Cat Yellow

Note: Gooseneck trailer length includes dove tail. (Example: 25′ trailer has 20′ flat and 5′ dove tail.)

 Bed Size & Prices
Prices Current as of December, 2016

 102″ X 20′ w/5′ Dove & Ramps: $7,620

 102″ X 22′ w/5′ Dove & Ramps: $7,620

 102″ X 24′ w/5′ Dove & Ramps: $7,620

 102″ X 25′ w/5′ Dove & Ramps: $7,720

 102″ X 26′ w/5′ Dove & Ramps: $7,795

 102″ X 28′ w/5′ Dove & Ramps: $7,945

 102″ X 30′ w/5′ Dove & Ramps: $8,145

 102″ X 32′ w/5′ Dove & Ramps: $8,345

 102″ X 34′ w/5′ Dove & Ramps: $8,695

 102″ X 36′ w/5′ Dove & Ramps: $8,845

 102″ X 38’* w/5′ Dove & Ramps: $9,345

 102″ X 40’* w/5′ Dove & Ramps: $9,445

* With 12″ X 22# I-beam main frame & easy adjust axle alignment feature

Note: Pintle hitch tag trailer is the same price as a gooseneck.

printable-brochure-button-250px

Some Gooseneck Trailer Options

 Spare wheel w/o tire: $99

 Spare wheel w/tire: $195

 Pop-up dove tail center section: $250

 Third flip over floor level ramp: $250

6′ X 8′ top deck on neck w/stake pockets and rub rail: $995

  Pair 2 speed jacks (in lieu of single speed): $395

  Adjustable pintle hitch (in lieu of gooseneck): N/C

 King pin adapter for gooseneck trailers (in lieu of gooseneck trailer ball coupler): $175

 LED lights (except mid-turns): $115

 36″ X 15″ X 15″ underbody toolbox: $192

Stake pocket D-rings: $20 each for 6 or more. $25 each for less than 6. Click to view stake pocket D-rings

For heavier axles w/frame upgrades – please call us

Custom built trailers and other options are available. Call us with your needs.


Note: The price you see is the cash price!
F.O.B. Colfax, WI

(If payment option is credit card, please call ahead for details.)
No additional freight or other hidden charges!
(5.5% Wisconsin sales tax applies to all purchases)
